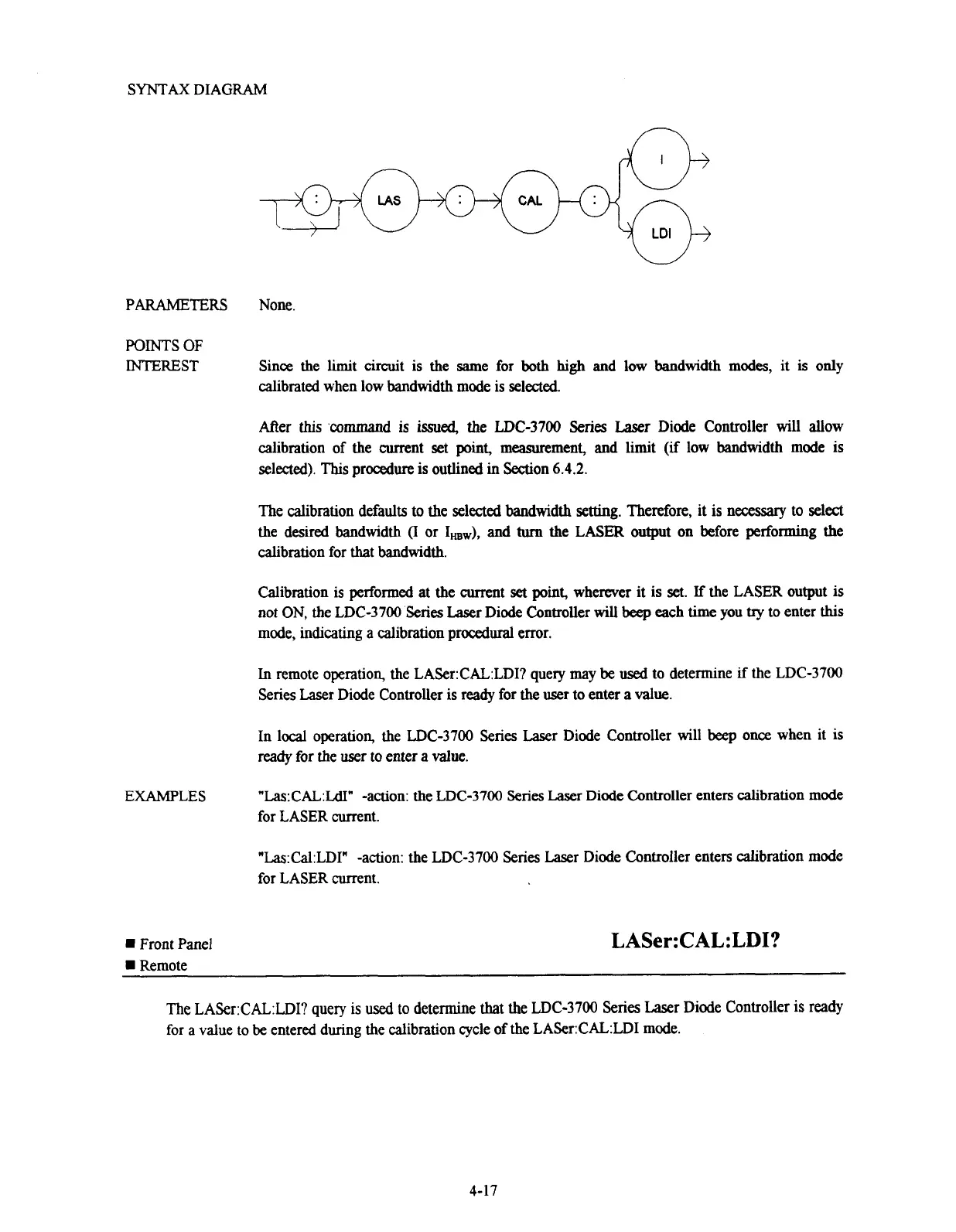

SYNTAX DIAGRAM
PARAMETERS None.
POINTS OF
INTEREST
Since the limit circuit is the same for both high and low bandwidth modes, it is only
calibrated when low bandwidth mode is selected.
AAer this .command is
issued, the LDC-3700 Series Laser Diode Controller will allow
calibration of the current set
point, measurement, and limit (if low bandwidth mode is
selected). Ths procedure
is outlined in Section 6.4.2.
The calibration defaults to the selected bandwidth setting. Therefore, it is necessary to select
the desired bandwidth
(I or I,,), and turn the LASER output on before performing the
calibration for that bandwidth.
Calibration is performed at the current
set point, wherever it is set. If the LASER output is
not ON, the LDC-3700 Series Laser Diode Controller will beep each time you try to enter this
mode, indmting a calibration procedural error.
Ln remote operation, the LASer:CAL:LDI? query may be used to determine if the LDC-3700
Series Laser Diode Controller is ready for the user to enter a value.
In local operation, the LDC-3700 Series Laser Diode Controller will beep once when it is
ready for the user to enter a value.
EXAMPLES
"Las:CAL:W" -action: the LDC-3700 Series Laser Diode Controller enters calibration mode
for LASER current.
"Las:Cal:LDIW
-action: the LDC-3700
Series Laser Diode Controller enters ahbration mode
for LASER current.
H Front Panel LASer:CAL:LDI?
H Remote
The LASer:CAL:LDI? query is used to determine that the LDC-3700 Series Laser Diode Controller is ready
for
a value to be entered during the calibration cycle of the LASer:CAL:LDI mode.
