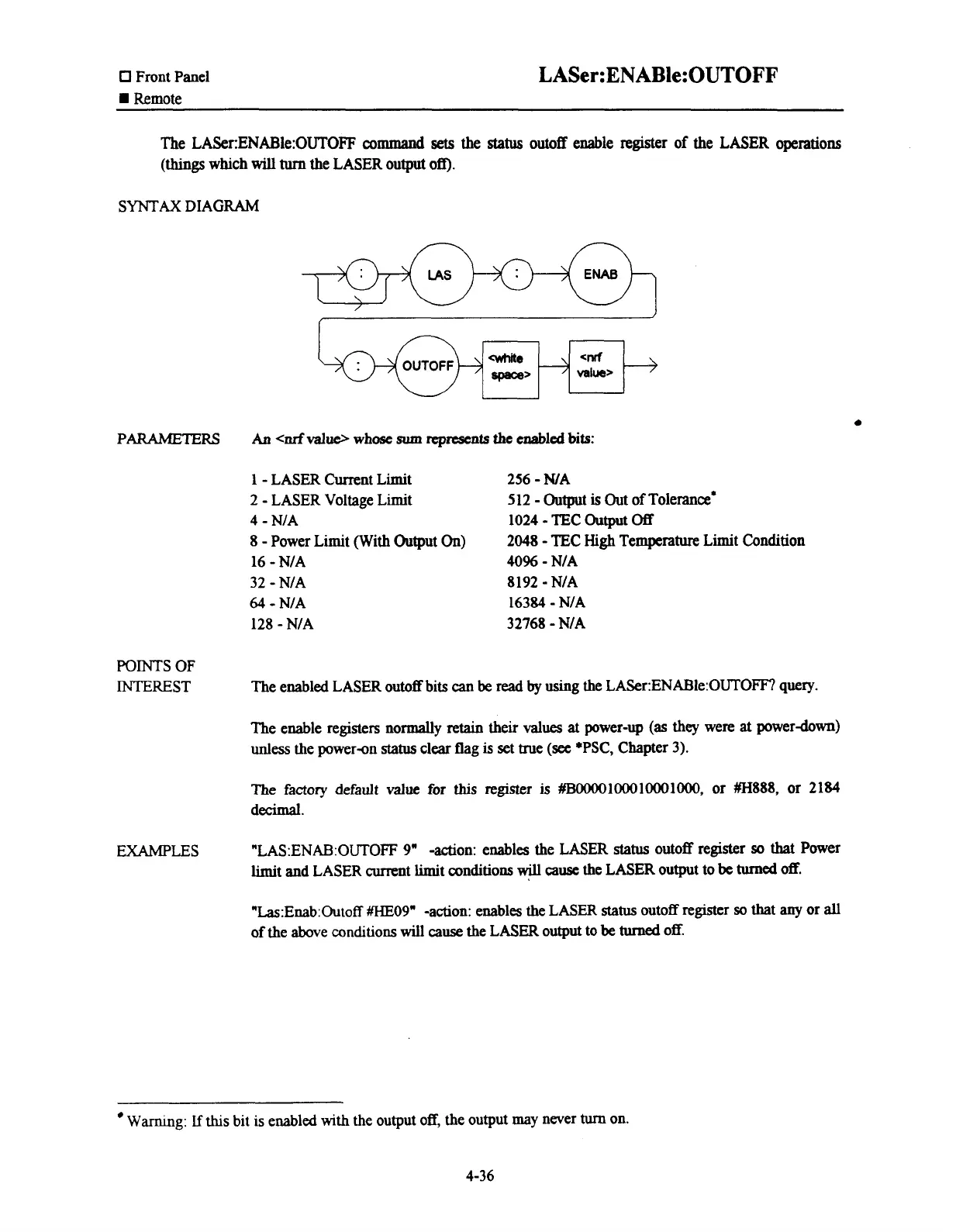

ILX Lightwave LDC-3700 Series User Manual

0 Front Panel
r Remote
The LASer:ENABle:OUTOF'F
command sets the status outoff enable register of the LASER operations
(things which will turn the LASER output off).
SYNTAX
DIAGRAM
OUTOFF
space'
PARAMETERS
An <nrf value> whose sum rcpnsents the enabled bits:
1 - LASER Current Limit
2 - LASER Voltage Limit
4 - NIA
8 - Power Limit (With Output On)
16 - NIA
32 - NIA
64 - NIA
128 - NIA
256 - WA
512 - Output is Out of Tolerance*
1024 - TEC Output Off
2048 - TEC High Temperature Limit Condition
40% - NlA
8192 - NIA
16384 - N/A
32768 - NIA
POINTS
OF
INTEREST
The enabled LASER outoff
bits can be read by using the LASer:ENABle:OUTOFF? query.
The enable registers normally retain their values at power-up (as they were at powerdown)
unless the powerqn status clear flag is set true (see *PSC, Chapter 3).
The factory default value for this register is #B0000100010001000, or #H888, or 2184
decimal.
EXAMPLES
"LAS:ENAB:OUTOFF
9" -action: enables the LASER status outoff register so that Power
limit and LASER current limit conditions
will caw the LASER output to be turned off.
"Las:Enab:Outoff #HE09" -action: enables the LASER status outoff register so that any or all
of the above conditions will cause the LASER output to be turned off.
Warning: If thls bit is enabled with the output off, the output may never turn on.
