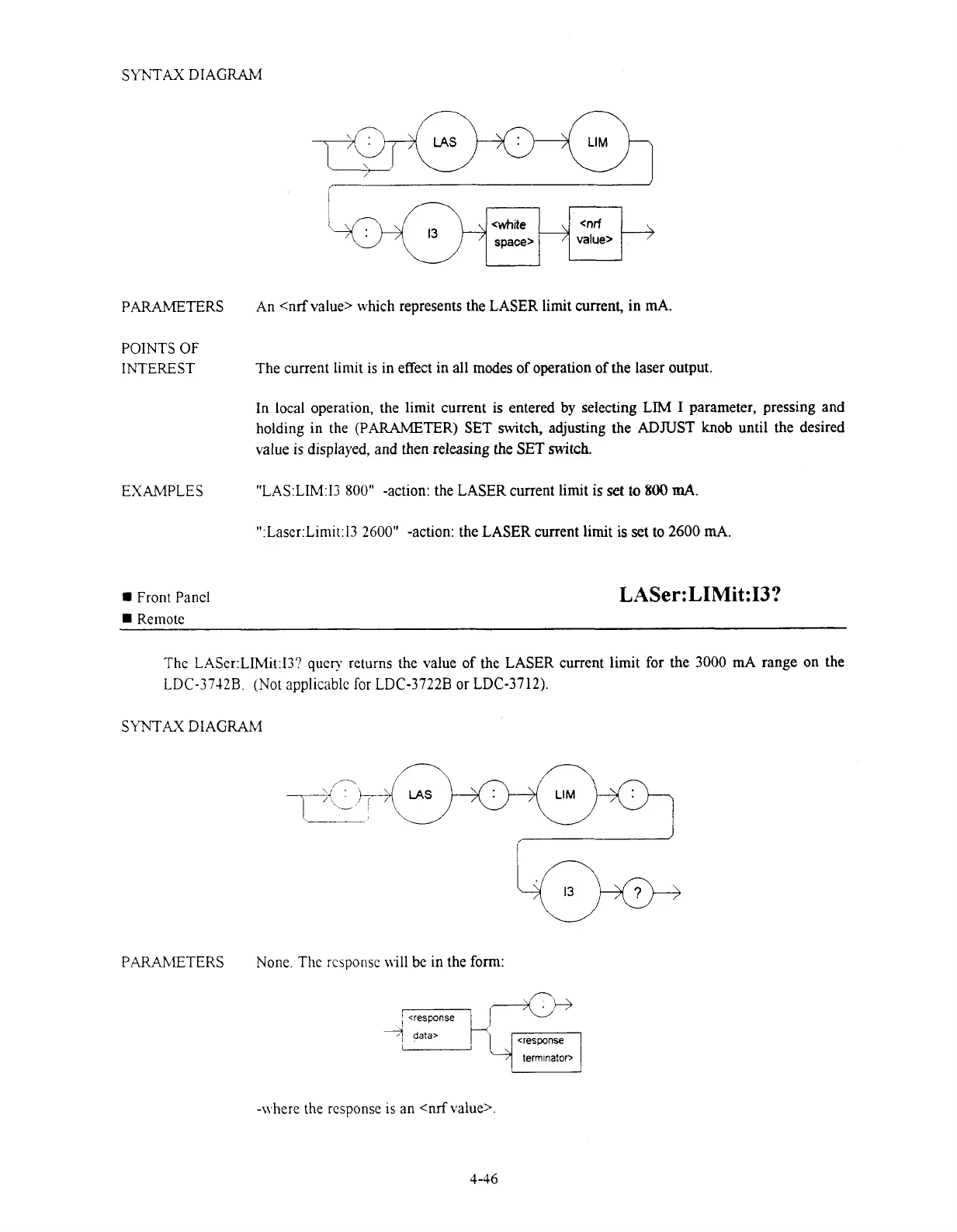

SYNTAX DIAGRAM
PARAMETERS
POINTS OF
INTEREST
EXAMPLES
Front Pancl
Remote
An <nrfvalue> which represents the LASER limit current, in
mA.
The current limit is in effect in all modes of operation
of
the laser output.
In local operation, the limit current is entered
by
selecting LIM
I
parameter, pressing and
holding in the (PARAMETER)
SET
switch,
adjusting the
ADJUST
knob until the desired
value
is
displayed, and then releasing the
SET
switch.
"LAS:LIM:I3 800" -action: the LASER current limit
is
set
to
800
a.
":Laser:Lirnit:I3 2600" -action: the LASER current limit is set to 2600
mA.
The
LASer:LIMit:I3? quen returns the value of the LASER current limit for the 3000
mA
range on the
LDC-3712B. (Not applicable
for
LDC-3722B or LDC-3712).
SYNTAX
DIAGRAM
PARAMETERS
None. The rcsporlse
1\41
be in the form:
resose
1
-where
the
response
is
an
<nrf
value.
4-46
