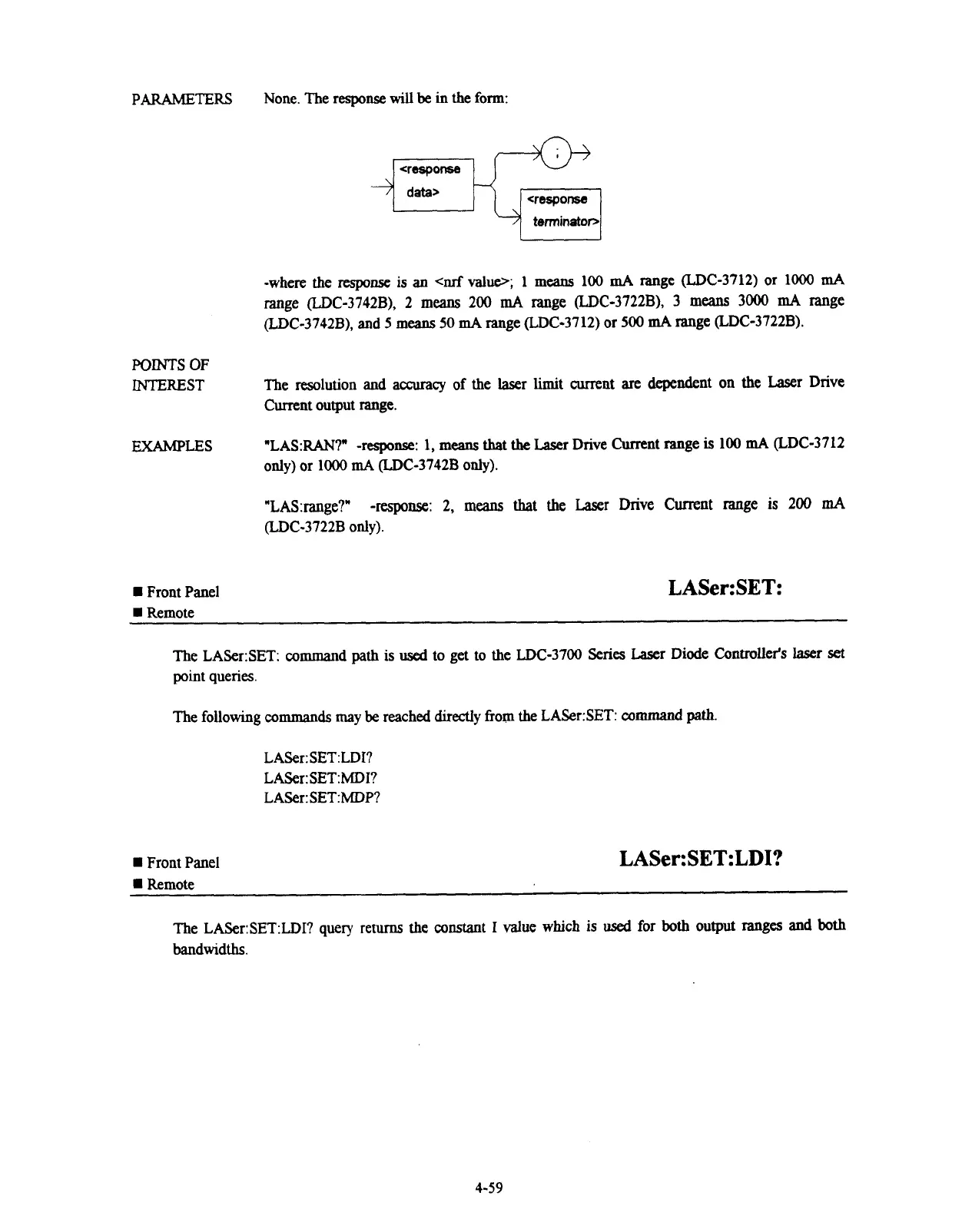

PARAMETERS
None. The response will be in the form:
-where the
response is an <nrf value>; 1 means 100 mA range (LDC-3712) or 1000 mA
range (LDC-3742B), 2 means 200 mA range (LDC-3722B), 3 means 3000 mA range
(LDC-3742B),
and 5 means 50 mA range (LDC-3712) or 500 mA range (LDC-3722B).
POINTS
OF
INTEREST
The resolution and accuracy of the laser limit current are dependent on the Laser Drive
Current output range.
EXAMPLES "LAS:RAN?" -response: 1, means that the Laser Drive Current range is 100 mA (LDC-3712
only) or 1000
mA (LDC-3742B only).
"LAS:range?"
-response: 2, means that the Laser Drive Current range is 200 rnA
(LDC-3722B only).
Front
Panel LASer:SET:
Remote
The LASer:SET:
command path is used to get to the LDC-3700 Series Laser Diode Controller's laser set
point queries.
The following
commands may be reached directly fiom the LASer:SET: command path.
LASer: SET:LDI?
LASer: SET:MDI?
LASer: SET:MDP?
Front Panel
Remote
The
LASer:SET:LDI? query returns the
constant I value which is used for both output ranges and both
bandwidths.
