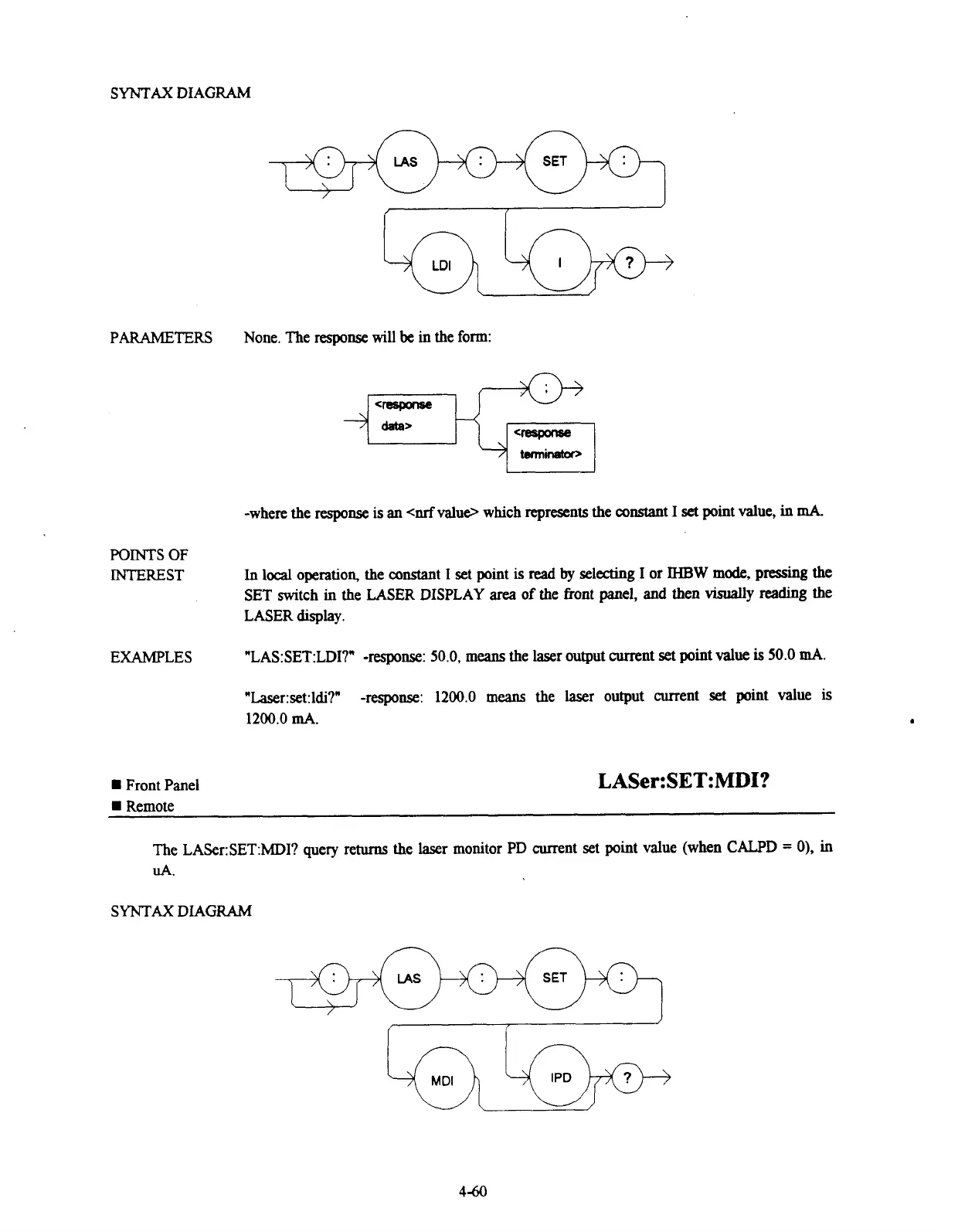

SYNTAX DIAGRAM
LAS
PARAMETERS
None. The response
will be in the form:
-where the response
is an <nrf value> which represents the constant I st point value, in mA.
POINTS OF
INTEREST
In local operation, the constant I set point is read by selecting I or MBW mode, pressing the
SET switch in the LASER DISPLAY
area of the front panel, and then visually reading the
LASER
&splay.
EXAMPLES
"LAS:SET:LDI?" -response:
50.0, means the laser output current set point value is 50.0 mA.
"Laser:set:ldi?" -response: 1200.0 means the laser output current set point value is
1200.0 mA.
Front Panel LASer: SET: MDI?
Remote
The LASer:SET:MDI? query returns the laser monitor
PD current set point value (when CALPD = 0), in
UA.
SYNTAX DIAGRAM
(, LAS SET
