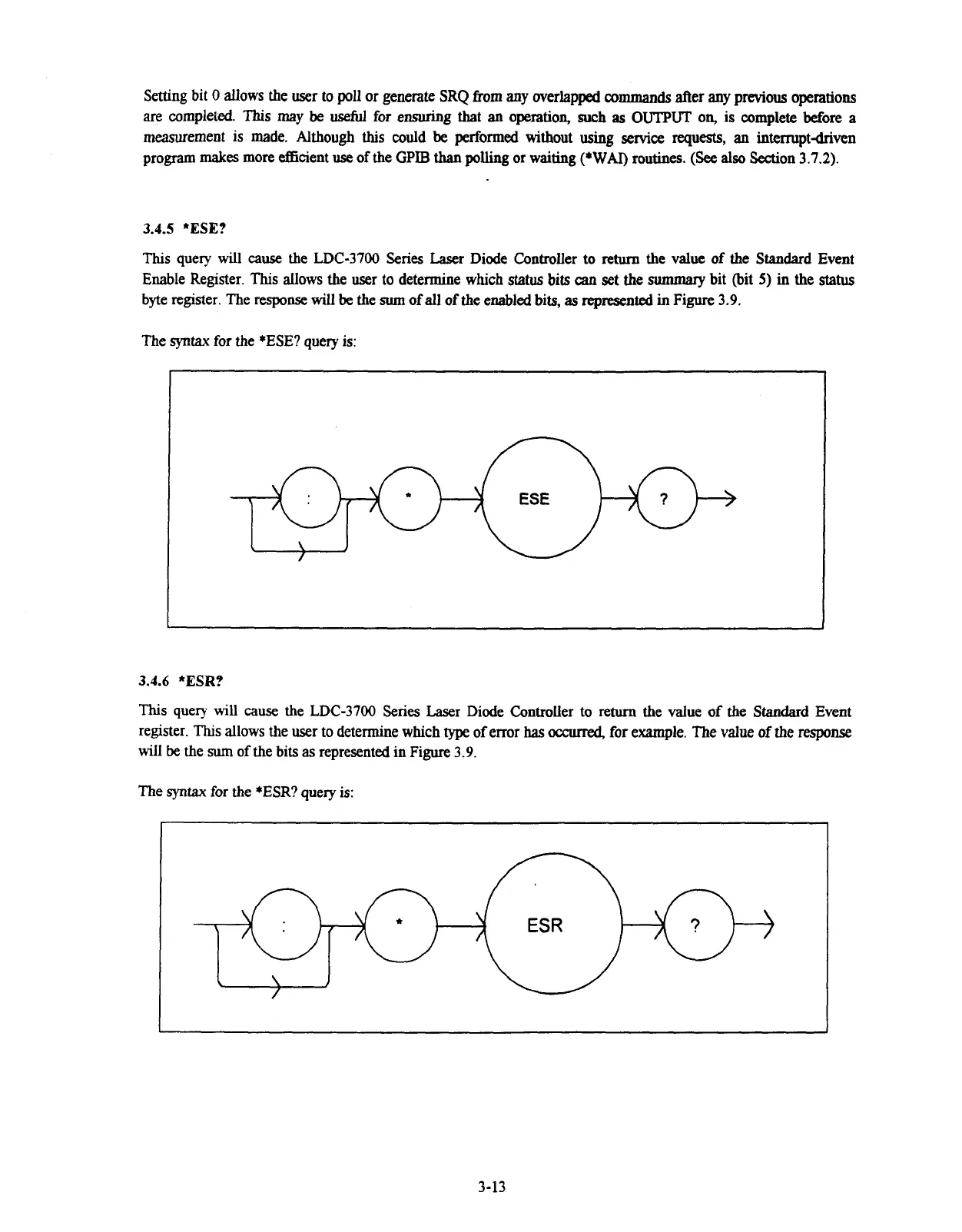

Setting bit
0
allows the user to
poll
or generate
SRQ
from
any
overlapped
commands
after
any
previous operations
are
completed.
This
may
be
useful
for
ensuring
that
an
operation,
such
as
OUTPUT
on, is
complete
before
a
measurement is made. Although this could
be
performed
without using
service
requests,
an
interruptdriven
program
makes
more &cient
use
of the
GPIB
than
polling
or
waiting
(*WAI)
routines.
(See
also Section
3.7.2).
This
query
will
cause
the
LDC-3700
Series
Laser Diode Controller to return the value of the
Standard
Event
Enable Register.
This
allows the user to determine which
status
bits
can
set
the
summary
bit (bit
5)
in the
status
byte register. The
response
will
be
the
sum
of all of the enabled bits,
as
represented
in
Figure
3.9.
The
syntax
for the
*ESE?
query
is:
This
query
will
cause
the
LDC-3700
Series
Laser Diode Controller to return the value of the
Standard
Event
register. Tlus allows
the
user to determine which
type
of error
has
occurred,
for example.
The
value of
the
response
will
be
the
sum
of the bits
as
represented in Figure
3.9.
The
syntax
for the
*ESR?
query
is:
