A.1.1 Tools and Assembling Material
The accessory boxes contain the assembly materials and some tools.
Tools:
1x Allen wrench with ball shaped head, size 6 mm
1x Allen wrench, size 4 mm
1x Allen wrench, size 3 mm
1x Allen wrench, size 2.5 mm
Assembling material:
6x Allen screws, M4x10. Used to fix the cover of the scanner to the scanner’s body.
8x Allen screws, M8x12, with plastic washers. Used to fix the lamps (4x) to the scanner
housing, to fix the hinges to the lamps (2x), and to fix the green cover (2x).
2x Allen screws, M8x14; with metal washers. Used to fix camera head and camera neck.
10x Allen set screws, M8x8. Used to fix the camera neck at the scanner’s body (8x) and to
fix the neck to the camera head (2x).
4x Lens head Allen screws, M4x10. Used to fix the cover of the scanner to the scanner’s
body.
2x Hinges
2x Gas springs for the glass plate

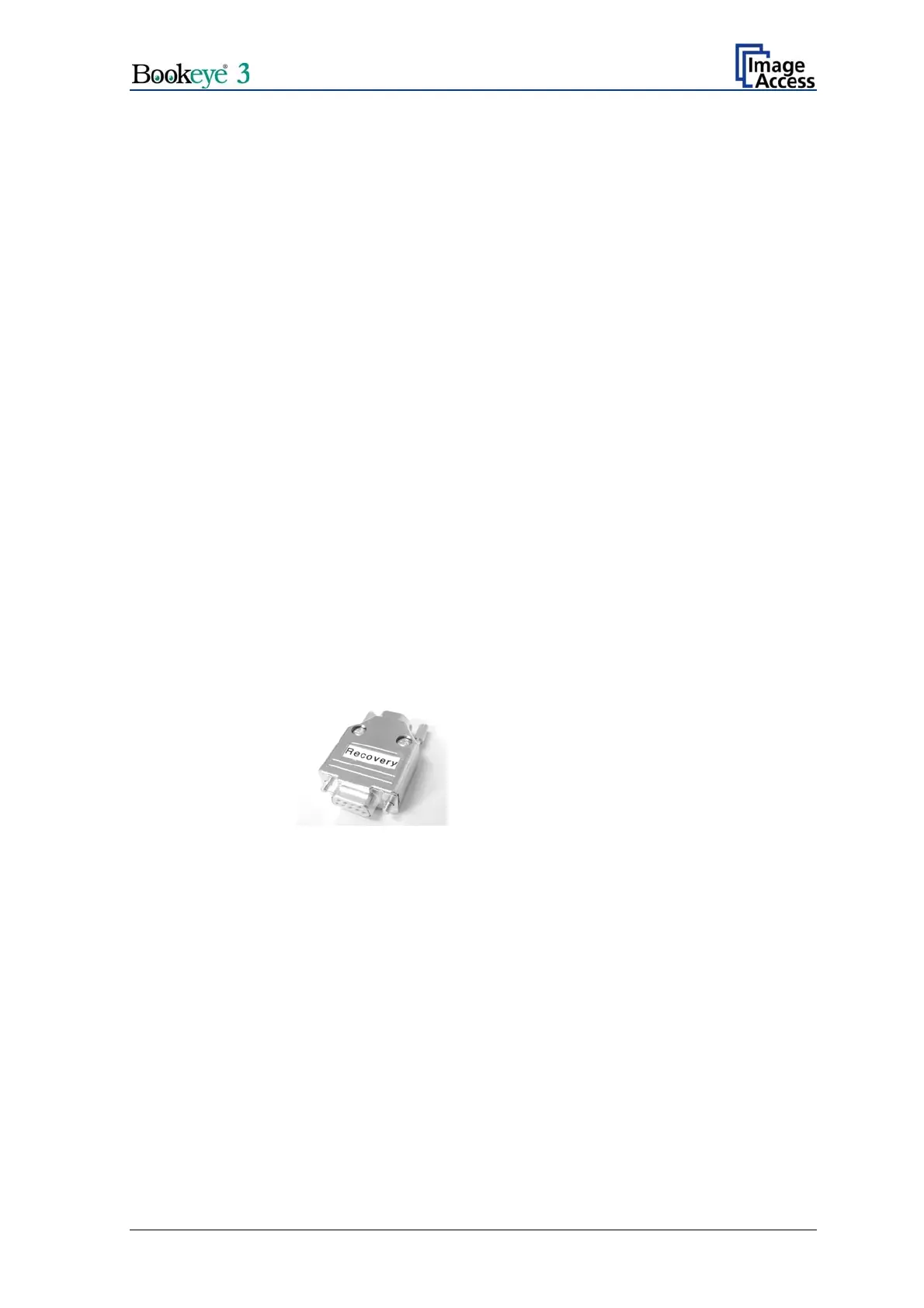

A Recovery key
A network cable, a cross-over cable, and a power cable.
Micro fiber cleaning cloth for the book cradle and other surfaces.
Please note: Keep the transport boxes for future use! For warranty returns, the scanner
must be sent back in the original transport box to avoid transport
damages.
In the camera neck, four T-slot nuts are inserted.
Two T-slot nuts are used as counterparts to the screws which fix the camera head to the
camera neck. The two T-slot nuts on the rear side are used as counterparts to the screws
which fix the cover between camera head and neck.
Setup and Assembly Manual Page 15
