Image Access bookeye 3 Assembly Manual

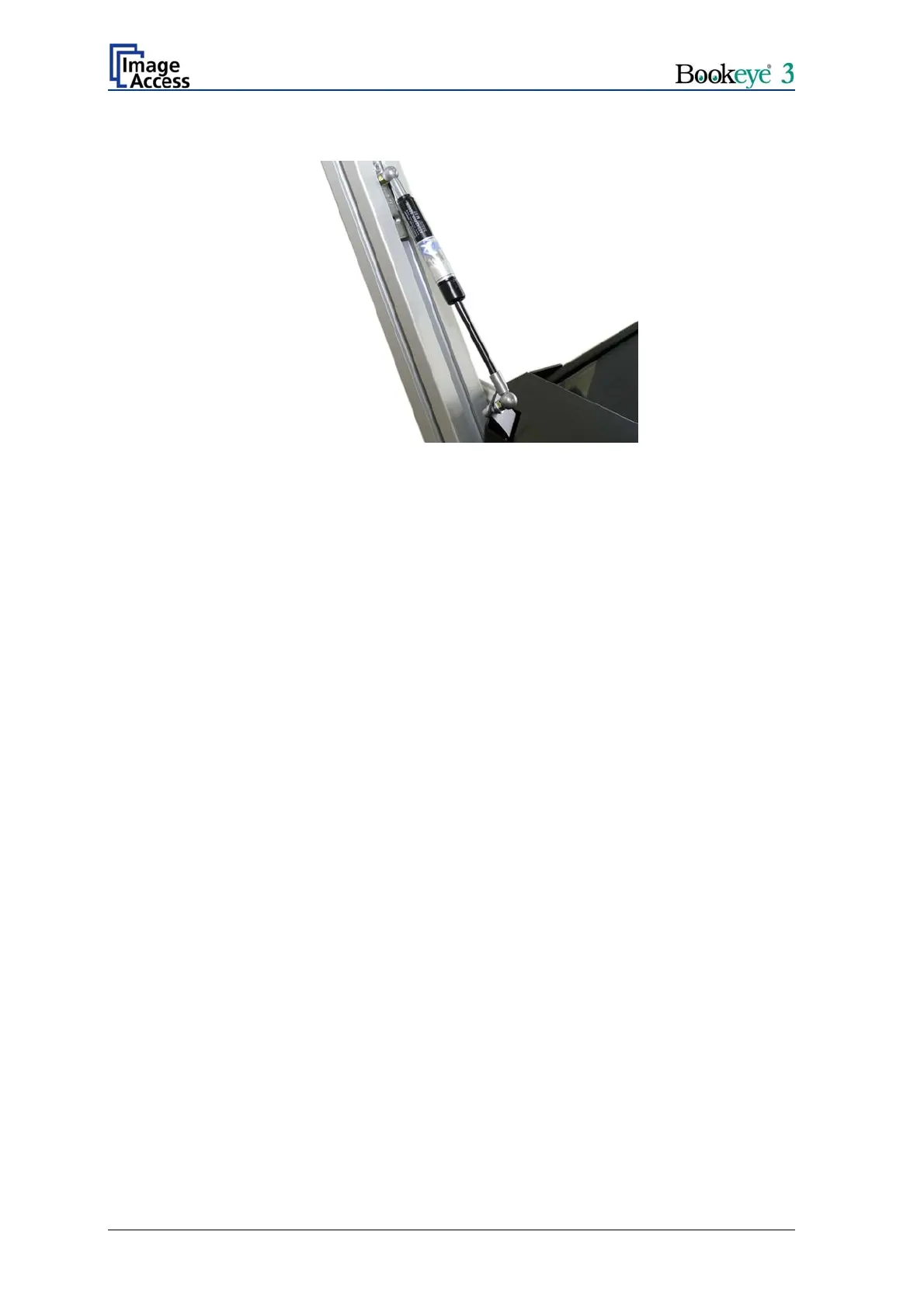

Picture 39: Gas spring completely mounted
The opening angle of the glass plate can be modified by moving the fixtures in the lamps.
Note: Modifying the opening angle of the glass plate should only be done with the help of
a second person!
Open the glass plate completely. One person must hold the glass plate in this position
while the second person opens the Allen set screw in the fixture slightly.
The opening angle can now be modified. When the glass plate opening angle is set to the
desired position, the Allen set screws must be fastened securely.
Page 32 Setup and Assembly Manual
