Image Access bookeye 3 Assembly Manual

Place the T-slot nuts in the neck corresponding to the fastening brackets before fastening.
Before fastening the screws, check the alignment of the two neck elements to each other.
There must not be a gap between the two neck elements.

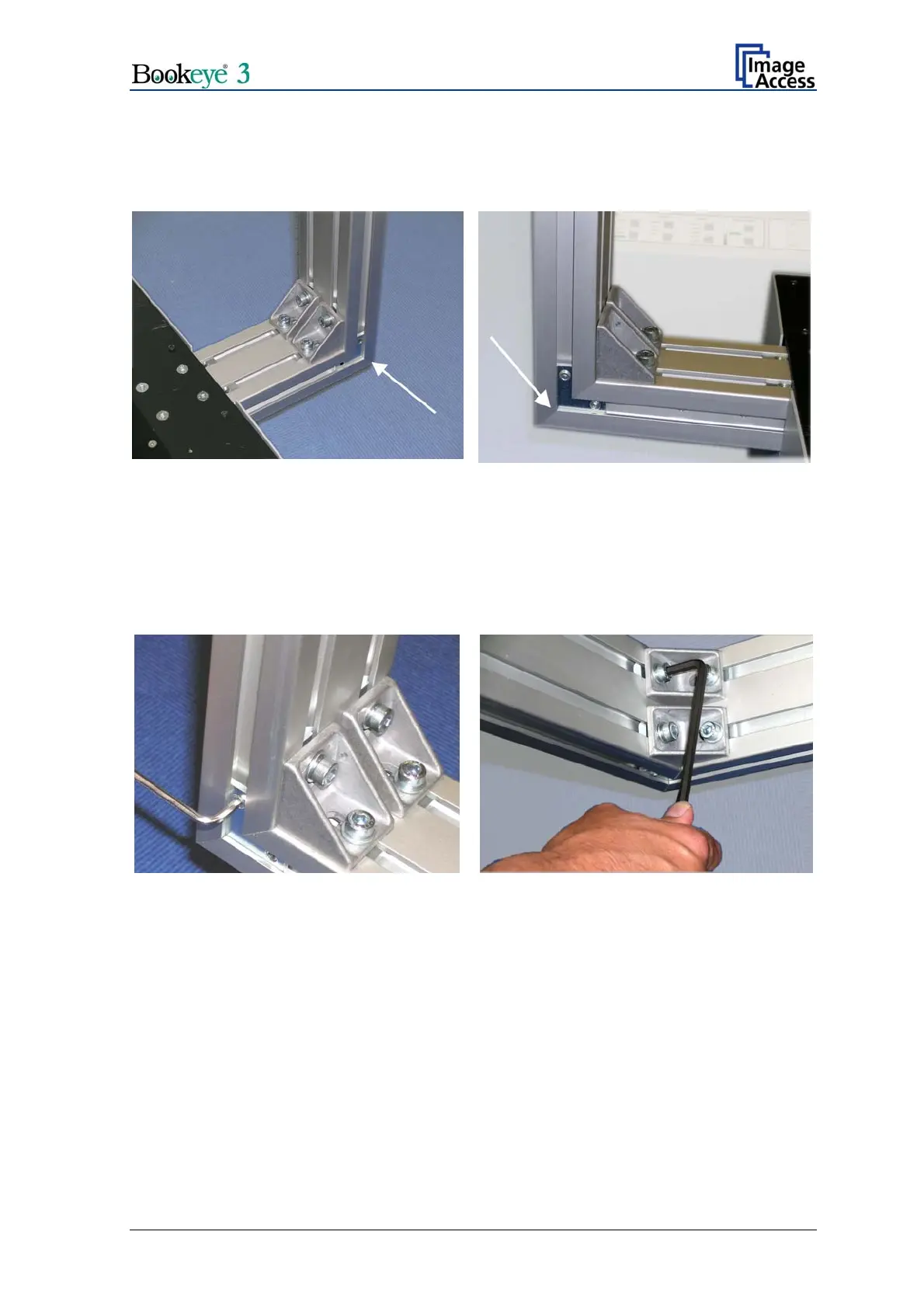

Picture 7: Check the alignment …
Picture 8: ... at both sides
To ensure a proper angle alignment between the short neck and the long neck it is
necessary to fasten the screws in the given order.
At first fasten the two Allen set screws M8x8 in the fastening angle at position A.
Then continue with the two Allen screws M8x14, using a metal washer at each screw, in
the fastening brackets (B).
Picture 9: Fastening at position A Picture 10: Fastening at position B
Setup and Assembly Manual Page 19
