Slide the body element cover slowly back on the body element.
Important: While moving the body cover back on the body element, watch the
keyboard cable (item (1) in the picture below). Picture 28 shows how to
hold the keyboard cable.

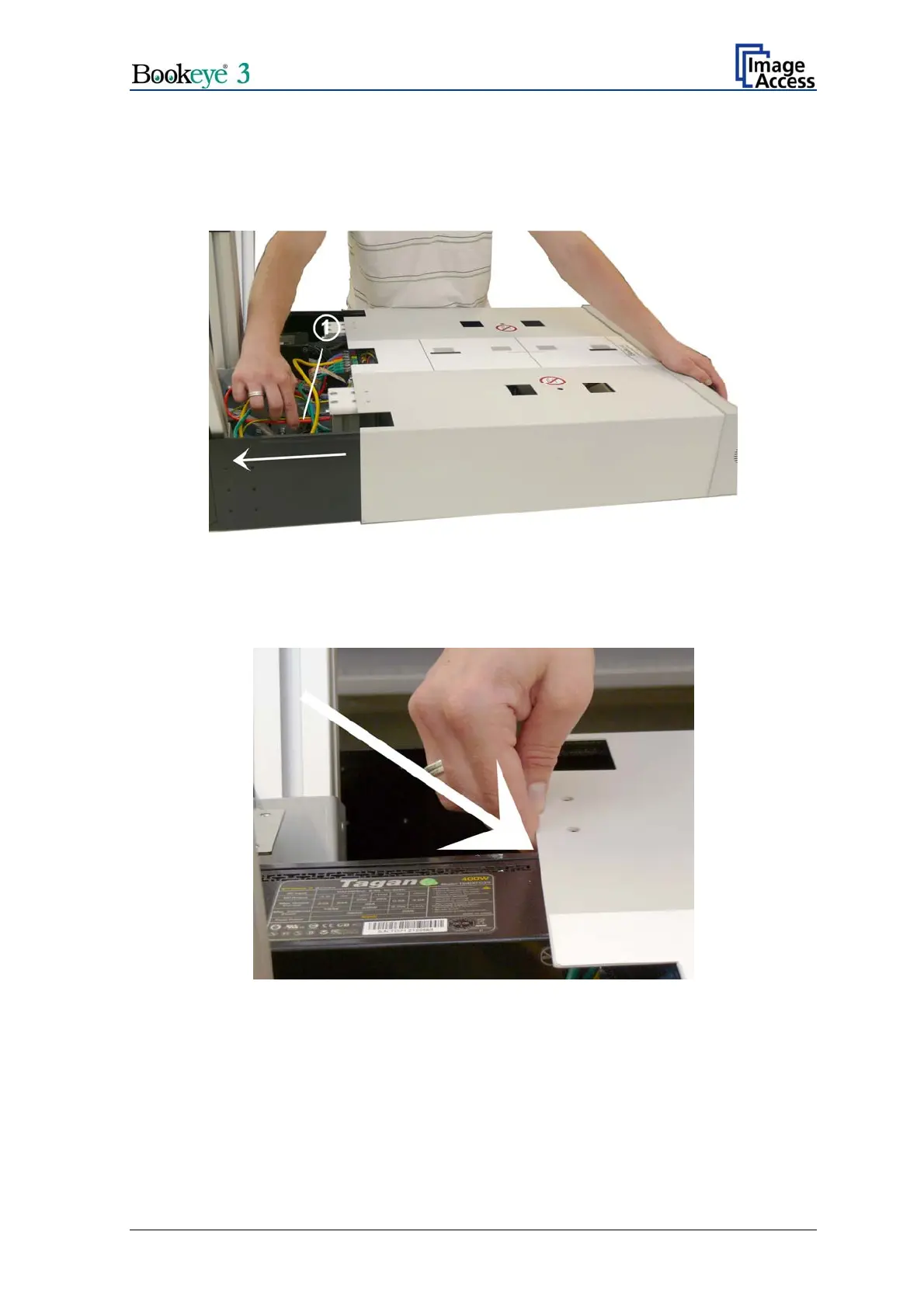

Picture 28: Keyboard cable while moving the body cover
Pull the keyboard cable carefully in arrow direction until the edge of the body cover
reaches the edge of the power supply. Then release the cable and slide the body cover in
its final position.
Picture 29: Body cover at edge of power supply
Insert the screws in the following order:
1. The two countersunk socket screws between the driving elements of the book cradles.
2. The four lens head screws at the back of the housing, between the lamps and the
camera neck.
3. The six Allen screws at the bottom.
First, fasten the screws loosely. Check the position of the body element cover again and
tighten all screws securely.
Setup and Assembly Manual Page 27
