B.2.5 Laser Check
This function checks the integrity and position of the laser line. The function will return
skew and relative position to its ideal values and is used to track potential misalignment.
Start in the Adjustments & Support screen (Picture 52).
Perform the measurement as follows:
1. Find the section Focus & Scan Area Adjustments. Press the Laser Check button.
Note: The position of the book cradles is verified. If the book cradles are not in the
lowest (home) position a Retry button instead of the Next Step button and
a message is displayed on the screen.
After moving the book cradles to the lower position press the Retry button.
2. Place the White Reference Target 225x670 at the marked position.

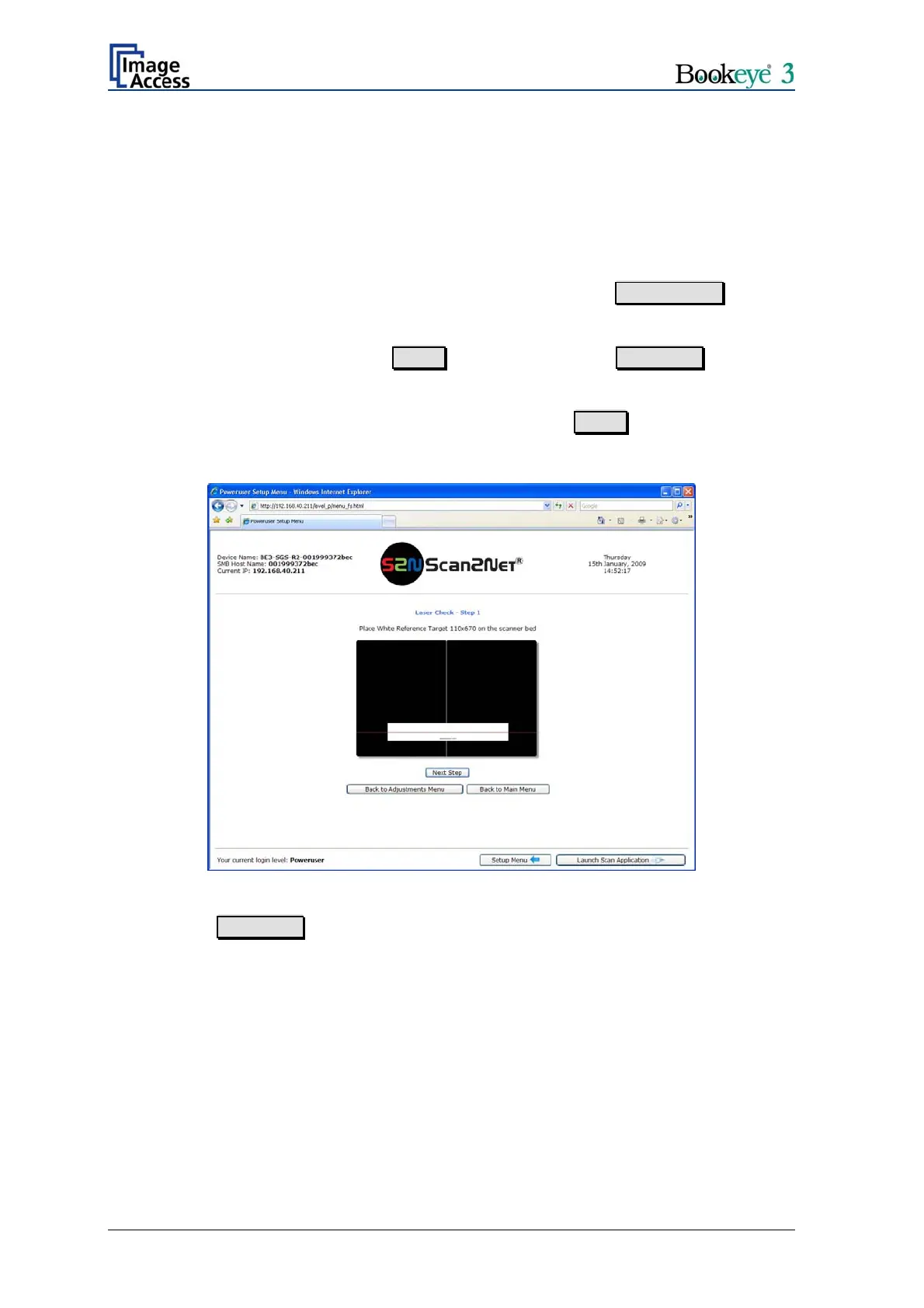

Picture 66: Laser Check screen
3. Press the Next Step button. The measurement starts.
Page 58 Setup and Assembly Manual
