The glass plate is fixed to the scanner with two Allen screws M8x12 for transporting.
Remove the Allen screws and keep them for later use.

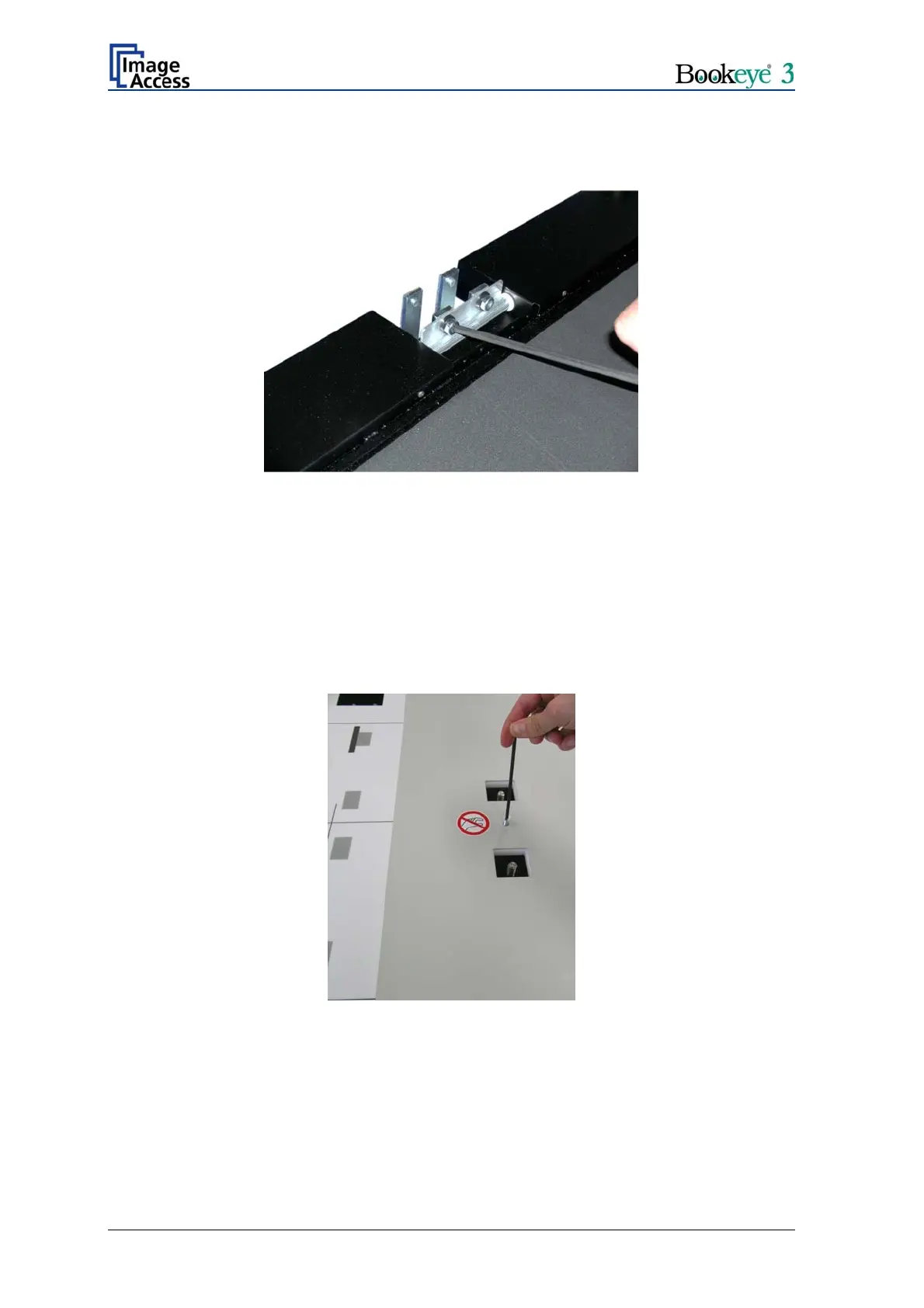

Picture 16: Removing the transport screws
Lift the glass plate off and store it temporarily in a place where it cannot be broken.
Storing it in the transport box is recommended.
Insert eight Allen set screws M8x8 into the fastening elements where the transport Allen
screws were removed.
Pull the book cradle plates out of the body element.
Remove the countersunk socket screws between the book cradle drives. Use the 4 mm
Allen wrench.
Picture 17: Removing the countersunk socket screw
Page 22 Setup and Assembly Manual
