Image Access bookeye 3 Assembly Manual

Open the glass plate completely, hold it in this position and click the gas spring onto the
pin of the glass plate.

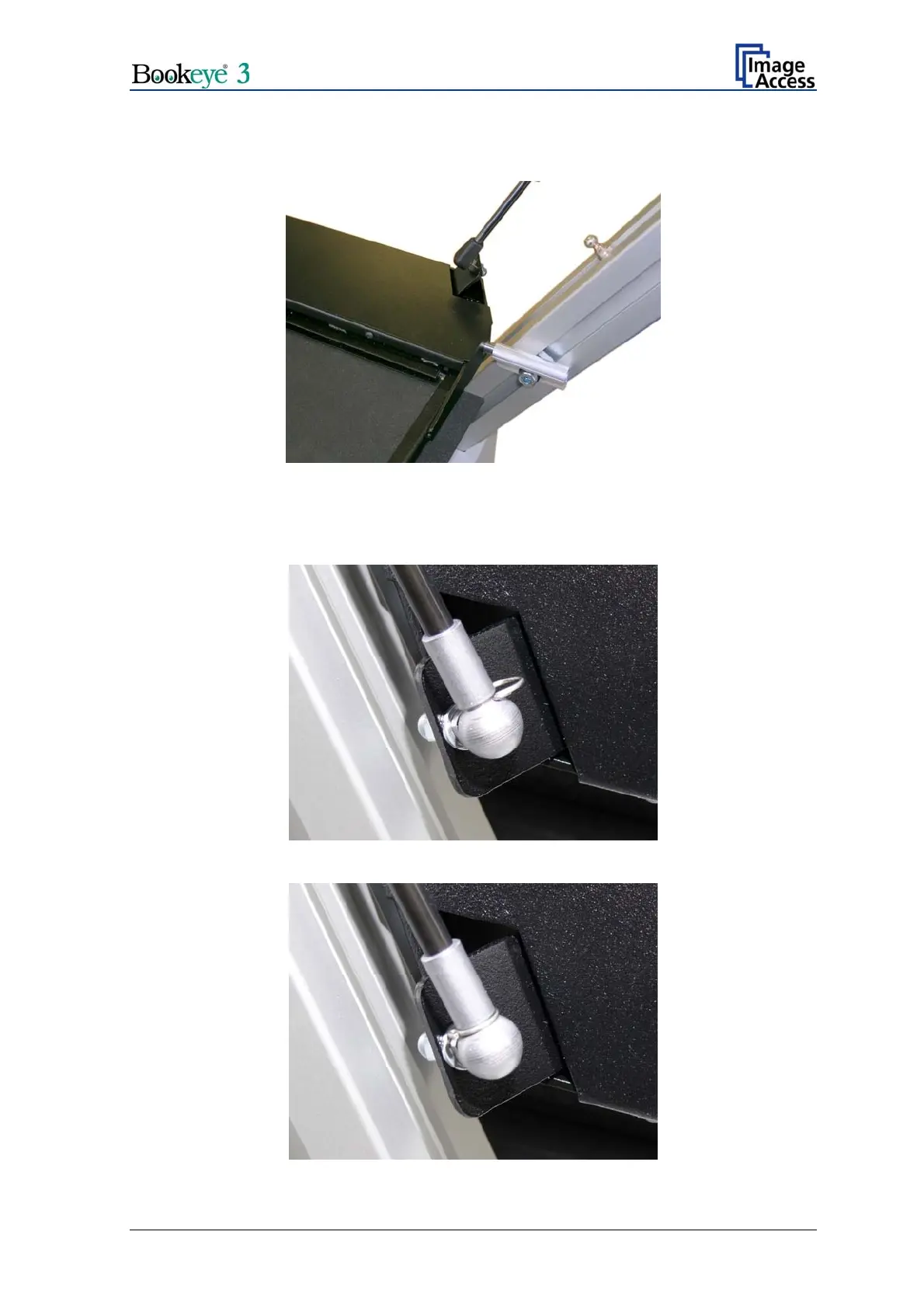

Picture 36: Gas spring mounted to glass plate
Repeat the procedure with the second gas spring.
Finally insert the locking springs at both gas springs.
Picture 37: Locking spring inserted
Picture 38: Locking spring locked
Setup and Assembly Manual Page 31
