configured and viewed on the Configuration screen.
Antenna Latitude/Longitude
GPS Coordinates acquired from the GPS Antenna or manually overridden values.
EL Motor Current
Current drawn for Elevation Motor (in Milliamps mA)
AZ Motor Current
Current drawn for Azimuth Motor (in Milliamps mA)
PL Motor Current
Current drawn for Polarization Motor (in Milliamps mA)
Target Satellite parameters

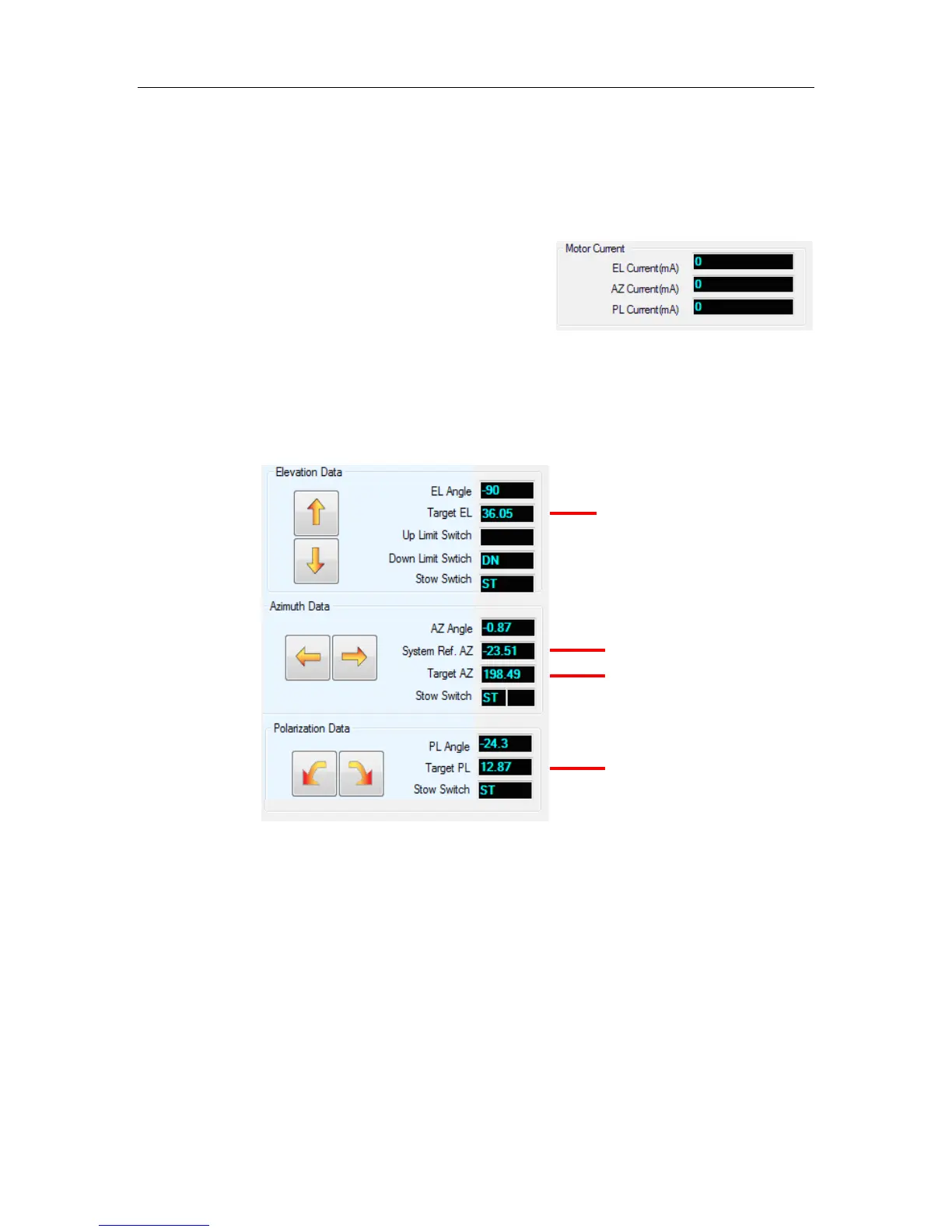

Fig. 73: Satellite Target Angles
Target Elevation (Target EL)
Calculated Elevation Angle that the Antenna must point in order to locate the desired
Satellite.
Target Real Azimuth (Target AZ)
Calculated Azimuth Angle that the Antenna must point in order to locate the desired
Satellite in reference to True North.
Target Antenna Azimuth (System Ref. AZ)
Calculated Azimuth Angle that the Antenna must point in order to locate the desired
Satellite in reference to the Mobile Platform’s center position.
Target Elevation Angle
Target Antenna Azimuth Angle
Target Real Azimuth Angle
Target Polarization Angle
