5.4.
Typical Connection
–
PC
Free

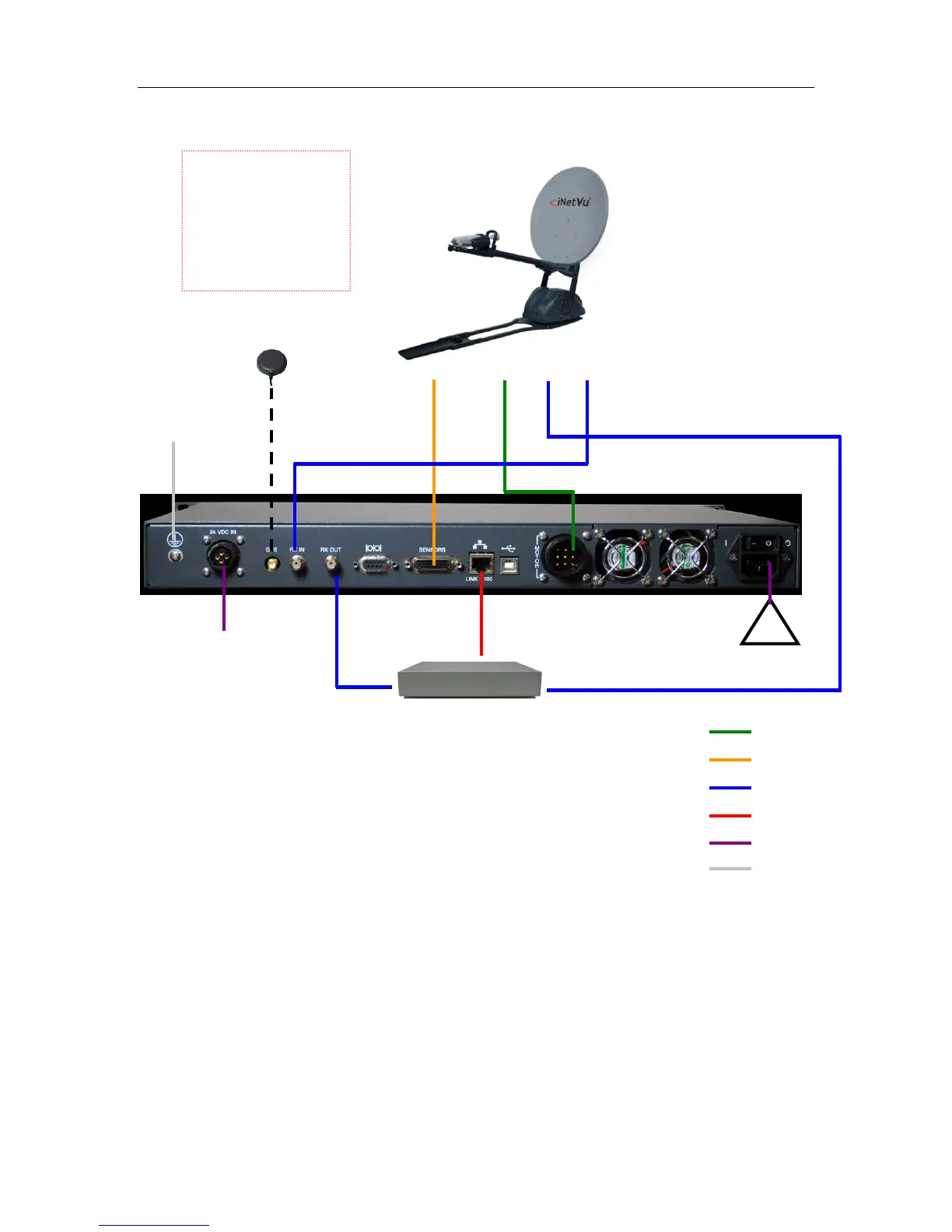

Fig. 6:
iNetVu
®
7000 Series C
ontroller PC
Free Connection C
onfiguration
*Recommended for proper grounding of iNetVu
®
sy
stems.
Note: VDC Power Input feature is available in the 7000C and 7024C Models Only
. See Appendix for
VDC power input external cable wiring.
!
100 - 260V
AC
GPS/Glonass
Antenna
MOTOR
CONTROL
SENSOR
CABLE
Satellite Mode
m / VSAT
RX OUT
Network
Cable
RX IN
TX
RX
TX O
UT
RX IN
*
Ground
protection
External
grounding
connection
iNetVu™ Mob
ile
Platform
12/24 VDC
Power input
7000C/7024C
must use the
GLONASS/GPS
antenna that w
as
shipped w
ith the
controller.
M
o
to
r
Co
n
tr
o
l
Ca
b
le
RG6 Coaxial Cable
Network Cable
Power Cable
Sensor Cable
*
Ground Connection
Motor Control Cable
15
17
Table of Contents
Default Chapter
6
Table of Contents
6
1 Introduction
9
2 Specifications
10
3 Minimum Recommended PC Requirements
10
4 Physical
11
5 Typical Connection Configuration
12
Typical Network Interface Connection
13
Typical USB Communication Interface
14
Typical Serial Communication Port Interface
15
Typical Connection - PC Free
16
System Diagram with Splitter
17
6 Installation
18
Rack Installation
18
Inetvu ® Software - Software and USB Driver Installation
18
Inetvu Setup Wizard
22
Setup
24
Serial RS232 Setup
24
Existing Inetvu Mobile Platform Installation
25
7 Inetvu ® Front Panel Operation
27
LED Definition
27
Manual and Automatic Controls Button Operation
28
LCD Screen and Navigator Keypad Operation
29
Front Panel Menu Navigation Tree
30
Opening Screen
31
Main Menu
31
Monitor
32
Main
33
Operation
44
Conf1
48
Password Protection
48
Configuration Menu (CONF1)
48
Sm1
51
Sm2
52
Conf2
52
Configuration Menu (CONF2)
53
Tst
72
E&A&P
73
Dpy
74
Dpyq
75
Dpy_C
75
A_Acp
77
M_Acp
77
S_Acp
77
Info
77
Cc1
78
Cc2
78
Dvb_D
79
Dvb_P
79
Mod
79
Sys1
80
Err
80
8 Inetvu ® 7000 Series Software
81
Setup Wizard
81
Navigating Menus
82
Inetvu Controls
82
Maintenance
94
Platform Parameters
95
GPS and Compass
96
Elevation Parameters
100
Azimuth Parameters
102
Polarization Parameters
104
PC Application
106
Site Name and Controller Beep
106
Maintenance Menu Buttons
107
Configuration
109
Target Satellite Parameters
110
Reference Satellite Parameters
113
Modem Parameters
114
Beacon Receiver
117
Controller Parameters
118
Search Parameters
119
Controller Feature
123
Advanced Search Configuration
125
LNB lo & 22Khz Tone
126
COM Port Interface
127
Configuration Menu Buttons
127
Maintenance Test
128
About
130
Language
133
Exit
133
9 Inetvu ® 7000 Series Controller Web Interface
134
Navigating Menus
134
Controls
136
Configuration
137
System Test
138
About
139
Firmware/Satellite Table Update
140
Firmware Update
141
Satellite Table Update
142
10 Controller Connectivity
143
Network Configuration Example
144
How to Set Network Configurations on Your PC
145
11 Integrations and Compatibility Features
146
GLONASS Navigation System
146
Uplogix Remote Management
146
12 Appendices
147
Appendix 1: Default Limits and Configuration Data Tables
148
Appendix 2: Compass Direction and System Ref. AZ Table
151
Appendix 3: LCD Table Summary
152
Appendix 4: Router Configuration Example
156
Appendix 5: Tooway Look-Up Table
157
Appendix 6: DC Input Power Cable Connectivity
161
Appendix 7: Declaration of Conformity
163
C-COM Satellite Systems Inc
164
