12.6. Appendix 6: DC Input Power Cable Connectivity
Note: DC Input connector exists in 7000C and 7024C controllers ONLY,
older versions do not have the DC Input connector.

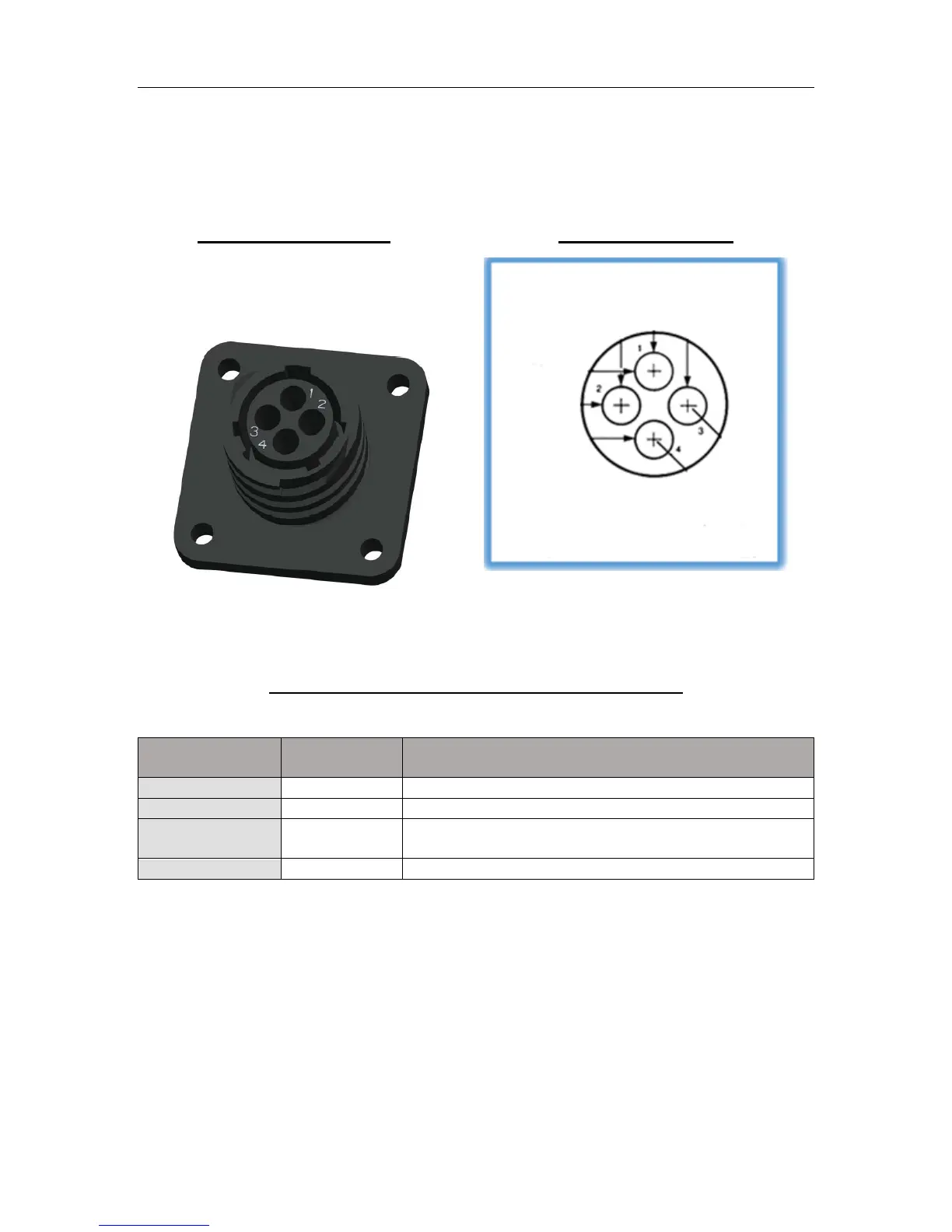

Controller Receptacle External Cable Plug
P1 External Cable Plug Pin List (4-CONTACTS)
RECEPTACLE
PIN
SIGNAL
Notes
P1-1
DC + In 2
Must have an Inline Fast Blow Fuse – 15A@24VDC
P1-2
DC - In 2
P1-3
CHASSIS
GND
P1-4
NOT USED
Note: VDC Power Input feature is available in the 7000C and 7024C Models Only. The correct external
power source should be used with the correct controller type, (7000C-12VDC/7024C-24VDC input).
The DC cable if assembled by end user must include INLINE FAST BLOW FUSE rated at
15A@24VDC.
P1 Straight Plug
4-Pin Contact Mating View
J1 Panel Receptacle
4-Socket Contacts Mating View
