iNetVu 7000 Series User Manual

C-COM Satellite Systems Inc. Page 13 of 164
5.1. Typical Network Interface Connection

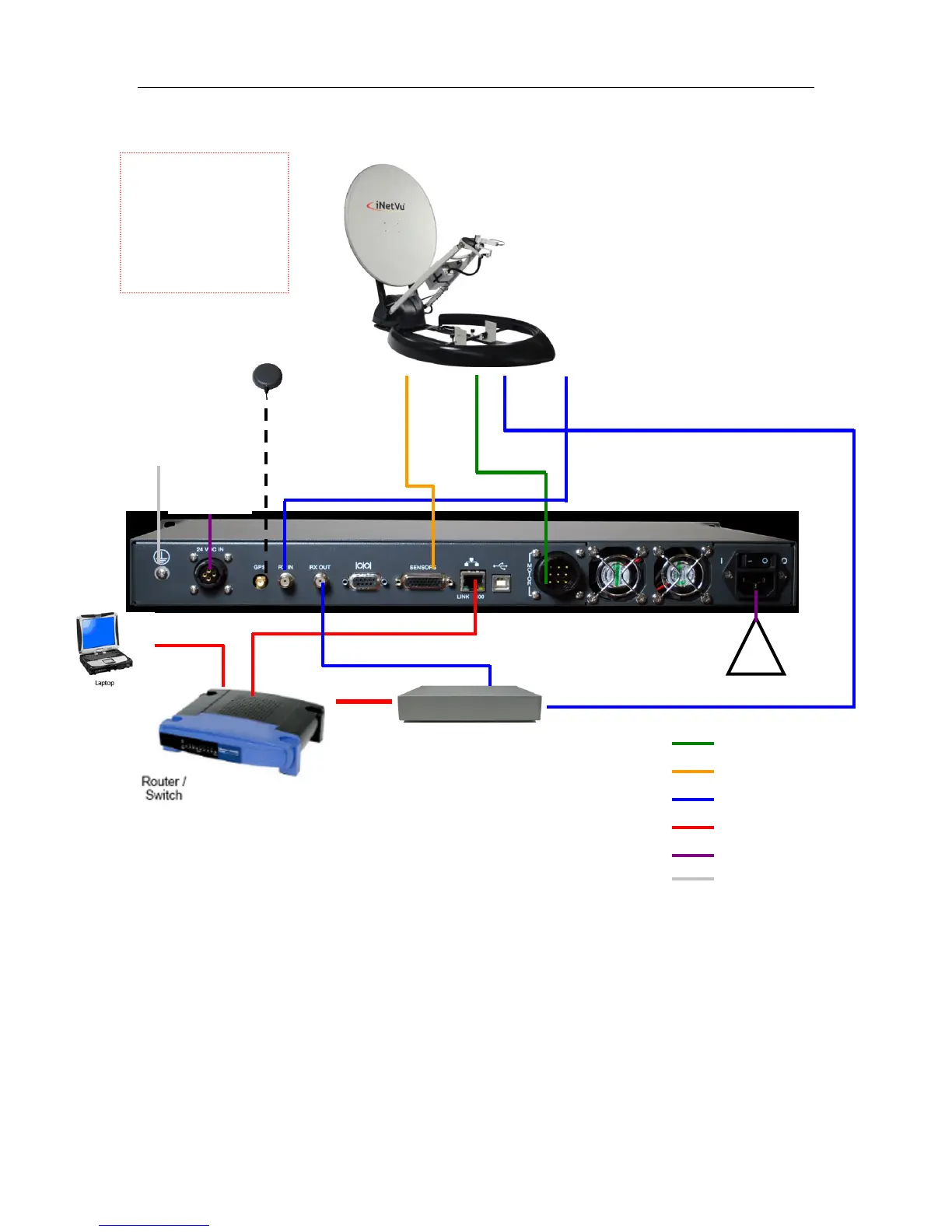

Fig. 3: iNetVu
®
7000 Controller Typical Connection Configuration
*Recommended for proper grounding of iNetVu
®
systems.
Note: VDC Power Input feature is available in the 7000C and 7024C Models Only. See Appendix for
VDC power input external cable wiring.
RX IN
GPS/Glonass
Antenna
1201 iNetVu™
Mobile Platform
MOTOR
CONTROL
TX
Satellite Modem / VSAT
!
100 - 260VAC
TX OUT
RX IN
SENSOR
CABLE
RX
RX OUT
* Ground Connection
RG6 Coaxial Cable
Network Cable
Power Cable
Sensor Cable
Motor Control Cable
* Ground Connection
*Ground
protection
External
grounding
connection
12/24 VDC
Power Input
7000C/7024C
must use the
GLONASS/GPS
antenna that was
shipped with the
controller.
