4 - 31
XTC/3 Operating Manual

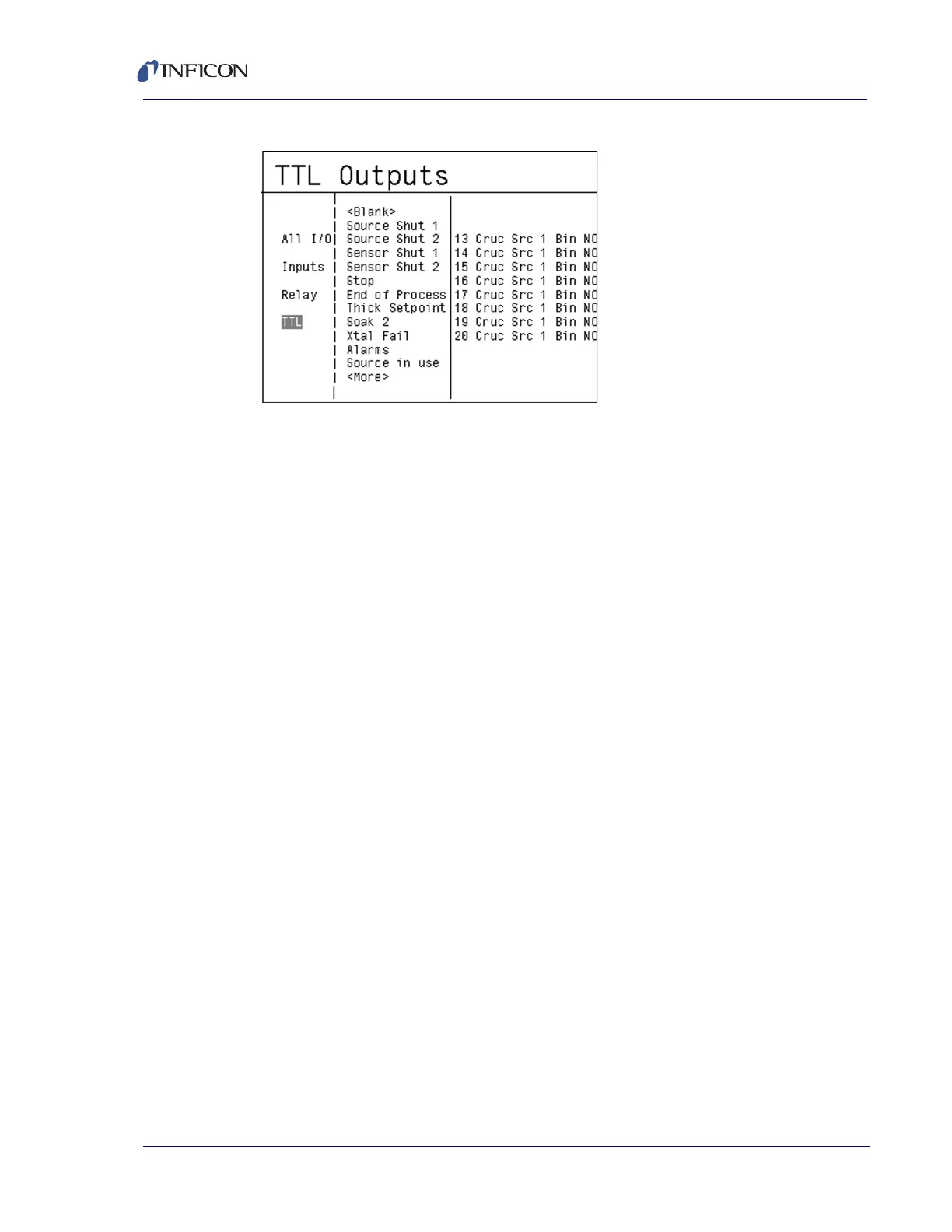

Figure 4-28 TTL Outputs
NOTE: Three additional selection screens, identical to those for the Relay outputs,
are available for selecting additional TTL Outputs.
NOTE: Three consecutive relay or TTL outputs must be available when selecting
the BCD output function, Cruc Src 1 BCD or Cruc Src 2 BCD.
All three outputs will be inactive for position 1, all three outputs will be
active for position 8. The first output in the sequence is the LSB.
Eight consecutive relay or TTL outputs must be available when selecting
the Bin output function, Cruc Src 1 Bin or Cruc Src 2 Bin. In BIN mode,
only one of these eight outputs will be active at any given time, for
example, output 13 for position 1, output 14 for position 2 etc.
4.5.4 Clear Input or Output
To clear an input or output assignment, cursor to the <Blank> selection on the
appropriate screen and enter the input or output number to be cleared.
