Inficon XTC/3 User Manual

4 - 27
XTC/3 Operating Manual
4.5.1 XTC/3S Inputs and Outputs
In XTC/3S, the fixed I/O will be displayed on the I/O Map screen. The assignment
of the 9 fixed inputs corresponds to the default assignments in XTC/2.
Also, refer to section 4.4.2.1, XTC/3S Film Select Option, on page 4-23 for inputs.
All relay (1 to 12) and TTL Open Collector outputs (13 to 20) are fixed to perform
the functions shown on the screen. These function assignments are identical to
the default configuration provided in XTC/2 per section 2.3.3.2.1 on page 2-9.

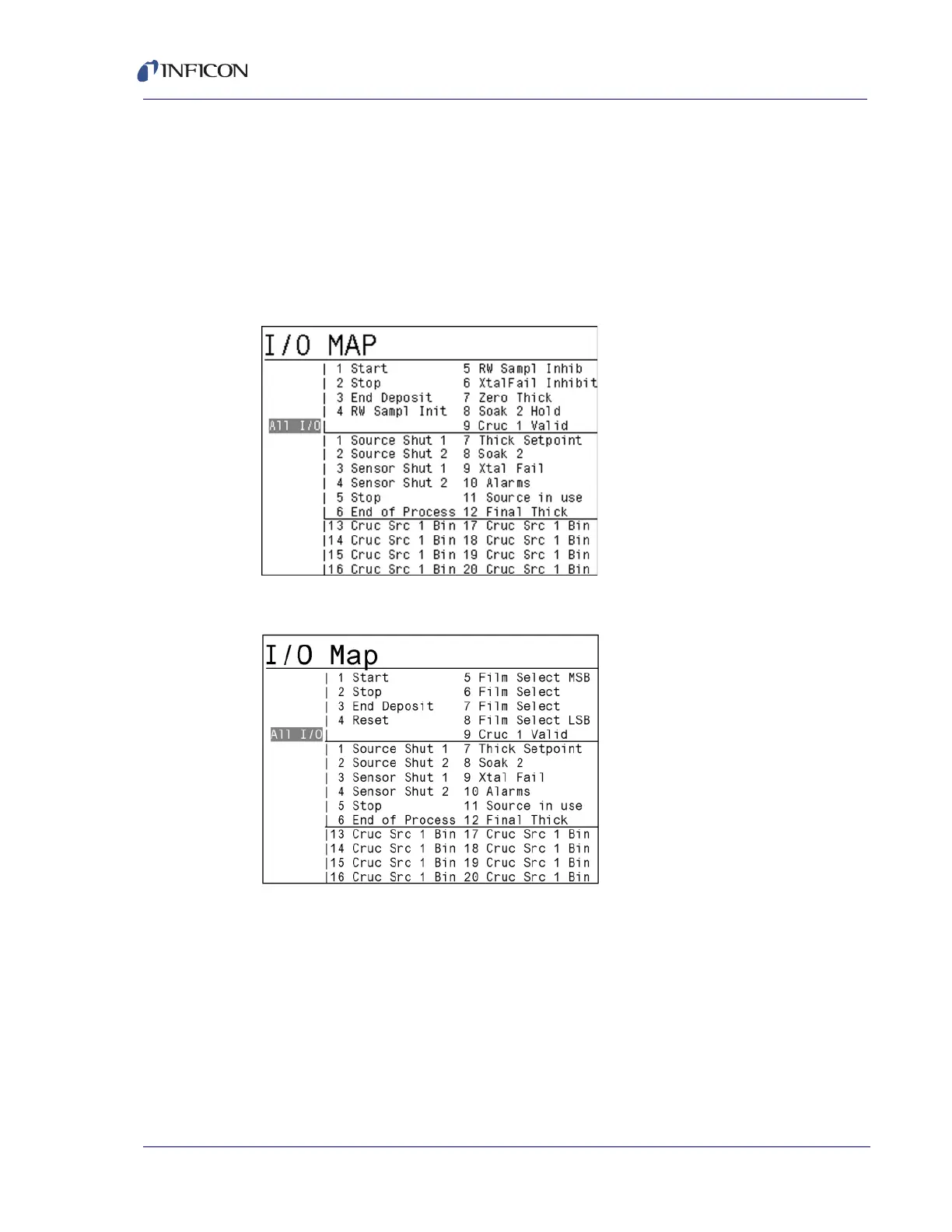

Figure 4-20 XTC/3S I/O Map screen, Standard Input option
Figure 4-21 XTC/3S I/O Map screen, Film Select option
The fixed functions of inputs 1 to 9 are shown in the upper portion of the screen
and the status of the fixed outputs is shown on the lower portion of the screen.
Active outputs are highlighted.
