Inficon XTC/3 User Manual

4 - 3
XTC/3 Operating Manual
4.2 Film Set Up Overview
4.2.1 Film Set Up
The film screen appears after pressing the MENU key, then cursoring down
to Film Parameter and pressing Menu.

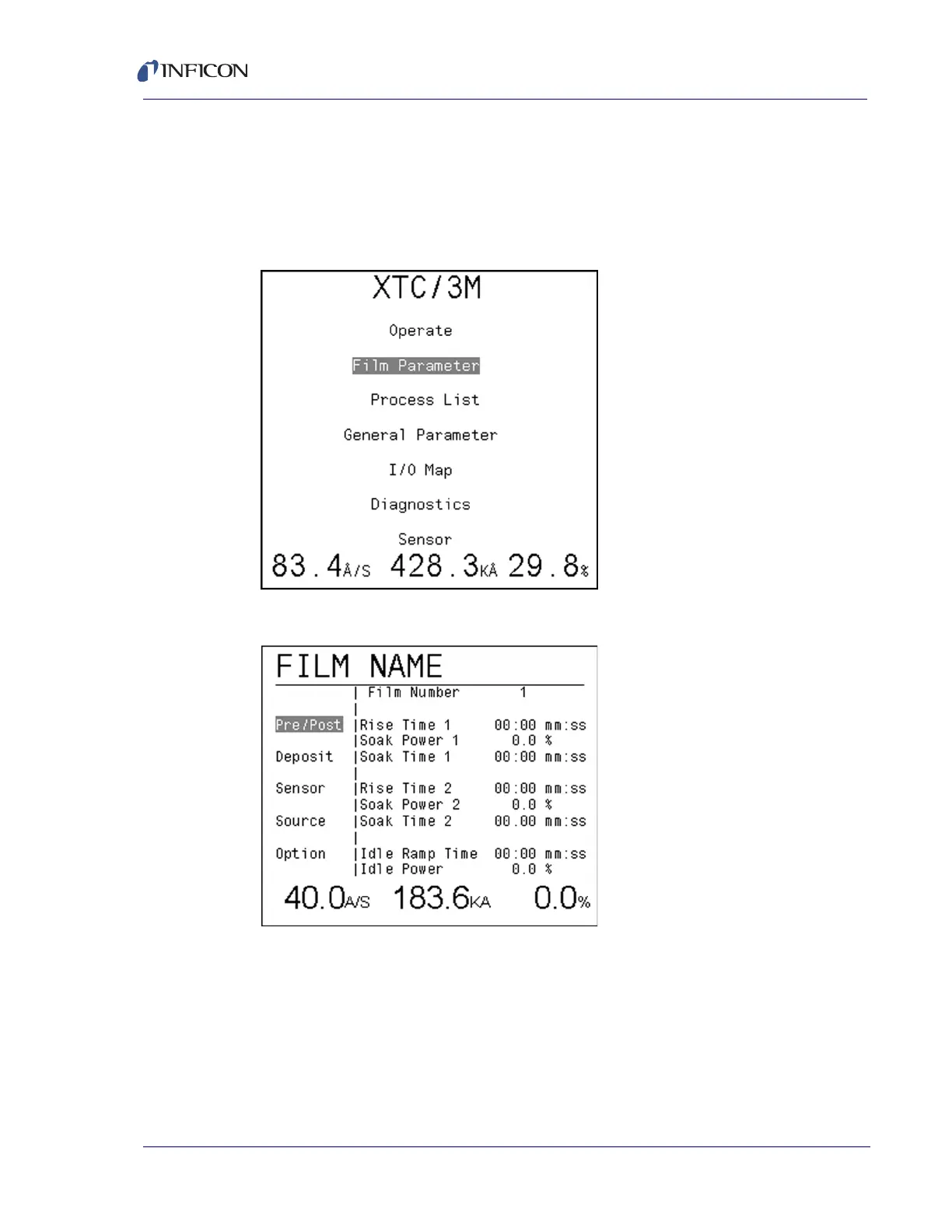

Figure 4-1 Main Menu screen XTC/3M
Figure 4-2 Pre/Post Film Programming Screen
From the Film Parameter display, Pre/Post, Deposit, Sensor, Source and
Option screens can be entered by cursoring to the respective label. The
◄► keys
move between the selection (left) panel and the parameter (right) panel. The
▲▼
keys are used to move from selection to selection or parameter to parameter. The
value of most of the film parameters can be updated using the numeric keypad and
ENTER key. In a few cases, e.g., Transfer Sensor, the TOGL key is used to toggle
between a list of choices.

Inficon XTC/3 Specifications

General

Brand	Inficon
Model	XTC/3
Category	Controller
Language	English
