XTC/3 Operating Manual
6.4.6 Crystal Snatcher
Use the crystal snatcher, supplied with the sensor (excluding Cool Drawer
sensors), as follows:
1 Insert crystal snatcher into ceramic retainer (1) and apply a small amount of
pressure. This locks the retainer to the snatcher and allows the retainer to be
pulled straight out (2).
2 Reinsert the retainer into the holder after the crystal has been replaced.
3 Release the crystal snatcher with a slight side-to-side motion.

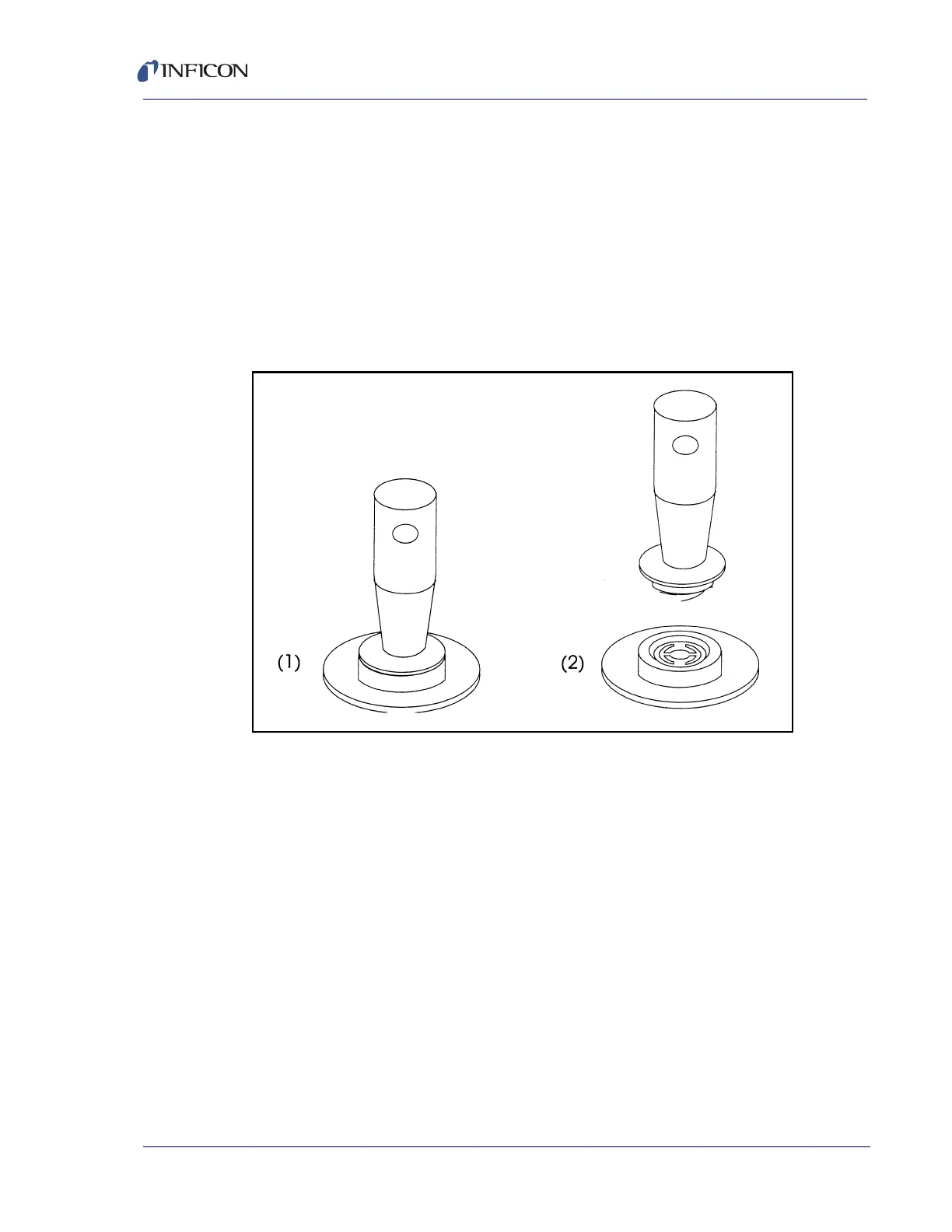

Figure 6-8 Use of the crystal snatcher
6.4.7 CrystalSix
Refer to the CrystalSix Operating Manual (PN 074-155 on CD PN 074-5000-G1)
for specific instructions for this device.
6.4.8 Crystal12
Refer to the Crystal12 Operating Manual (PN 074-398 on CD PN 074-5000-G1)
for specific instructions for this device.
