3 - 1
XTC/3 Operating Manual
Chapter 3
Operation
3.1 Front Panel Controls

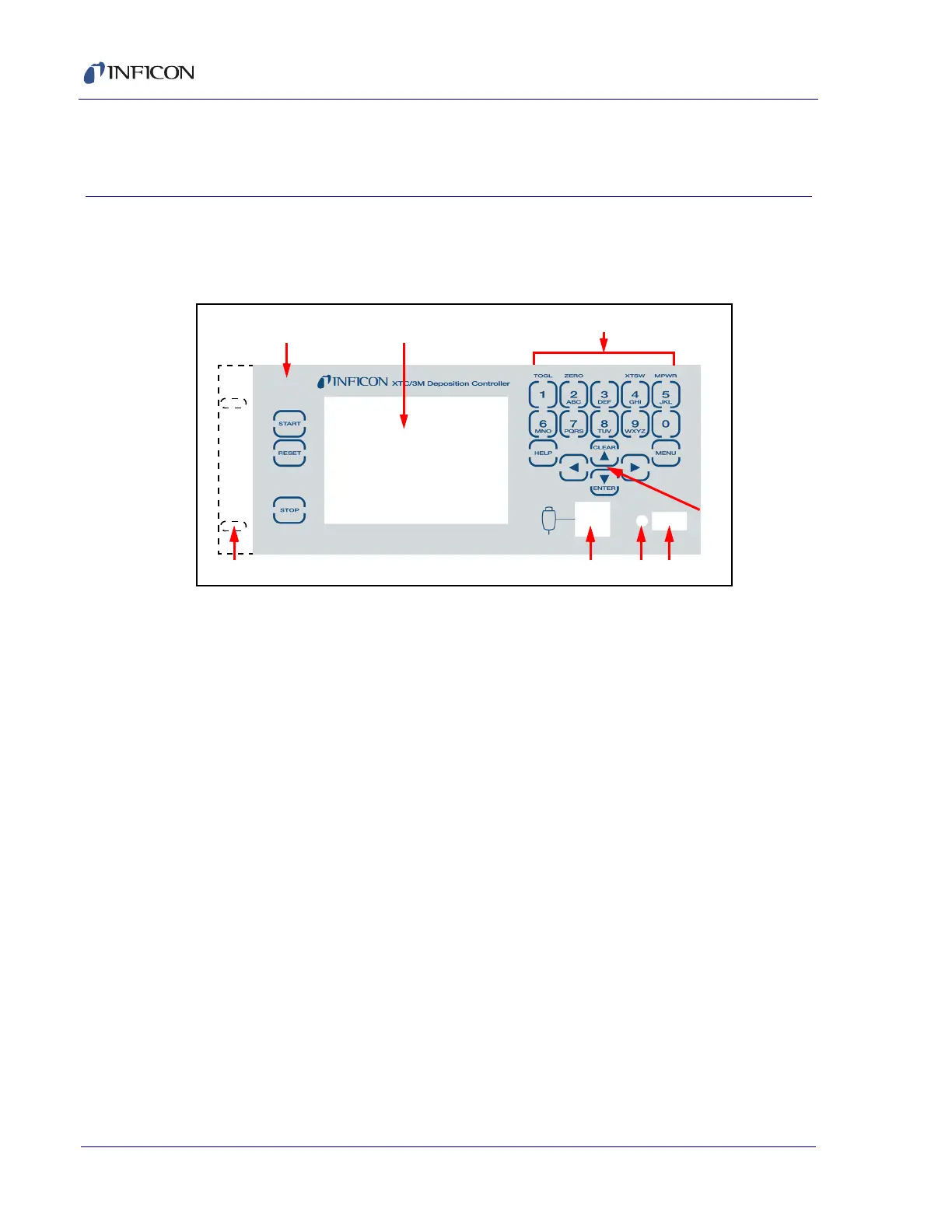

Figure 3-1 XTC/3M front panel
1 System Switches
START, STOP and RESET for process control.
2 LCD Screen
Provides graphical displays, set-up menus, status, and error messages.
3 Data Entry Keys
A keypad array with numerics 0 through 9 with telephone-style assigned letters
(XTC/3M only) for parameter entry and keys for HELP, CLEAR
▲(up cursor),
MENU and ENTER
▼(down cursor). All numeric entries must be followed
by ENTER.
CLEAR is used to erase data entry errors. If an illegal value has been entered,
CLEAR will erase the error message and re-display the last valid data.
MENU is used to navigate through XTC/3 displays.
HELP key brings up context-related text.
4 Cursor Keys
An array of four keys that are used to move the display cursor either up, down,
left or right. The keys auto-repeat; the cursor will continue to move as long as
the key is held down. Depending on the context,
▲will function as CLEAR and
▼will function as ENTER. The▼and▲keys are also used to increment or
decrement the power level while in Manual operation.
1
2
3
4
5678
