4 - 26
XTC/3 Operating Manual
4.5 I/O Overview

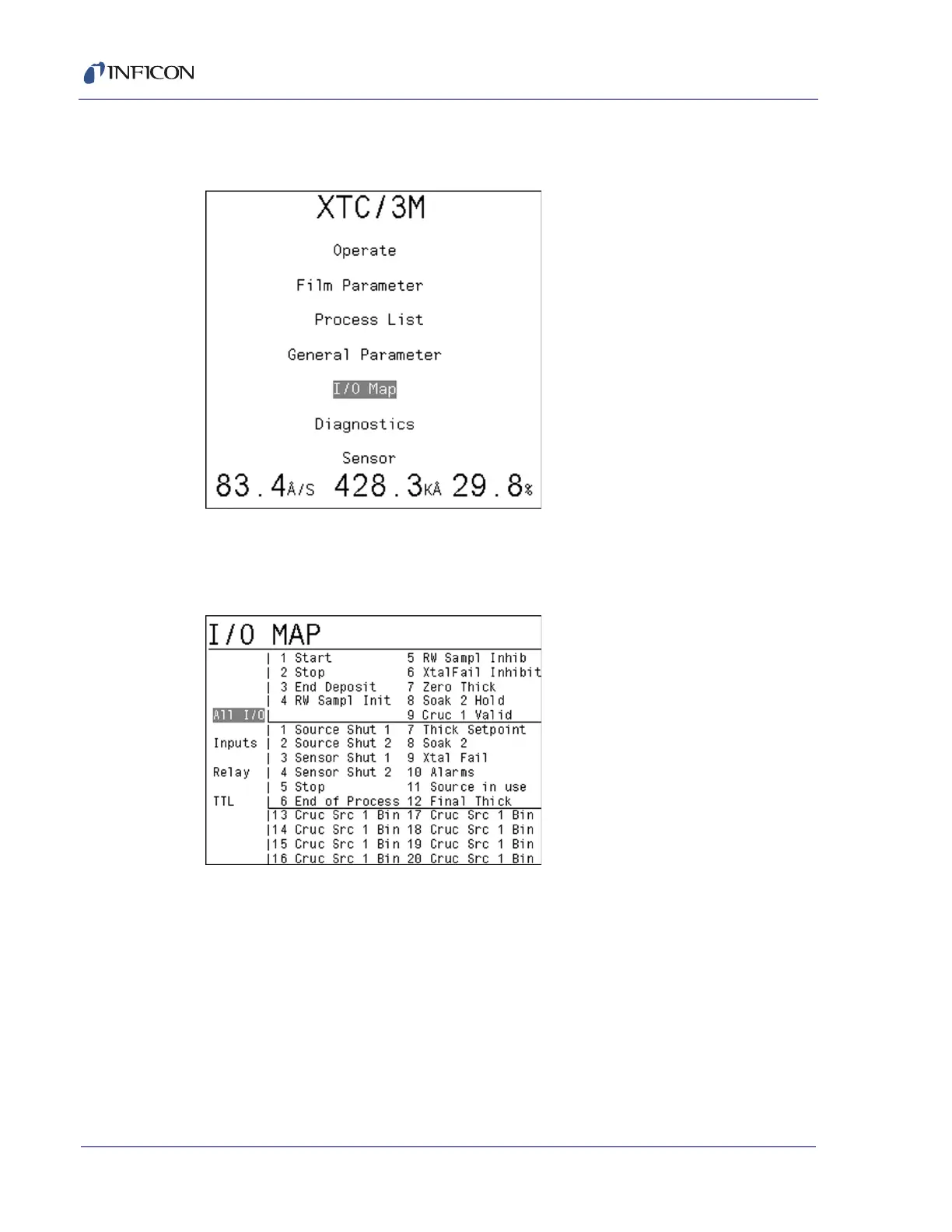

Figure 4-18 XTC3/M Main Menu screen
The I/O Map display appears after pressing the MENU key, then cursoring down
to I/O Map and pressing MENU.
Figure 4-19 XTC/3M All I/O screen
The All I/O screen displays the complete digital I/O map. The functions of inputs
1 to 9 are shown in the upper portion of the screen and the status of the outputs is
shown on the lower portion of the screen. Active outputs are highlighted.
In XTC/3M, the selection panel permits selecting All I/O, Inputs, Relays or TTL
screens. Selecting anything but the All I/O on XTC/3M will allow update of the
corresponding inputs or outputs.
If the parameters are locked, the L Lock or R LOCK message will be displayed
in the upper right corner. The Input, Relay, and TTL (Output) screens will not be
available for programming.
