3 - 11
XTC/3 Operating Manual
3.3.5 General Parameter Display

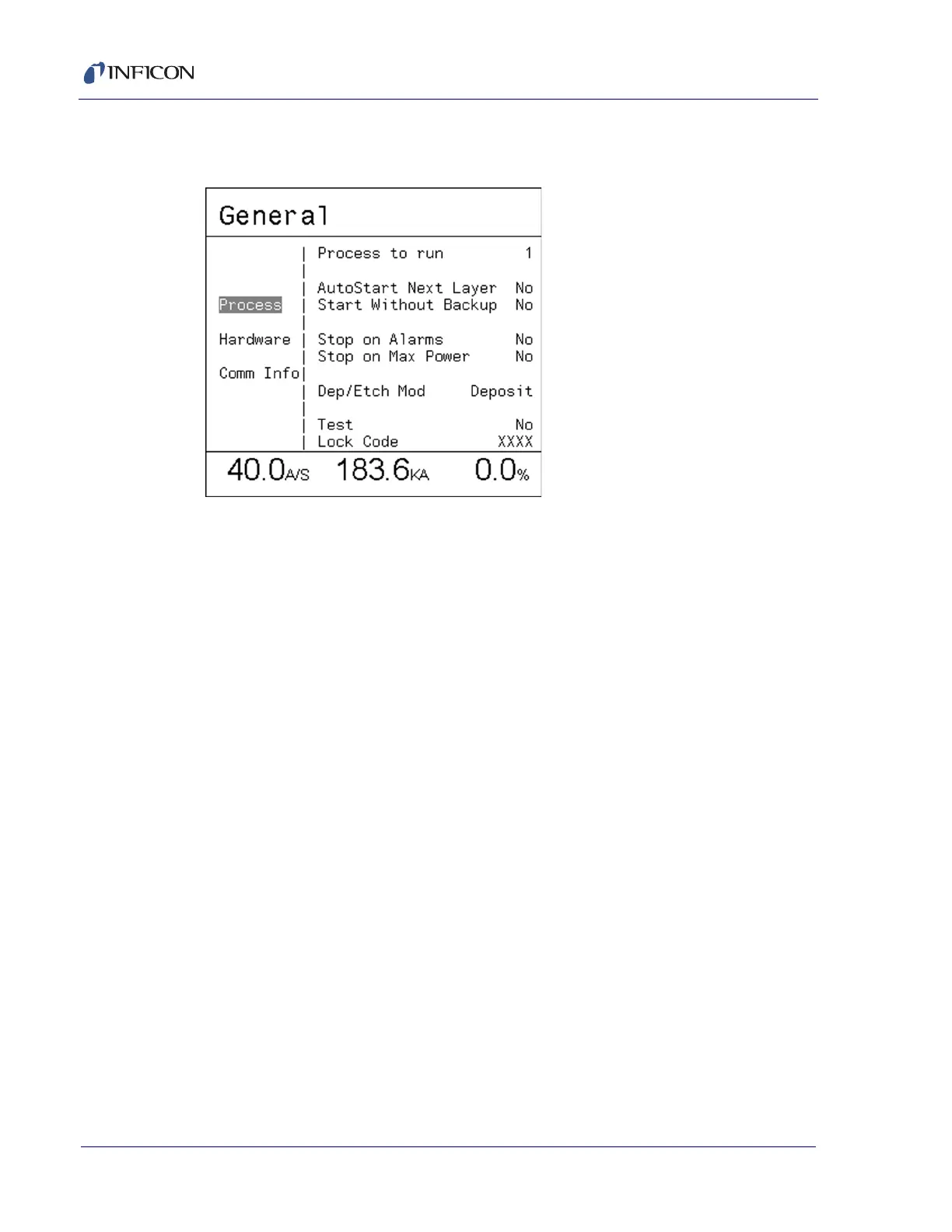

Figure 3-8 XTC/3M General parameter display
NOTE: XTC/3S replaces Process to Run with Film To Run.
XTC/3S does not support AutoStart Next Layer.
The General parameter screen is subdivided into Process, Hardware and
Communication Info screens. The L Lock lock code is initially set in
the Process screen.
If the parameters are locked here, the L Lock message will be displayed in the
upper right corner. The parameters will be displayed, but cannot be accessed.
See section 4.4 on page 4-18 for programming details.
