LP500 Series Service Manual 28
NOTE If you removed the speaker to access another part, set the speaker assembly aside and
go to the next part. If you are replacing the speaker or bracket, continue with the
instructions below.

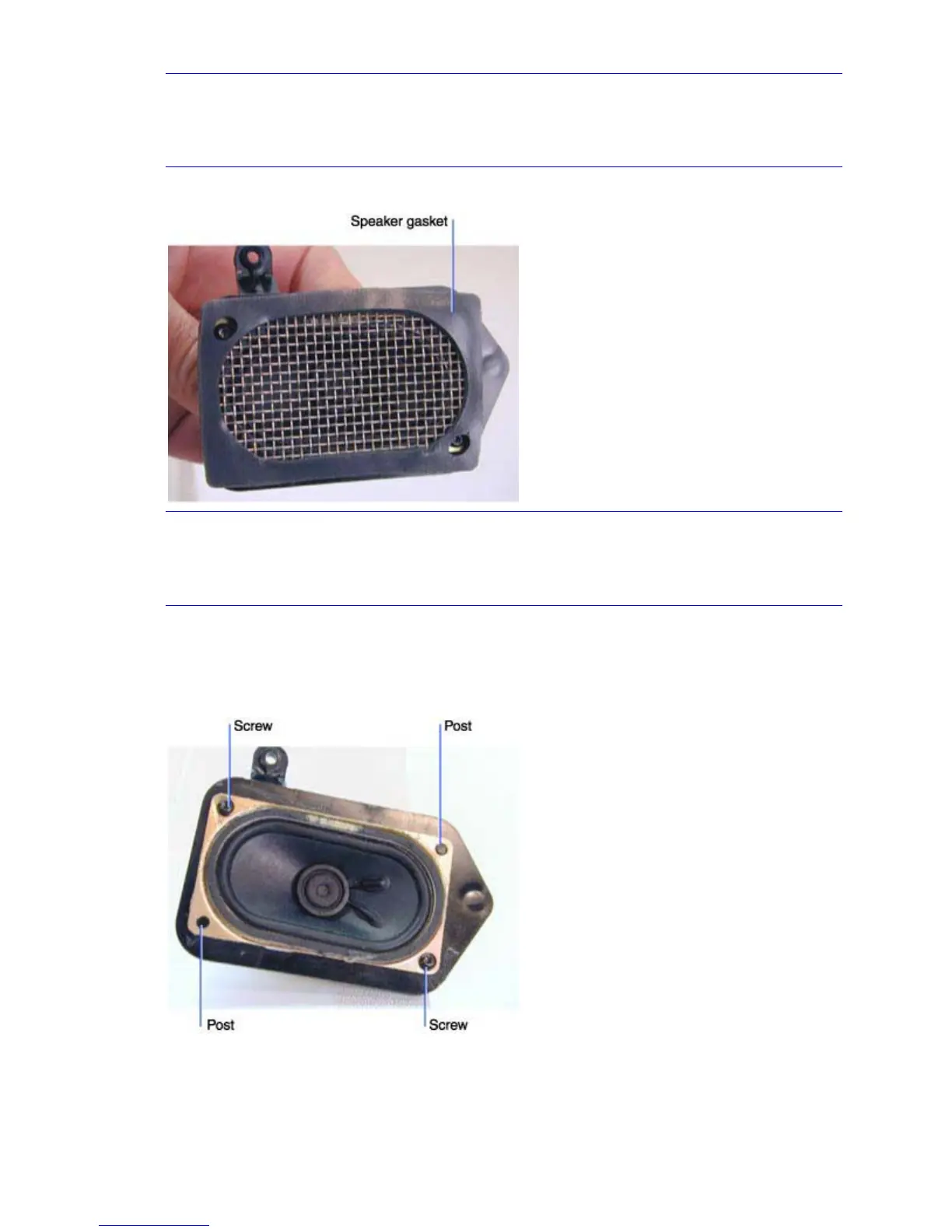

4 Peel the speaker gasket and attached screen off of the speaker and bracket. Discard the gasket.
NOTE When you disassemble the speaker assembly, the gasket and attached screen is ruined.
When you replace either the speaker or speaker bracket, you must replace the gasket at
the same time.
5 Remove the two black M3x6 Plastite Torx screws from the top of the speaker assembly. Then
separate the speaker and gasket by pressing the bottom of the speaker up through the top of the
assembly.
