LP500 Series Service Manual 29
Assembly Notes
♦ Orient speaker and the bracket so that the connectors face the end with the bracket mounting arm.
Mount the speaker on the bracket, pressing the two posts on the bracket through the two unused
screw holes on the speaker. See step 5 above.
♦ Torque the two black M3x6 cone point Torx screws to 4 in.-lbs. (.452 Nm).

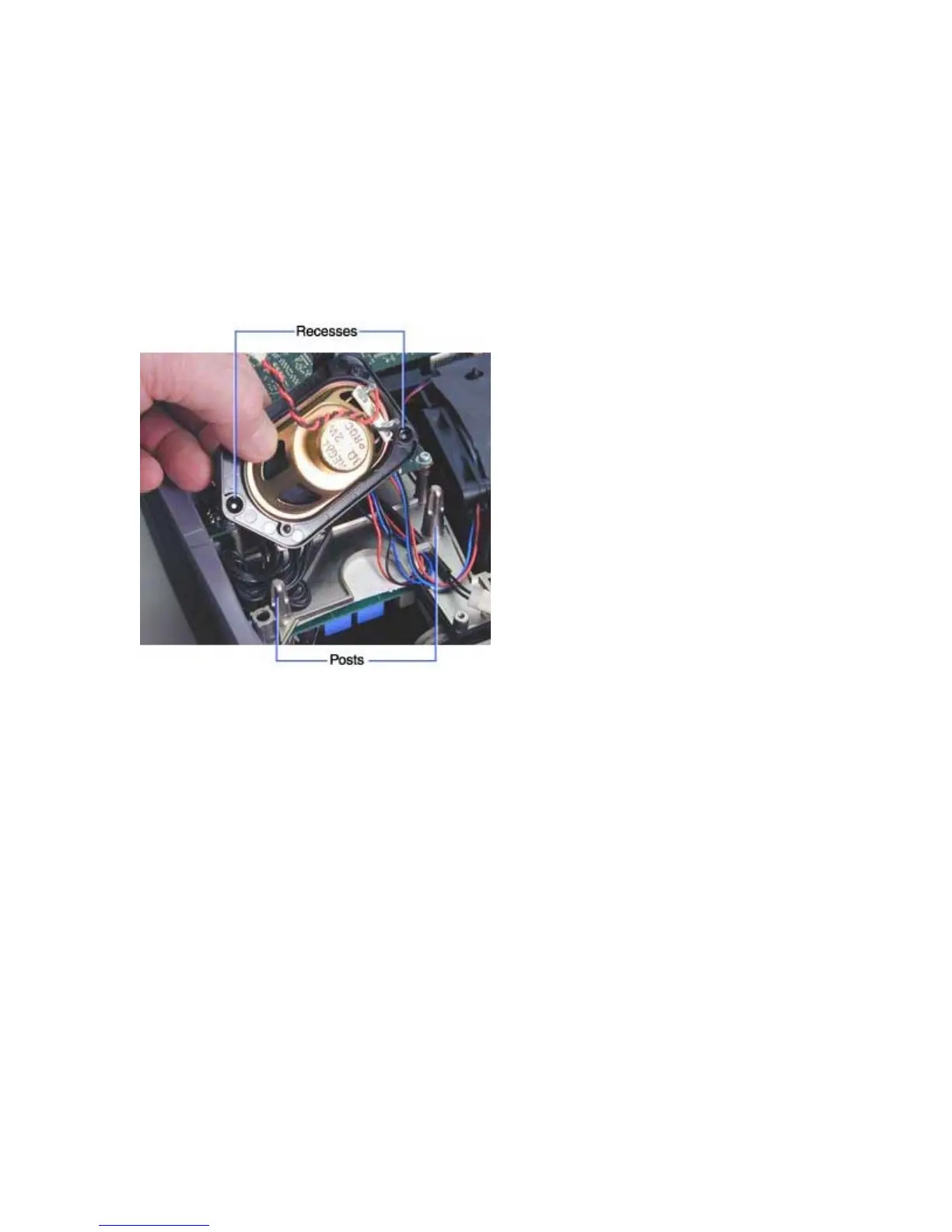

♦ Mount the speaker assembly so the two posts on the chassis mate with the two recesses on the
bottom of the speaker bracket. The mounting arm faces the front of the projector. Torque the M3x8
Torx screw to 6 in/lbs (.68 Nm).
