LP500 Series Service Manual 54
♦ Align the power supply with the screw holes on the chassis. Once the power supply is in place, flex
the rear bezel outward so that the power supply ECA will clear the tab in the center of the rear bezel.
See step 6 above.
♦ Torque the six M3x8 Torx screws to 6 in-lbs (.68 Nm). See step 5 above for screw locations.

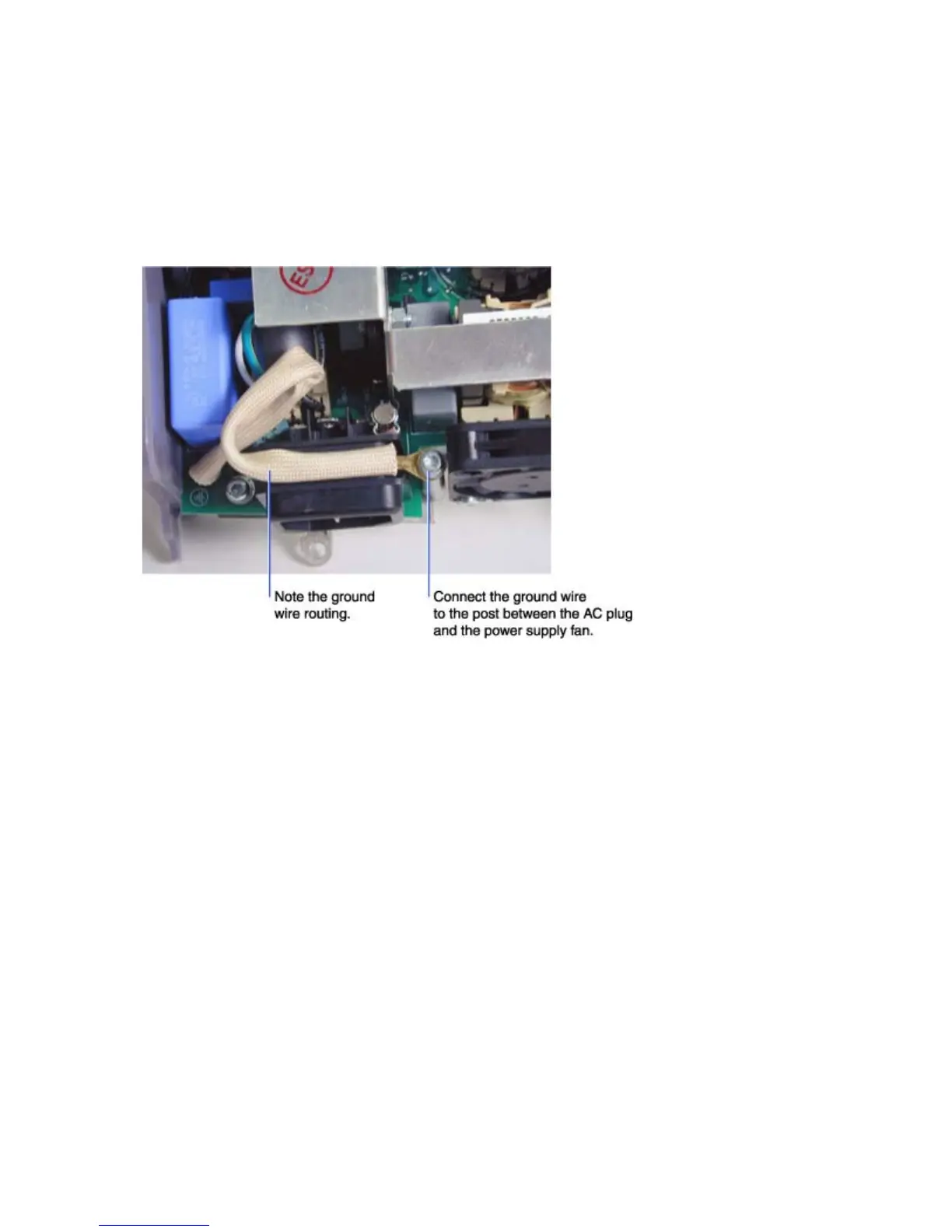

♦ Connect the ground wire to the post near the AC connector. Make sure that you route the wire as
shown below.
♦ Connect the interlock switch cable to its connector on the front of the power supply. See step 4
above.
