GA02118 User Manual BV20
<< Back to Contents
Copyright © Innovative Technology Ltd 2018 Doc: GA02118/1 User Manual BV20
Version: 1.0
Page 22 of 60
5.2 SSP and eSSP
5.2.1 General Description
Smiley
®
Secure Protocol (SSP) and Encrypted Smiley
®
Secure Protocol (eSSP) are
field proven secure interfaces specifically designed by Innovative Technology Ltd. to
address the problems by cash handling systems in gaming machines. Problems such
as acceptor swapping, re-programming acceptors and line tapping are all addressed.
This interface is recommended for all new designs. Innovative Technology Ltd.
provides full SDK packages upon request including Interface Specification,
Implementation Guide as well as source code examples for C++, C#.NET and Linux.
Please contact support@innovative-technology.com for further information.

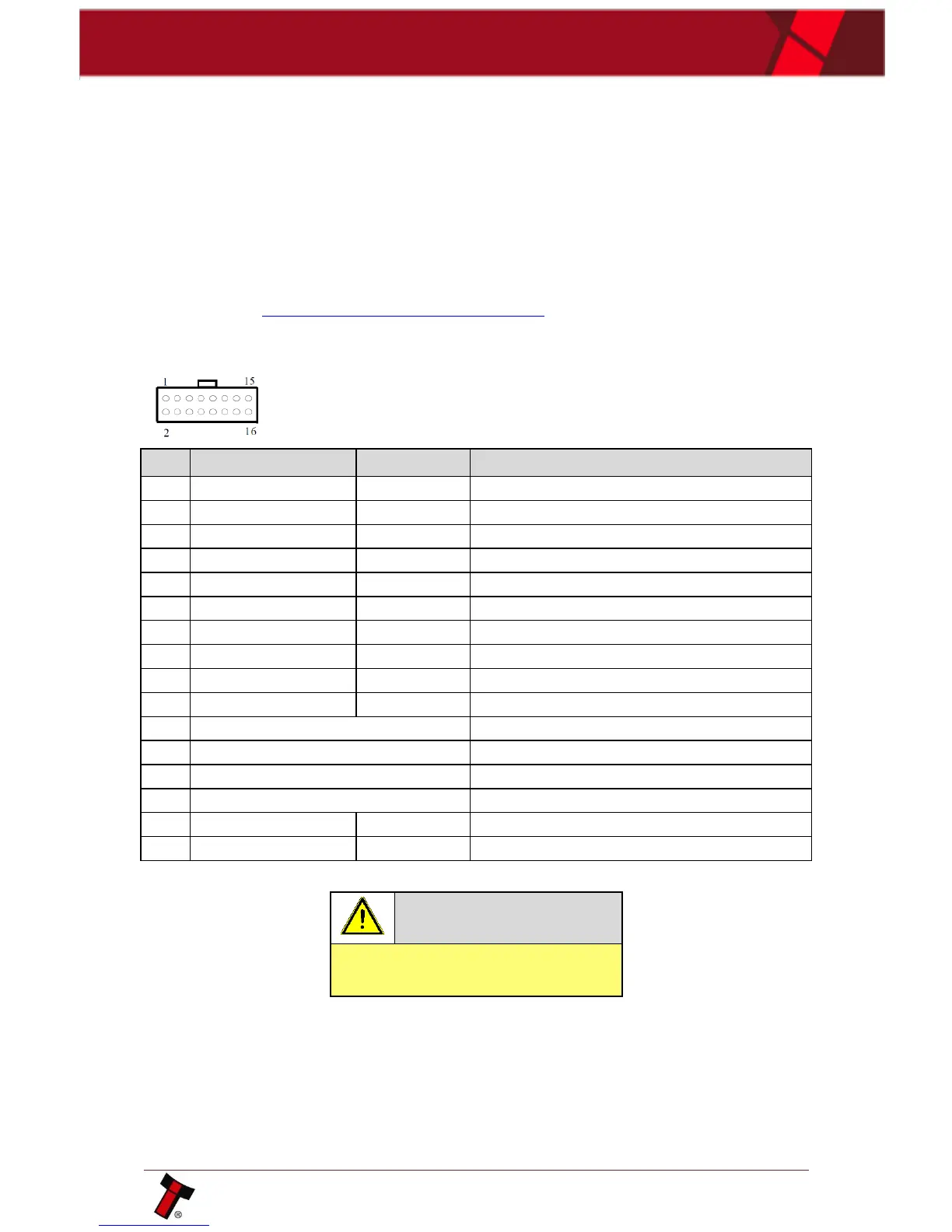

5.2.2 Pin Assignments
Pin
Name
Type
Description
1
Vend 1
Output
Serial Data Out (Tx)
2
Vend 2
Output
DA3 Data Logging
3
Vend 3
Output
Not Used
4
Vend 4
Output
Not Used
5
Inhibit 1
Input
Serial Data In (Rx)
6
Inhibit 2
Input
Not Used
7
Inhibit 3
Input
Not Used
8
Inhibit 4
Input
Not Used
9
Busy
Output
Not Used
10
Escrow
Input
Not Used
11
Factory Use Only
Factory Use Only
12
Factory Use Only
Factory Use Only
13
Factory Use Only
Factory Use Only
14
Factory Use Only
Do not connect
15
+ Vin
Power
+12VDC Supply
16
0V
Power
0V Supply (GND)
Caution!
+12VDC and 0V (GND) must
always be connected.
