5.2.3 Setup Examples

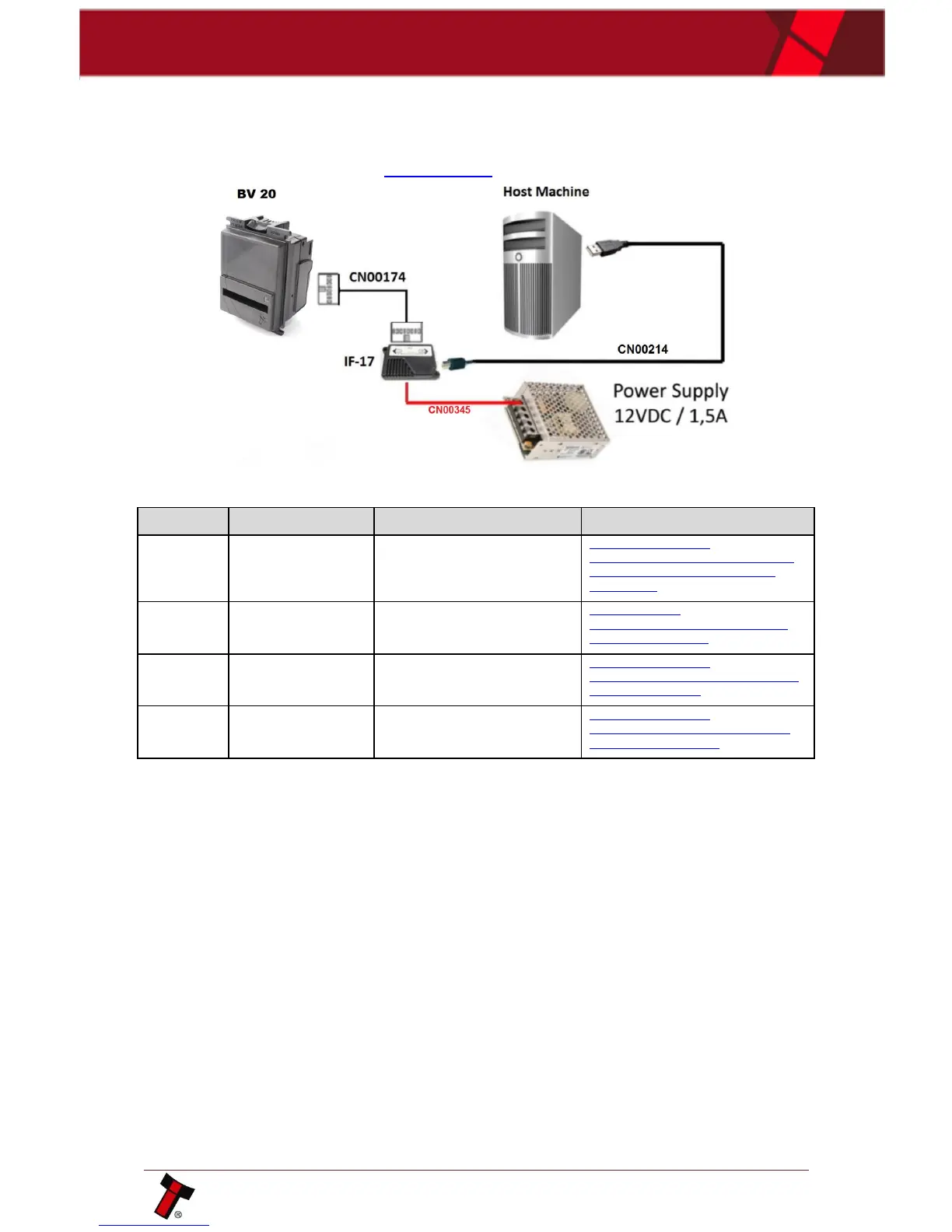

The drawings below highlights how to connect the BV20 to an SSP or eSSP host
machine using available cables and interfaces from Innovative Technology Ltd. For
cable drawings please refer to Appendix XYZ.
IF17 or other additional Setup Drawing 2 here
Type
ITL Part Number
Description
Details
Cable
CN00174
Ribbon Cable
http://www.innovative-
technology.com/shop/cables/dual-essp-
interface-for-smart-hopper-a-smart-
payout-detail
Cable
CN00345
DA3 / IF17 / IF18 Power Cable
http://innovative-
technology.com/shop/cables/da3-if17-
if18-power-cable-detail
Cable
CN00214
USB Type A to B
http://www.innovative-
technology.com/shop/cables/usb-a-to-b-
cable-assembly-detail
Interface
IF17
TTL to USB Converter
http://www.innovative-
technology.com/shop/accessories/if17-
interface-converter-detail
