Innovative Technology BV20 - Pinout

GA02118 User Manual BV20
<< Back to Contents
Copyright © Innovative Technology Ltd 2018 Doc: GA02118/1 User Manual BV20
Version: 1.0
Page 31 of 60
•$1 would be displayed as 1.00
•1K Columbia would be displayed as 1.000
Please contact support@innovative-technology.com for further information.
Caution!
Innovative Technology Ltd.
provides full SDK packages
including Interface Specification,
Implementation Guide as well as
source code examples for SSP
respectively eSSP only!

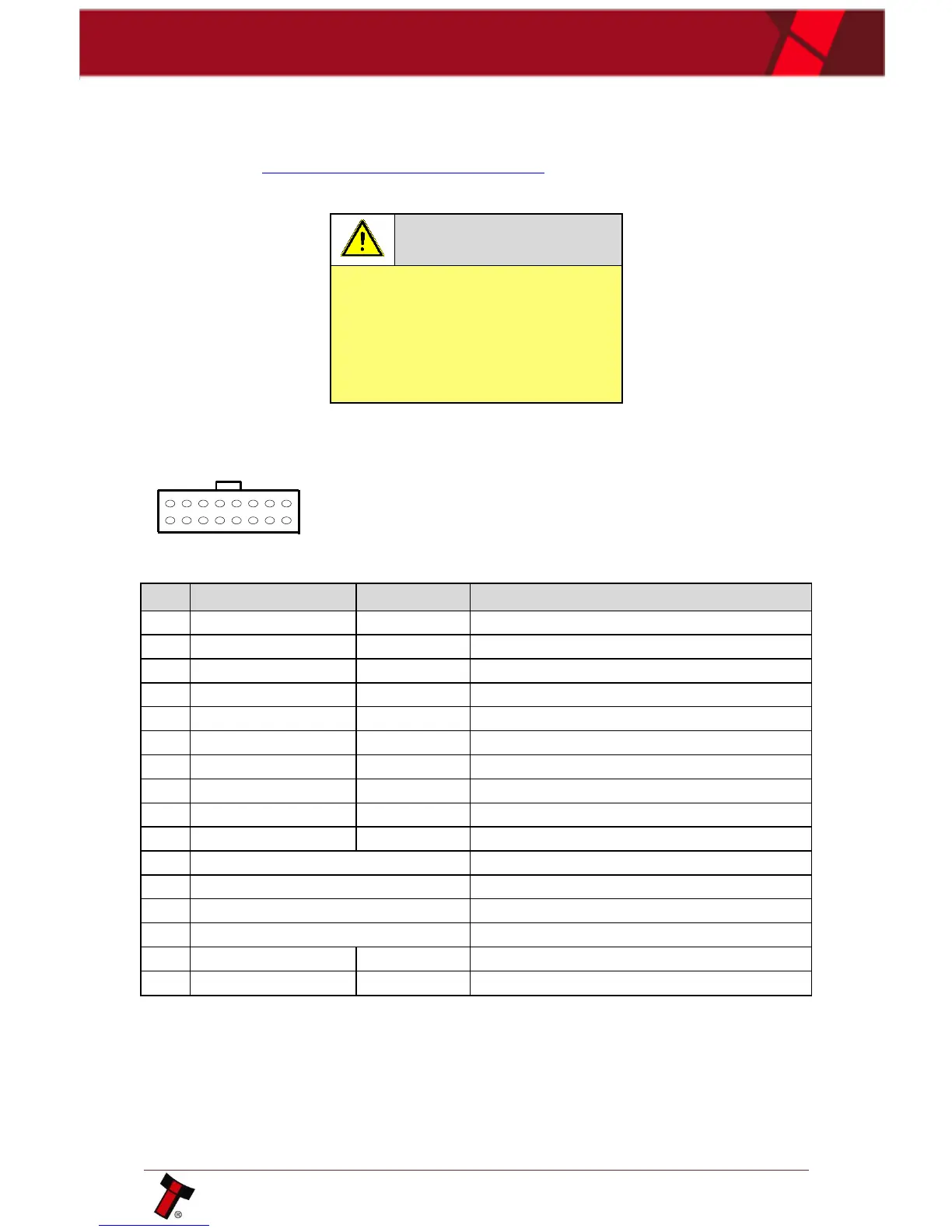

5.5.2 Pinout
Pin
Name
Type
Description
1
Vend 1
Output
Serial Data Out (Tx)
2
Vend 2
Output
Not Used
3
Vend 3
Output
Not Used
4
Vend 4
Output
Not Used
5
Inhibit 1
Input
Serial Data In (Rx)
6
Inhibit 2
Input
Not Used
7
Inhibit 3
Input
Not Used
8
Inhibit 4
Input
Not Used
9
Busy
Output
Not Used
10
Escrow
Input
Not Used
11
Factory Use Only
Do not connect
12
Factory Use Only
Do not connect
13
Factory Use Only
Do not connect
14
Factory Use Only
Do not connect
15
+ Vin
Power
+12VDC Supply
16
0V
Power
0V Supply (GND)
1
2
16
15
