Ventway Sparrow User Manual
Page 24 of 144
5.2. VENTILATOR – FRONT PANEL
5.3. VENTILATOR – REAR PANEL
Warning: Do not block item (1), the air/oxygen inlet.
5.3.1. VENTILATOR – USE CONFIGURATION
During transport, the ventilator is recommended to be placed in a horizontal
position.
Rear Pane: (1) Air/Low pressure oxygen inlet, (2) Power supply connector, (3) USB
connector,
(4) Power On/Off button, (5) Battery pack lock, (6
(7) Filter compartment screws, (8) Anti asphyxia valve

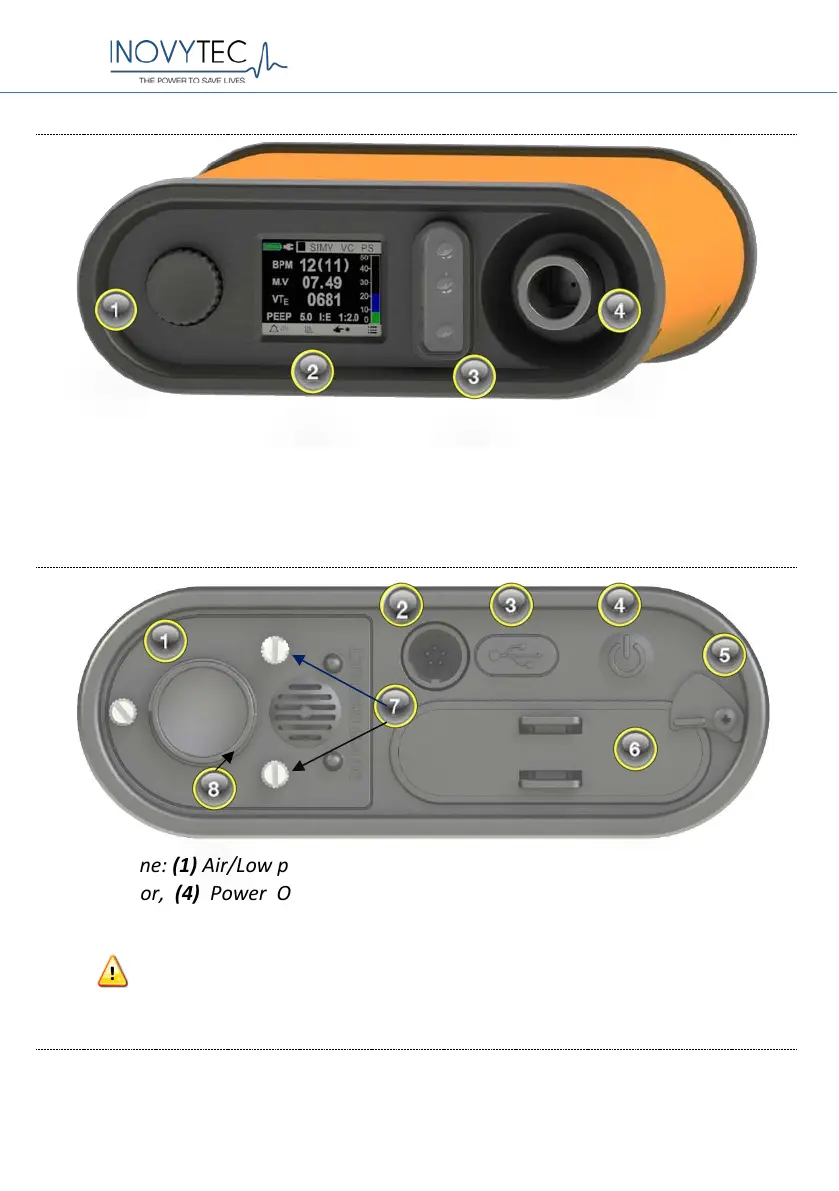

Front Panel: (1) control knob, (2) display, (3) control and sensing tubes port,
(4) patient port
