11.6. CHARACTERISTICS OF ALARM INDICATOR LIGHTS
High level alarm appears as follows:
Indicator color for high level alarm is red.
Flashing frequency = 2 Hz. Duty cycle =
50%
Medium level alarm appears as follows:
Indicator color for medium level alarm is
yellow. Flashing frequency = 0.45 Hz.
Duty cycle = 50%
Low level alarm appears as follows:
Indicator color for low level alarm is
yellow. Flashing frequency is constant
(on). Duty cycle = 100%

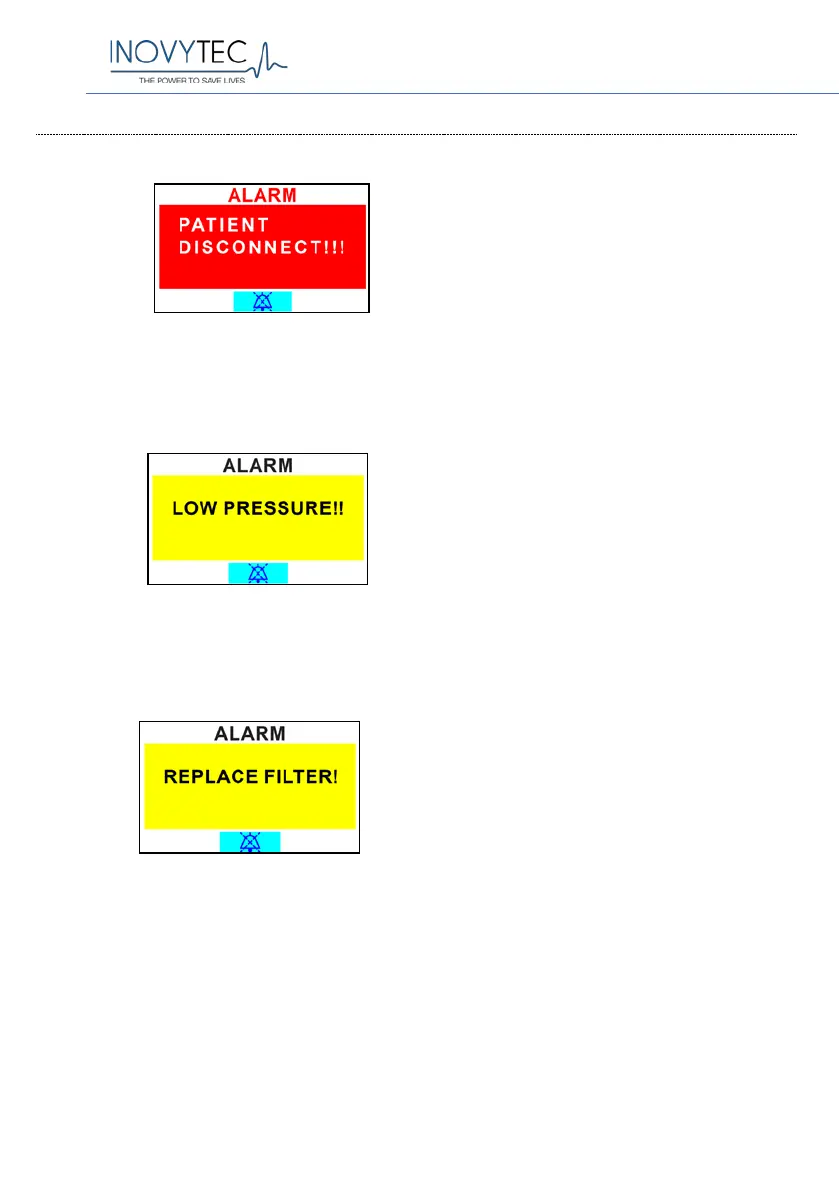

Example of high level alarm
Example of medium level alarm
Example of low level alarm
