5.4. PATIENT CIRCUIT
Patient circuits specifications
Adult
Pediatric
Nominal overall length
180 / 240 cm
180 / 240 cm
Internal volume
690 / 920 CC
318 /424 CC
Inspiratory Resistance to flow
2.7 cmH
2
O @ 60
lpm
5.4 cmH
2
O @ 30 lpm
Dead space
17 cc
16.5 cc
Circuit compliance
0.001 L/cmH
2
O
0.0008 L/cmH
2
O
Corrugated tube diameter
22 mm
15 mm
Delivered tidal volumes
100 - 2000 cc
50 - 250 cc
Exhalation valve cap and knob color
Transparent
Blue
An authorized HME and anti-bacterial filter must be used at all times, in order
to protect both patient and ventilator from infection.
Assemble the filter between the patient and transducer; if not possible, then
between the ventilator outlet and the patient circuit 22 mm connector.

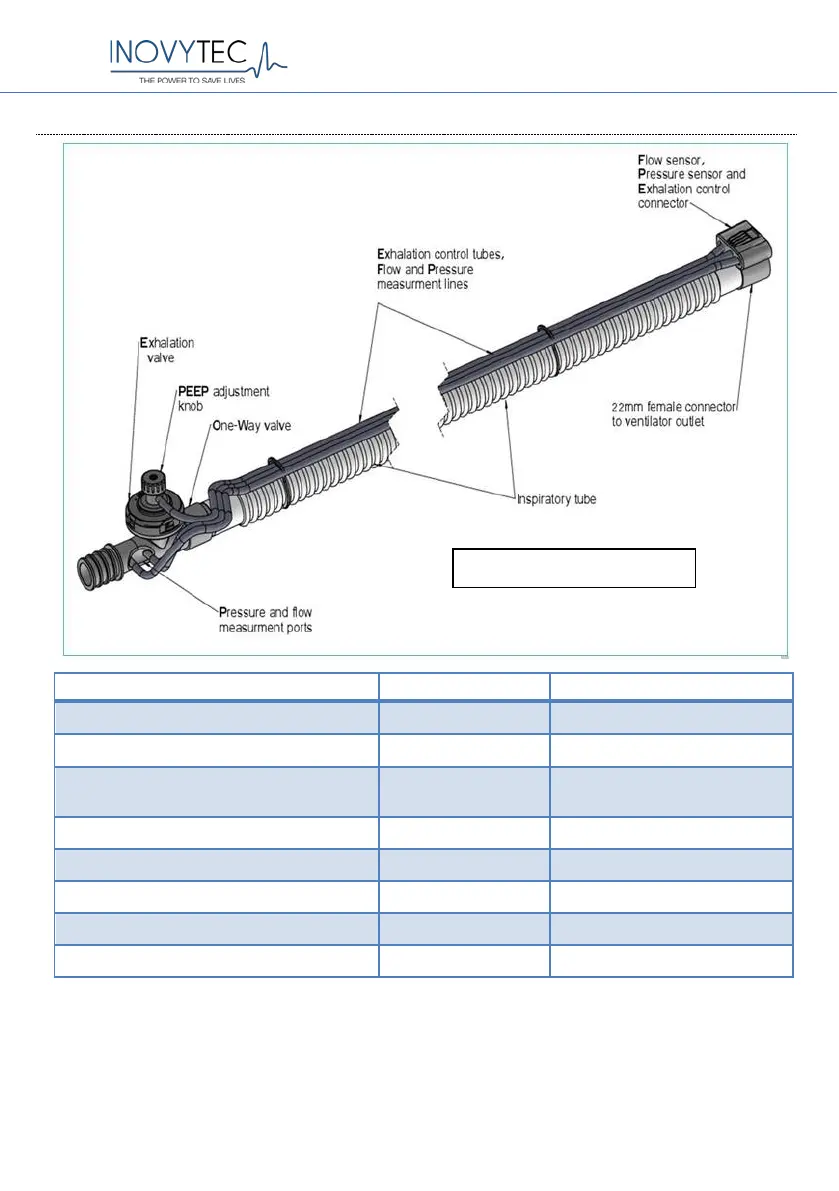

Diagram of patient circuit
