12.1.1.1. CONNECTING THE AIR INLET TO THE OXYGEN MIXER
The Oxygen Mixer is connected to the device as shown below. The Oxygen
Mixer connector is specially threaded to fit securely on top of the air/oxygen
inlet.

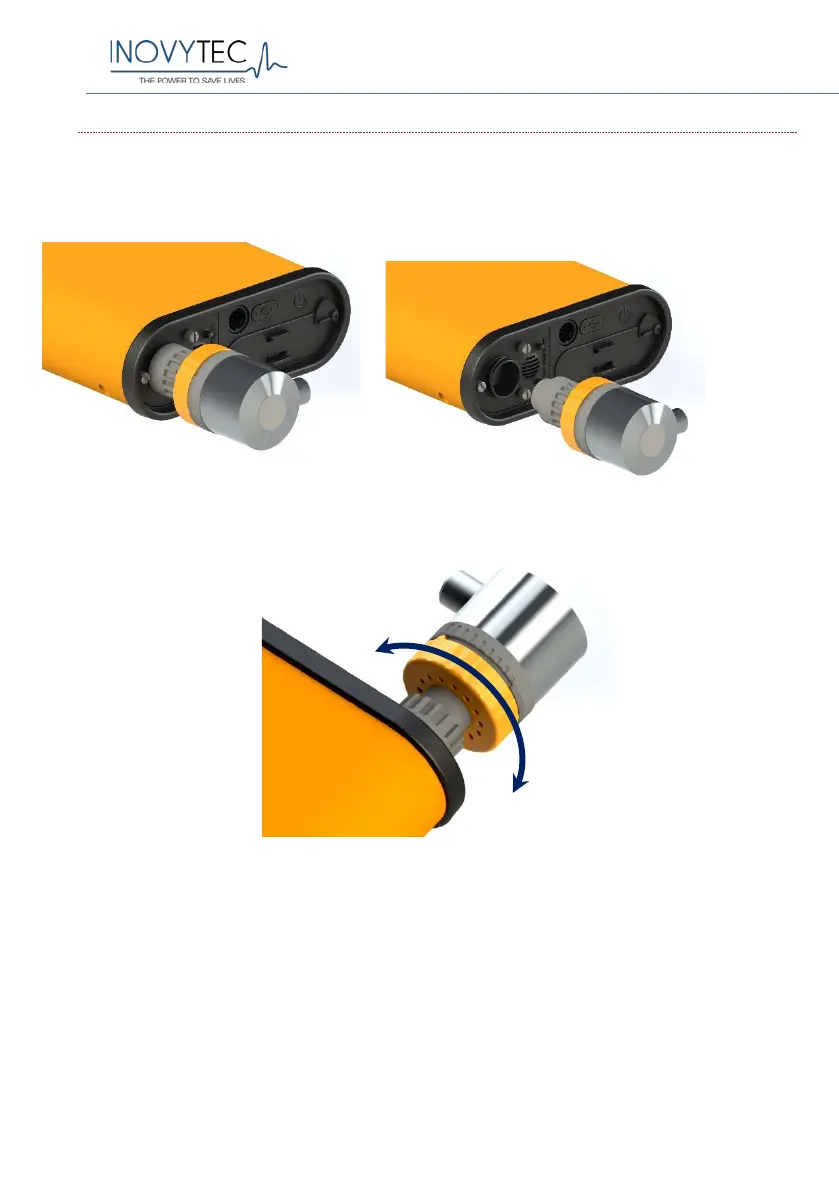

Connecting the Oxygen Mixer to the air inlet connector
The Oxygen Mixer may be adjusted to mix atmospheric air and oxygen in
ratios between 30% to 95%. The user may change the oxygen percentage
of the gas mixture by rotating a knob at the base of the Oxygen Mixer.
The high pressure connection to the Oxygen Mixer should be performed
using a standard female DISS connector.
