Intel 6 SERIES

Development Kit Features
2
nd
Generation Intel
®
Core™ Processor with Intel
®
6 Series Chipset Development Kit
User Guide March 2011
22 Document Number: 325208-001
3 Development Kit Features

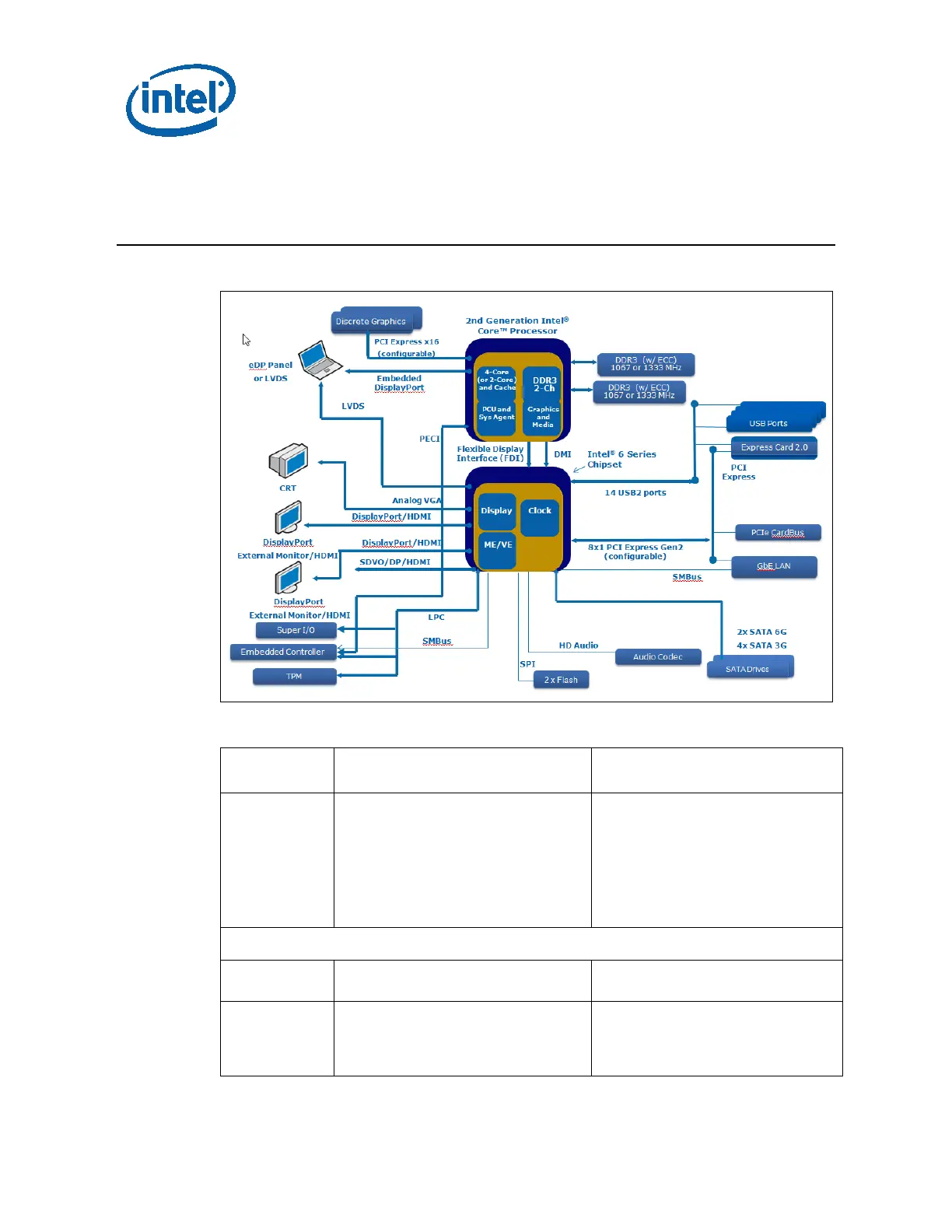

Figure 1. Development Board Block Diagram
Table 5. Development Board Feature Description
Feature
Development Board
Implementation
Description
Processor
Intel
®
Core™ i7/i5-Mobile processor
supported in 989-pin rPGA package
in Socket-G
Supports two DDR channels. The
development board supports x4 (in
each direction) Direct Media
Interface (DMI), two interfaces
working at 5 GT/s; the board
supports x4 Intel
®
Flexible Display
Interface (Intel
®
FDI); max
supported speed is 2.7GT/s
Intel
®
6 Series Chipset 989-pin FCBGA footprint
Memory 2x DDR3 SO-DIMM slots
The development board supports
DDR3 frequency of up to 1333 MHz.
External
Graphics
1x PCIe x16 graphics slot
Can be supported as: 1x16 PEG
through x16 PEG slot on board.
Supports Gen 2 speeds (5 GT/s).
