Quick Start
2
nd
Generation Intel
®
Core™ Processor with Intel
®
6 Series Chipset Development Kit
User Guide March 2011
58 Document Number: 325208-001

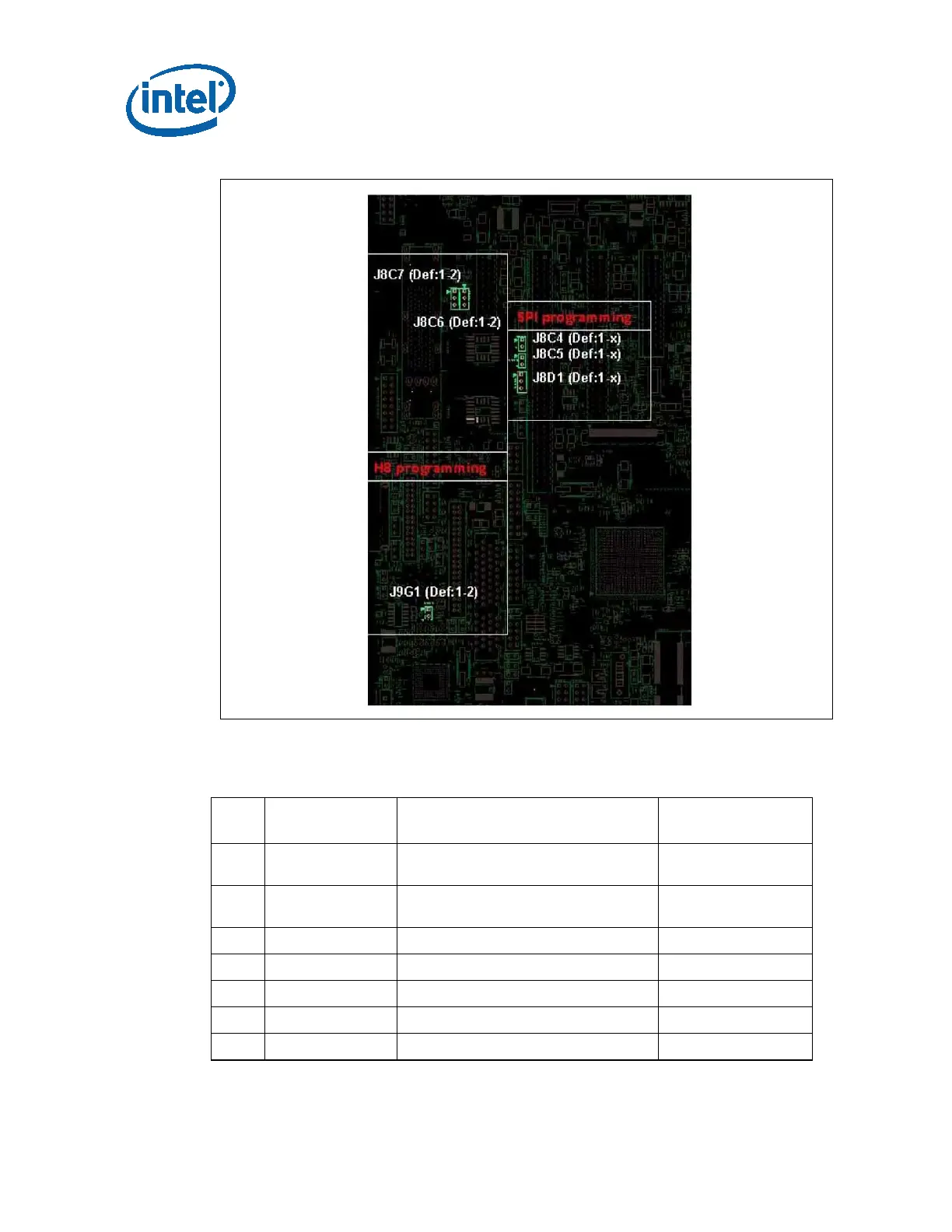

Figure 15. Jumpers for Programming SPI and H8
The jumper pins that need to be shorted by default are:
Table 25. Key Jumpers
#
Reference
Designator
Description Default Setting
10
J4B1 ON BOARD DDR3 THERMAL SENSOR (1-2)
11
J4B3 ON BOARD DDR3 THERMAL SENSOR (1-2)
12
J1J1 PM EXTTS CONTROLLER (2-3)
13 J7D1 PCIe SLOT4 POWER CONTROL (2-3)
14
J7B2 PCIe SLOT 3 POWER CONTROL (2-3)
15 J9H3 SATA DEVICE STATUS (PORT 4) (1-2)
16 J9H5 SATA DEVICE STATUS (PORT 0) (1-2)
