4 Development Board Summary
4.1 Features
The following figures show the major components of the development board, and
Table 17
gives a brief description of each component.

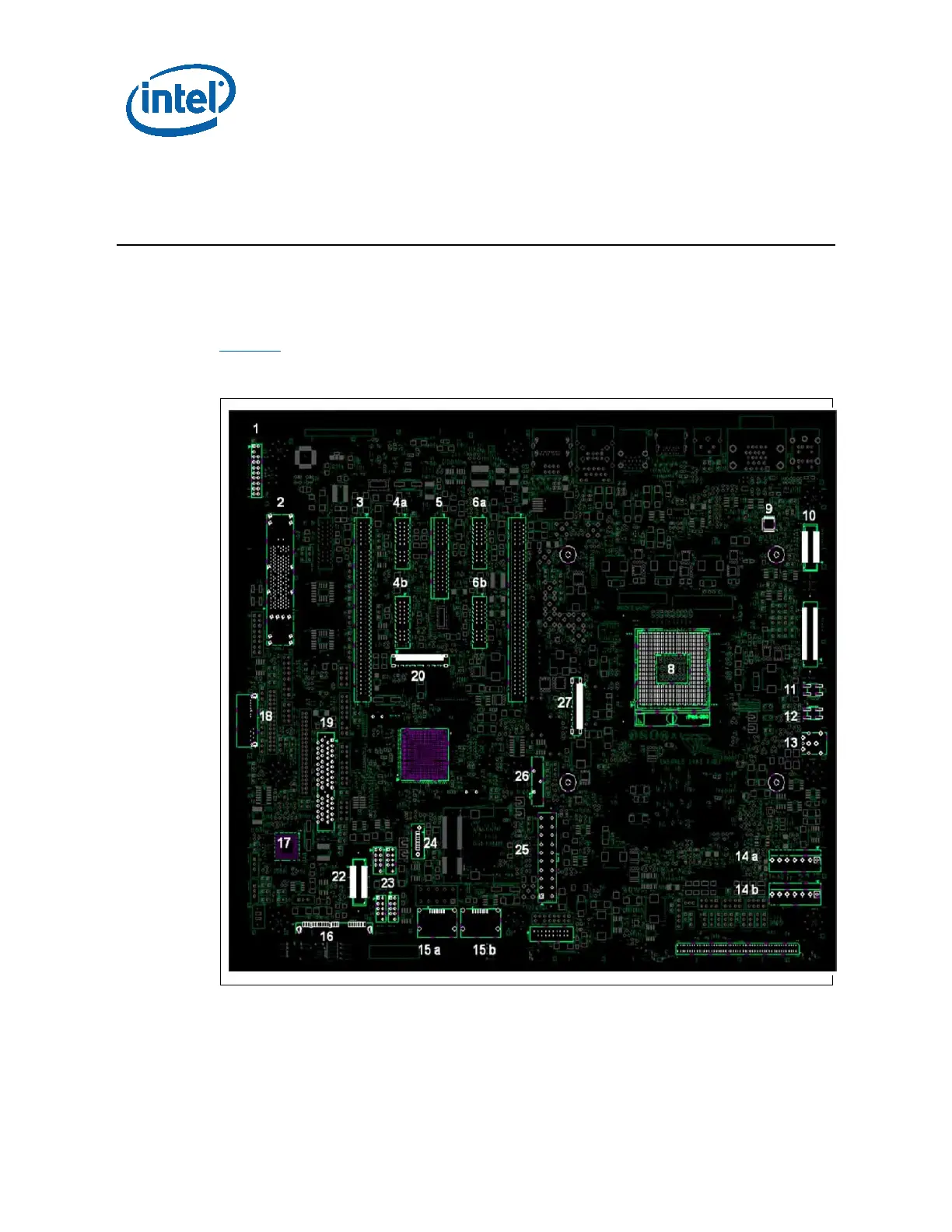

Figure 12. Development Board Components – Top View
