Intel 6 SERIES

Development Kit Features
2
nd
Generation Intel
®
Core™ Processor with Intel
®
6 Series Chipset Development Kit
User Guide March 2011
36 Document Number: 325208-001
• 2x HDMI/DVI + 1x DP
• 1x DP + 1x HDMI/DVI + 1x SDVO

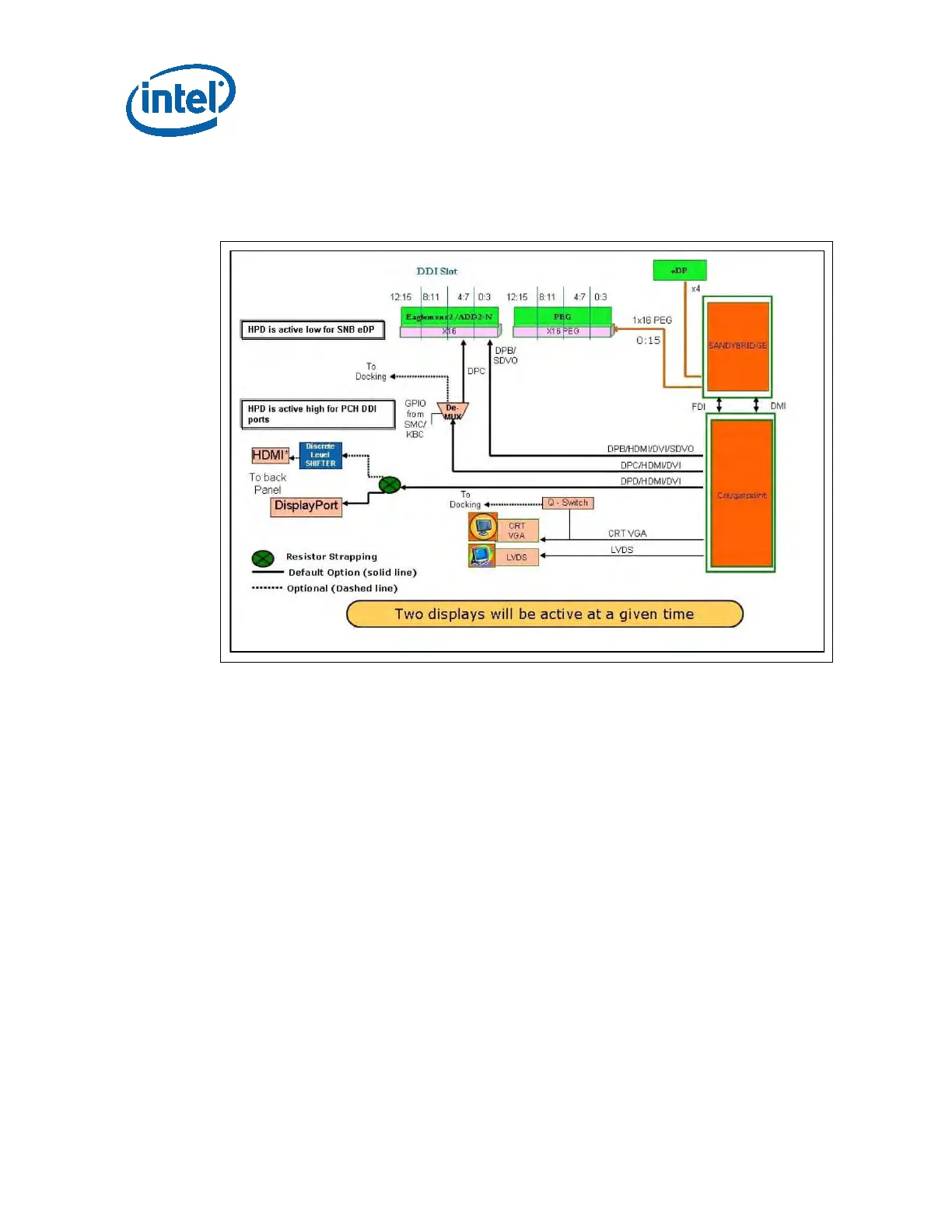

Figure 6. Display Ports On-Board
3.2.7.1 DP/HDMI Support
One DP and one HDMI connector are provided on the development board.
Port D of the Digital Display Interface on the PCH is mapped to on-board DP, HDMI,
and DMC connectors.
DP is the default configuration. To select HDMI, rework is required.
For HDMI:
1. UNSTUFF C5A3, C5A4, C5A5, C5A6, C5B1, C5B2, C5B3, C5B4
2. STUFF R5A3, R5A4, R5A5, R5A6, R5B1, R5B2, R5B3, R5B4, R3M6, R2N4,
R2A3, R3M2, R3A11 (with 0-Ohms)
For HPD:
1. UNSTUFF R4A2 and STUFF R4A1 with 0 Ohms
