Intel 6 SERIES User Manual

Development Kit Features
2
nd
Generation Intel
®
Core™ Processor with Intel
®
6 Series Chipset Development Kit
User Guide March 2011
38 Document Number: 325208-001
used for eDP switchable graphics, Ports C and D can be used (see the following
procedure).
Switchable Graphics with eDP over PCH
Display Port D of the PCH can be configured as eDP (Embedded Display Ports). The
development board can support switchable graphics with eDP, from the PCH, as
display.

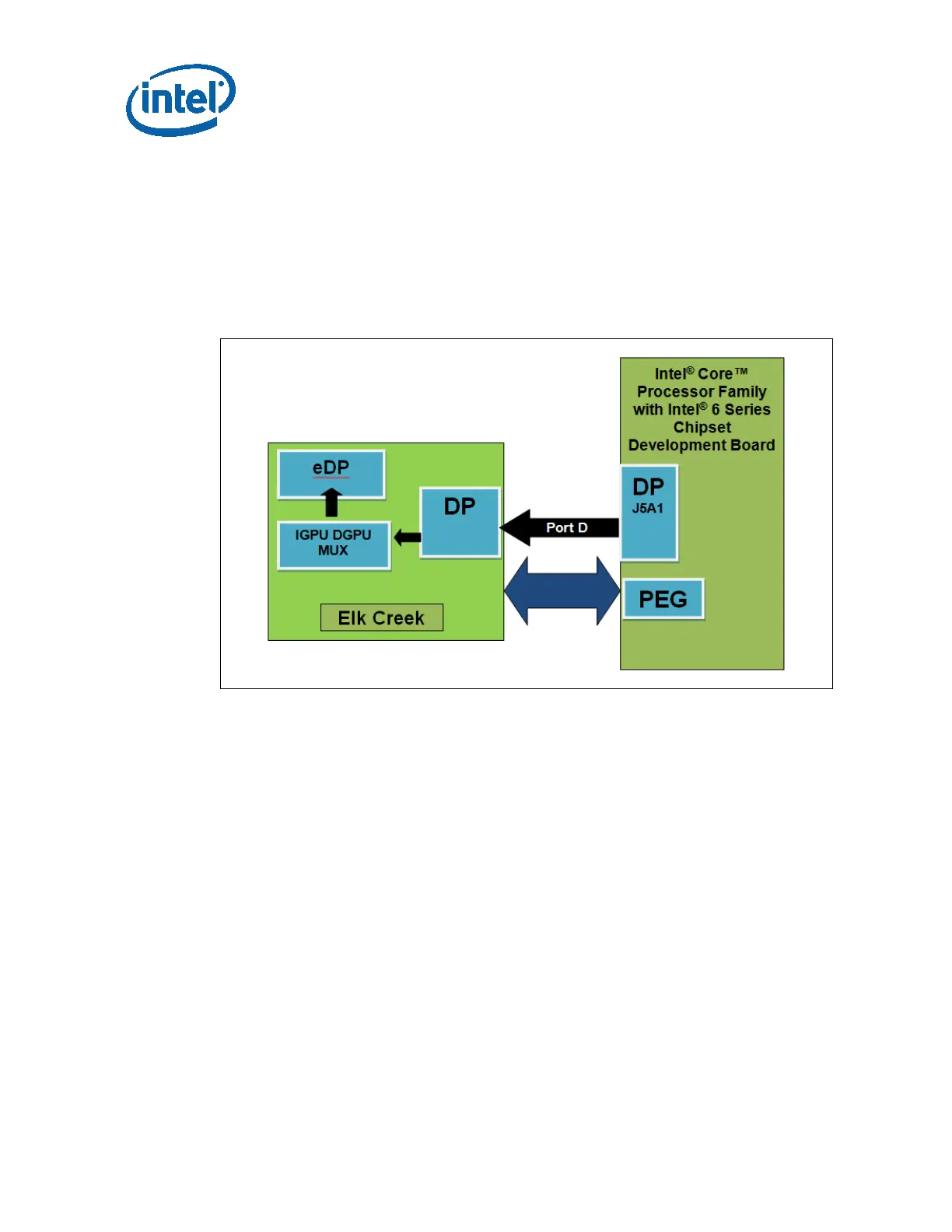

Figure 8. Switchable Graphics with eDP from PCH
eDP over Port D
Use the following step:
1. Connect a cable from on-board DP (J5A1) connector to Elk Creek DP
Connector.
3.2.8 USB Connectors
3.2.8.1 USB2.0
The PCH provides fourteen USB 2.0/1.1 ports.
Two ports (0 and 1) are routed to a stacked dual USB and DP connector (J5A1), and
two (ports 2 and 3) are routed to a stacked dual USB2.0 connector (J3A2) at the back
panel.
Two more USB ports (8 and 9) are routed to RJ45 plus Dual USB Connector (J4A1) on
the back of the chassis.

Intel 6 SERIES Specifications

General

Chipset Series	6 Series
Code Name	Cougar Point
Max # of SATA 3.0 Ports	2
Max # of SATA 2.0 Ports	4
Socket Support	LGA1155
PCI Express Version	2.0
SATA Ports	6
USB Ports	14
Chipset	Intel H61 Express Chipset, Intel H67 Express Chipset, Intel P67 Express Chipset, Intel Z68 Express Chipset
Memory Support	DDR3
RAID Support	Yes
Integrated Graphics	Yes
Overclocking Support	Yes (P67, Z68)
TDP	6.1W
Launch Date	Q1'11
Supported Processor Series	2nd Generation Intel Core Processors
Release Date	Q1'11
