Intel 6 SERIES

Development Board Summary
2
nd
Generation Intel
®
Core™ Processor with Intel
®
6 Series Chipset Development Kit
User Guide March 2011
50 Document Number: 325208-001

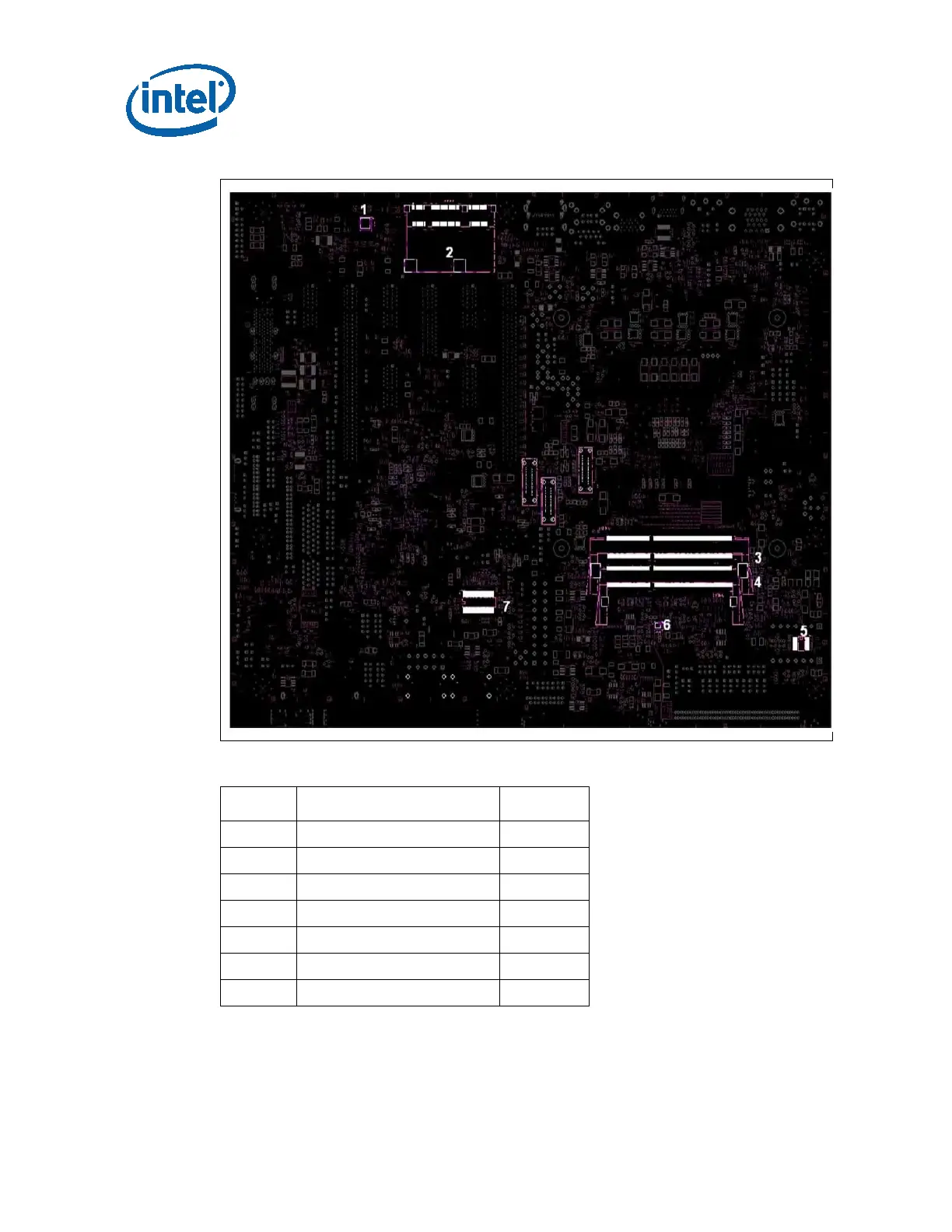

Figure 13. Development Board Components - Bottom View
Table 18. Development Board Components List - Bottom View
Item Description Ref Des
1 LAN PHY EU7M1
2 Display Mini PCIe connector J7M1
3 DDR Channel A J4U1
4 DDR Channel B J4V1
5 I
2
C Hub U1W1
6 DDR3 VR EU3W1
7 CK505 EU6V1
