4.2.5.3. The FMCB NRZ Tab
Similar control functions with the QSFPDD NRZ tab except for the port selection.

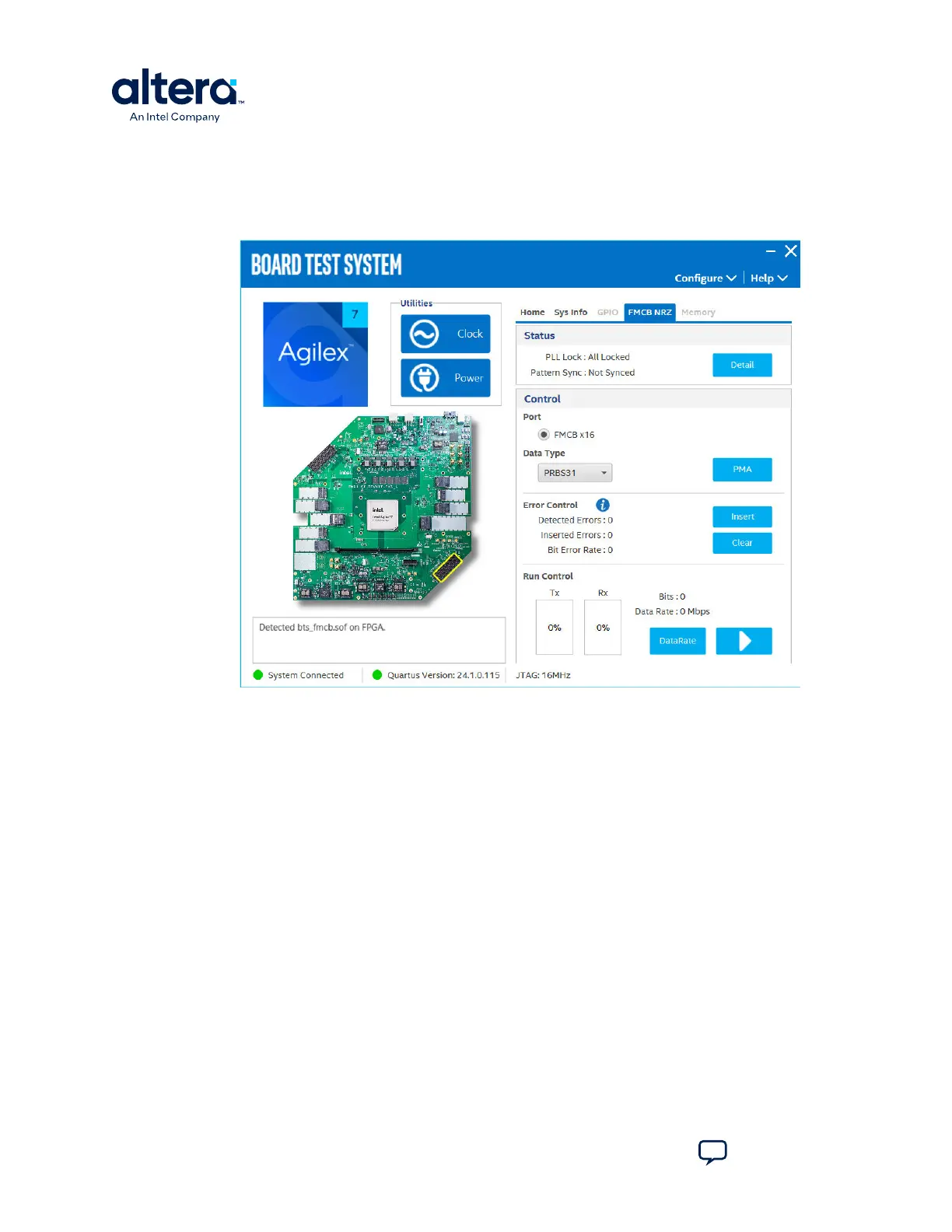

Figure 17. The FMCB NRZ Tab
