4.2.5.4. The QSFPDD400/QSFPDD800 PAM4 Tab
Similar control functions with the QSFPDD NRZ tab except for the port selection. DK-
SI-AGI040FES has QSFP-DD400 PAM4, while DK-SI-AGI040EA has QSFP-DD800
PAM4.

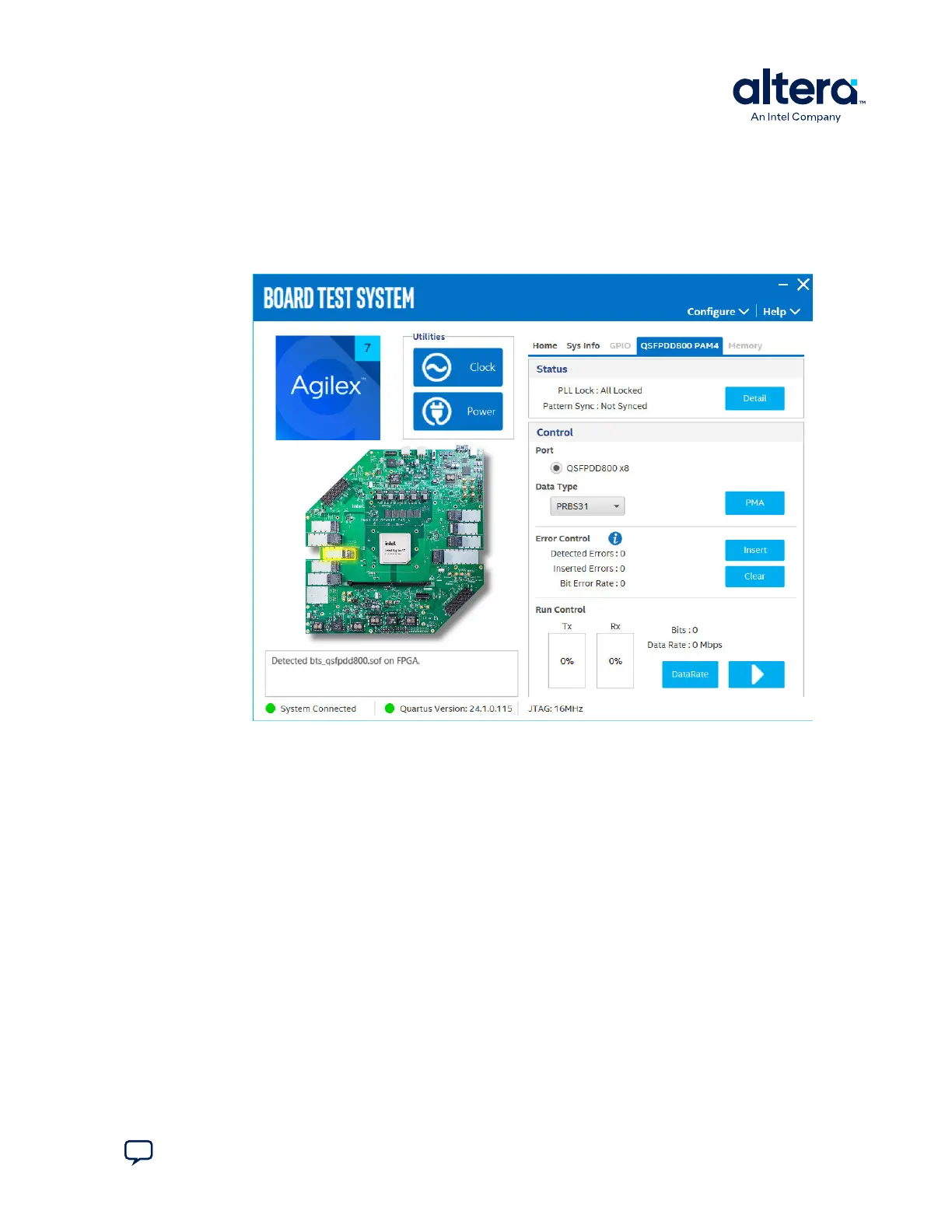

Figure 18. The QSFPDD400/QSFPDD800 PAM4 Tab
