4.2.5.5. The QSFP NRZ Tab
Similar control functions with the QSFPDD NRZ tab except for the port selection.

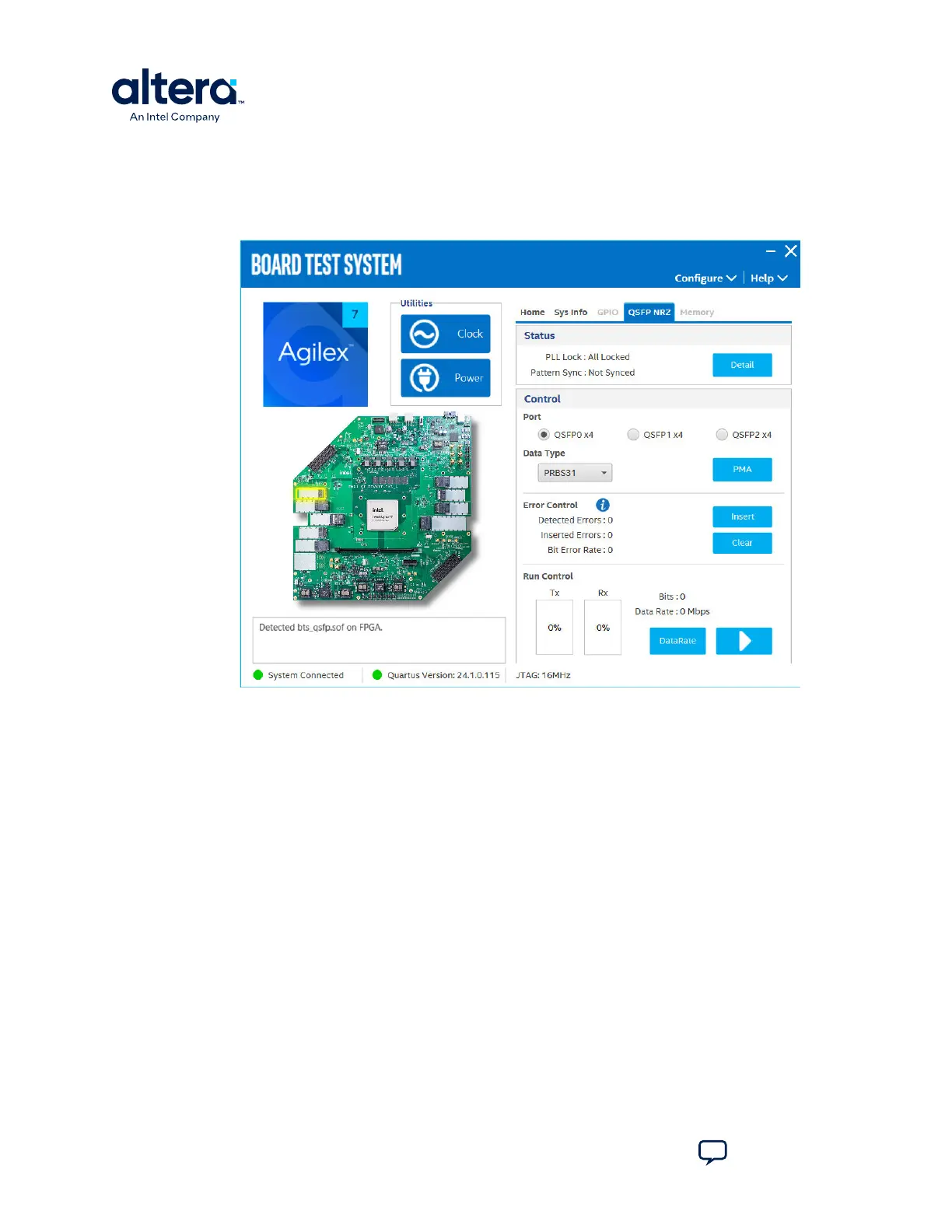

Figure 19. The QSFP NRZ Tab
