Reworks

User Guide Intel Confidential 41

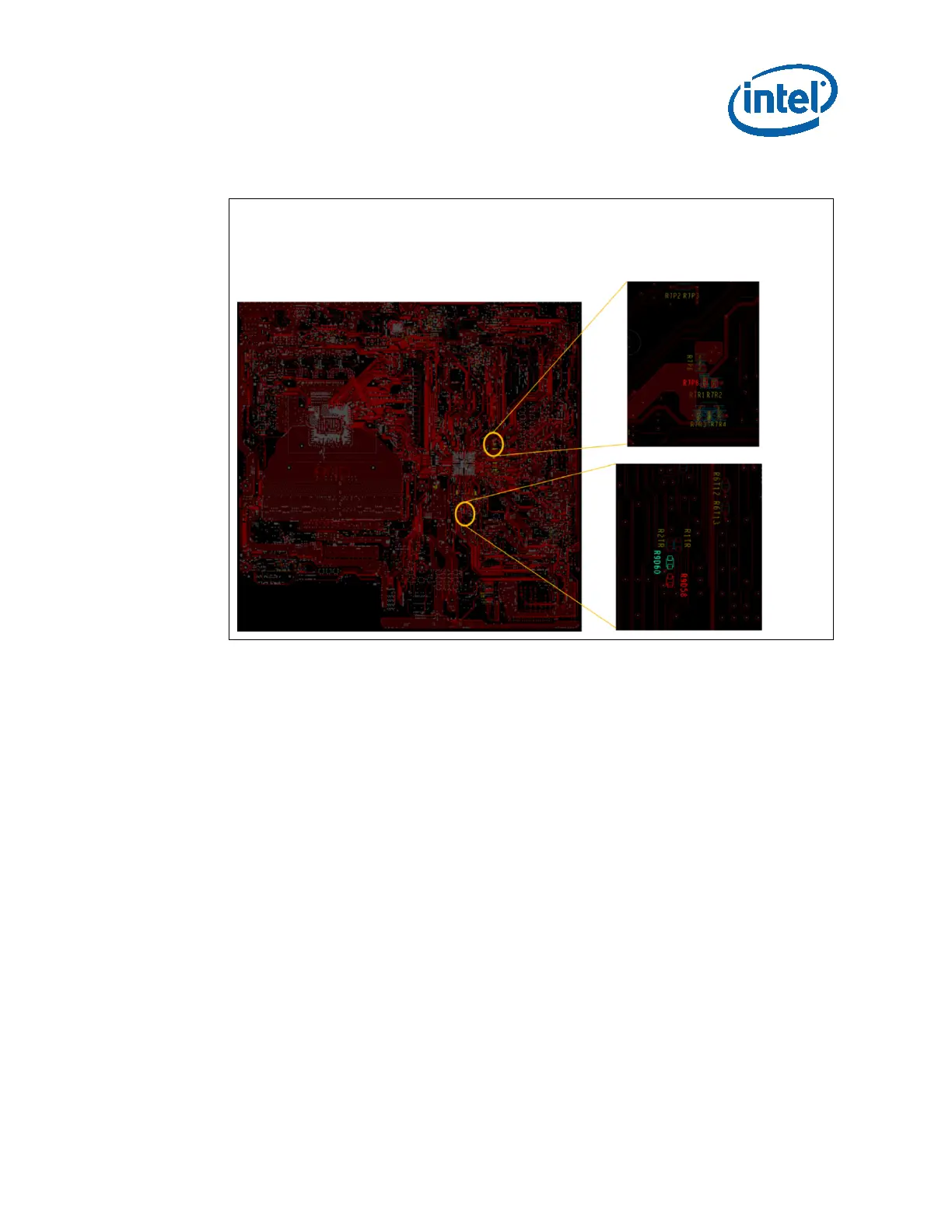

Figure 21. Layout Snapshot – Bottom

8.1.2 Rework to Avoid Leakage from EC to PCH in eSPI Mode

Description: With DSx in LPC being a POR, EC binary made a change to drive HIGH

on SUSACK pin. Since EC has a common binary for LPC/eSPI mode, this signal is kept

HIGH in both LPC and eSPI mode. This HIGH signal of 3.3V from EC causes a leakage

to 1.8V SUSACK pin in the PCH in eSPI mode causing board to be stuck at EC09

POSTCODE. This rework will disconnect the SUSACK path in eSPI mode.

Impact of implementing the rework:

Board will boot normally after this rework in

eSPI mode

STUFF IS GREEN COLORED

UNSTUFF IS RED COLORED
