Reworks

User Guide Intel Confidential 87

Details: SMT Resistor rework.

Applicable To: H3AZ01, H3AZ02, H4BZ01, H5AZ02, H3BZ02

Table 17. Rework Detail

Action Item RefDes Description of Existing

Part

Description of New

Part

Replace Resistor R6D41,

R6D40

0Ohm, 5%, 402, 1/16W

0.1uf, 5%, 402, 25V

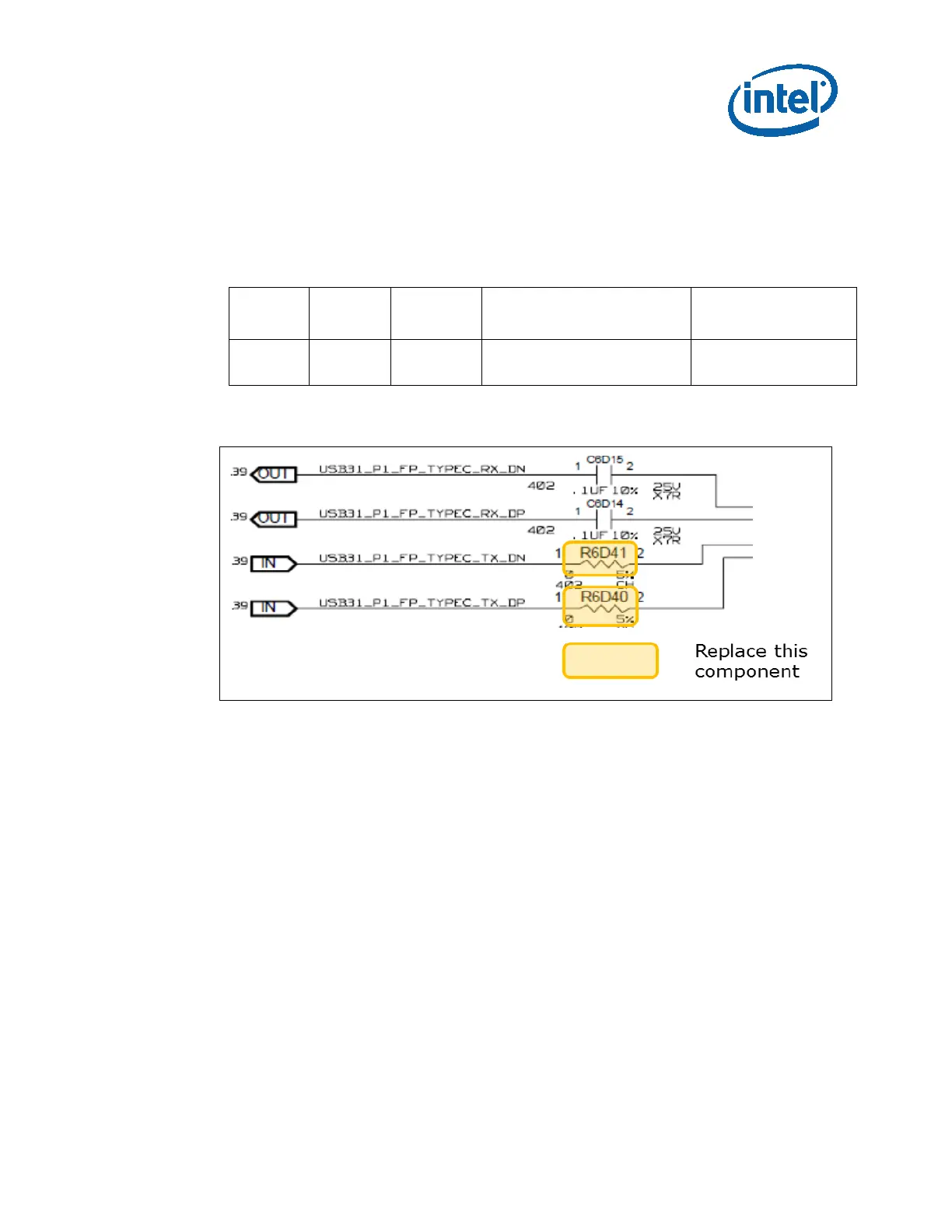

Figure 77. Schematic Snapshot
