Reworks

User Guide Intel Confidential 83

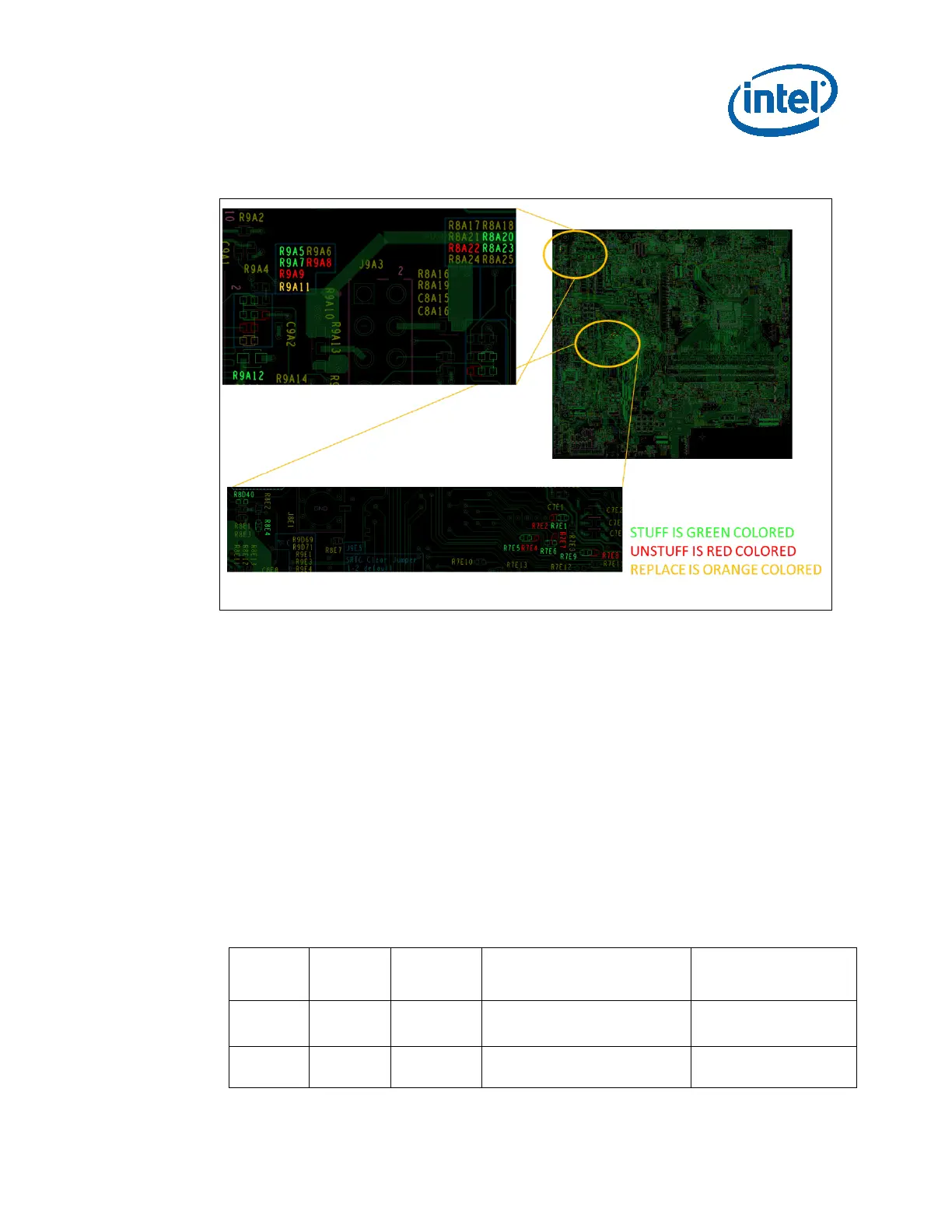

Figure 71. Layout Snapshot – Top Layer

8.3 Optional Reworks

8.3.1 Rework to Enable Gated CLKREQ for LAN

Description: This rework is enable the CLKREQ signal from LAN to PCH

Impact of implementing the rework:

CLKREQ needs to be gated and not free

running in the BIOS.

Details: Resistor stuff and replace

Applicable To: H3AZ01, H3AZ02, H4BZ01, H3BZ02

Table 15. Rework Detail

Action Item RefDes Description of Existing

Part

Description of New

Part

Stuff Resistor R3A7 NA

0 Ohm, 5%, 402

Replace Resistor R2A12 10kOhm, 1%, 402, 1/16W 100kOhm, 1%, 402,

1/10W
