Reworks
72 Intel Confidential User Guide

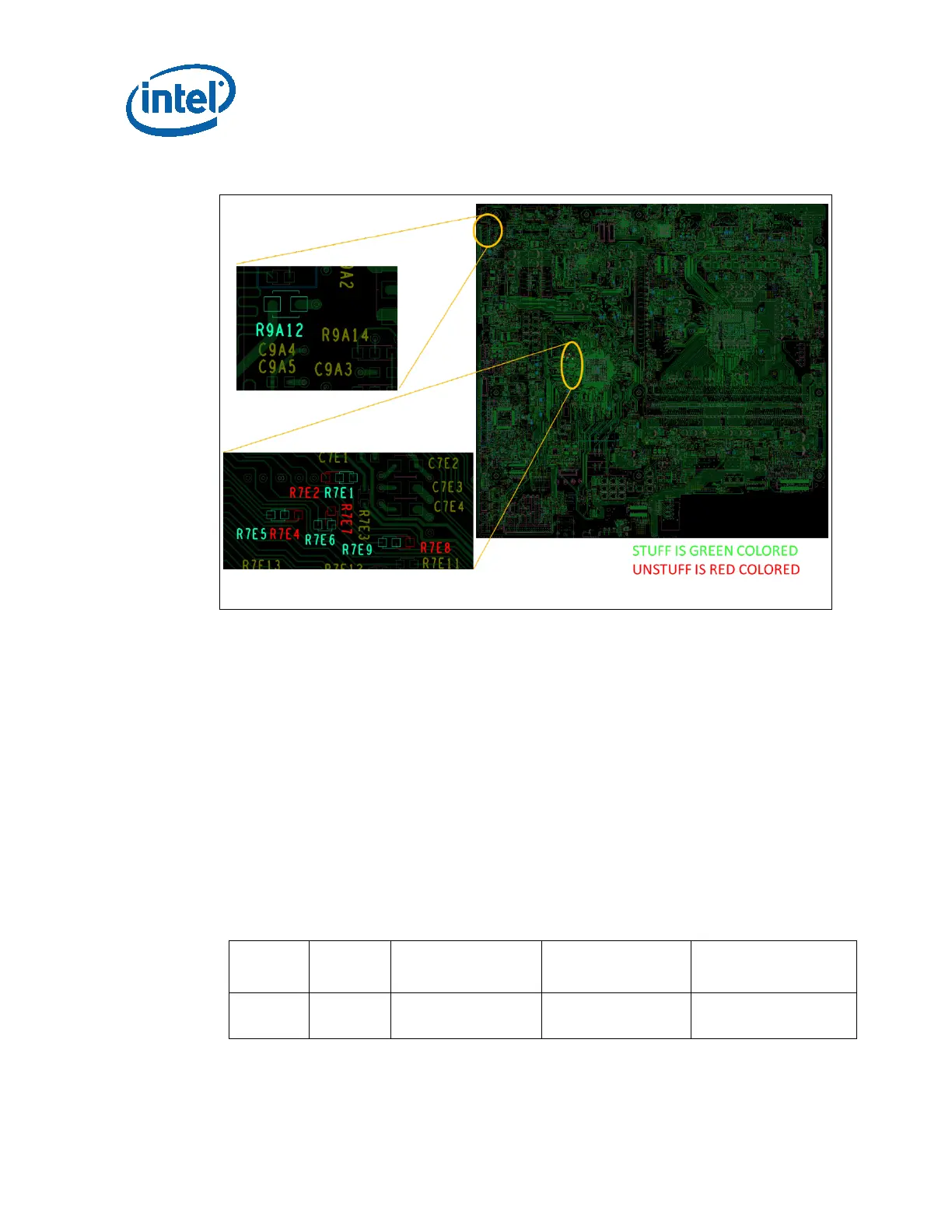

Figure 58. Layout Snapshot – Top Layer
8.2.10 Rework to Enable LPC Mode for EC and TPM Header
Description: This rework is required to enable LPC mode for EC and LPC TPM header.
Impact of implementing the rework:
EC will work in LPC mode and TPM headers
will support LPC TPM and port 80 modules. eSPI mode is disabled after this rework.
Details: SMD Resistor rework
Applicable To: H5AZ02, H6AZ05, H6AZ08, H7AZ03, H7BZ03, H7AZ05, H7AZ08,
H6AZ09, H7AZ02, H7BZ02, H7AZ04, H8AZ02, H8AZ03, U17612, H7AZ07, H8AZ04,
H7BZ06, H3BZ02, H6AZ04, H7AZ06, H9AZ02, I1AZ01, I2AZ02, I2AZ04, I1AZ02,
I3AZ03, I3AZ05, I4BZ01, I5AZ01, I3AZ04.
Table 12. Rework Detail
Action Item RefDes Description of
Existing Part
Description of New
Part
Un-Stuff Resistor R8G50, R9F40,
R9F38, R8F7, R7E44
0 Ohm, 5%, 402
NA
