Reworks

50 Intel Confidential User Guide

8.2.3 Rework to Enable CNVi Module

Description: Rework to enable the CNVi modules like JfP on CFL-S RVP

Impact of implementing the rework:

CNVi modules will only work after this

rework. The board gets stuck at EC02 without this rework and the CNVi module

plugged in

Details: Resistor unstuff and bluewiring.

Applicable To: H3AZ01, H3AZ02, H4BZ01, H5AZ02, H3BZ02

Table 5. Rework Detail

Action Item RefDes Description of Existing

Part

Description of New

Part

Un-Stuff Resistor R7B9 0.01, 1/10W, 1%, 0603 NA

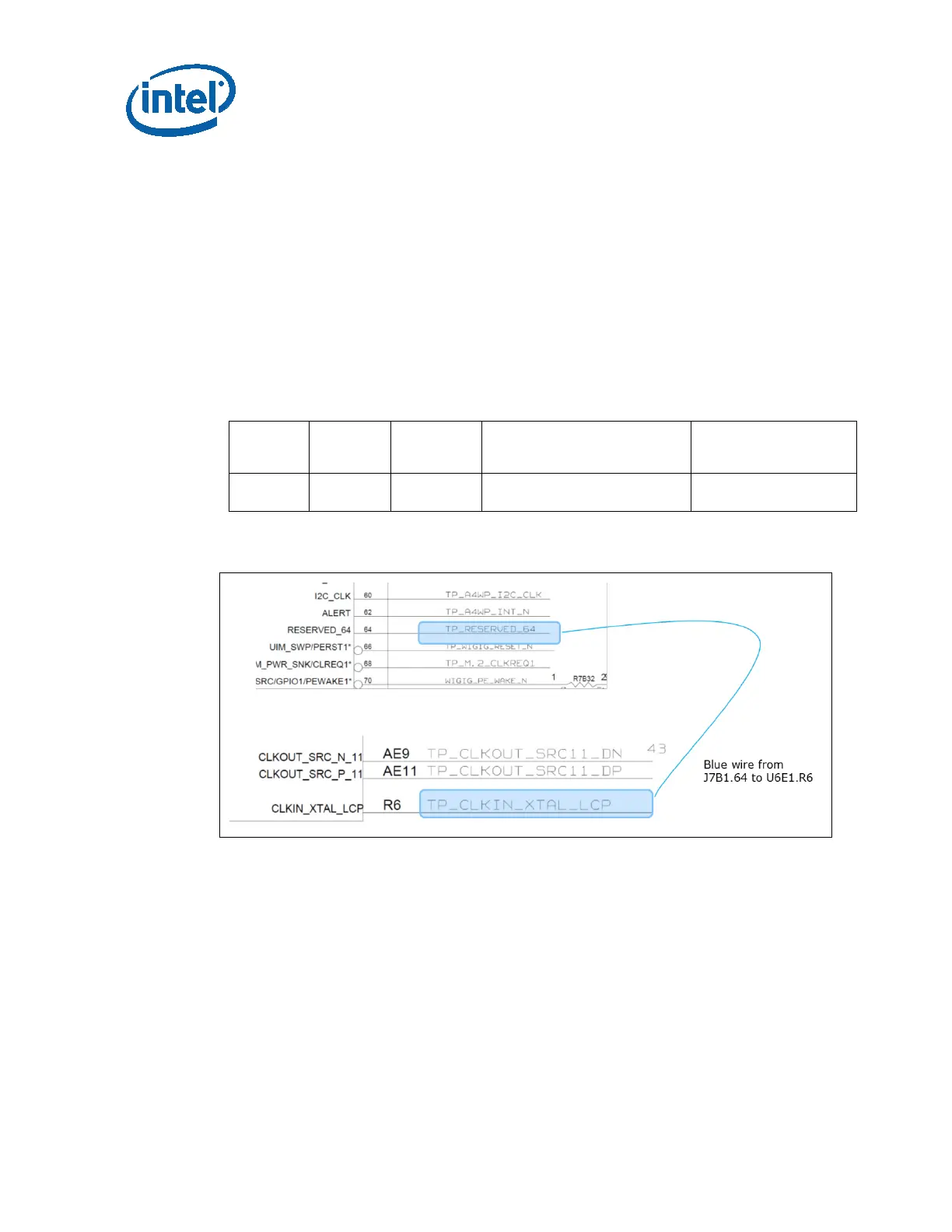

Figure 31. Schematic Snapshot
