Reworks

44 Intel Confidential User Guide

Applicable To: H3AZ01, H3AZ02, H4BZ01, H5AZ02, H6AZ05, H6AZ08, H7AZ03,

H7BZ03, H7AZ05, H7AZ08, H6AZ09, H7AZ02, H7BZ02, H7AZ04, H8AZ02, H8AZ03,

U17612, H7AZ07, H8AZ04, H7BZ06, H3BZ02, H6AZ04, H7AZ06, H9AZ02, I1AZ01,

I2AZ02, I2AZ04, I1AZ02, I3AZ03, I3AZ05, I4BZ01, I5AZ01, I3AZ04.

Table 3. Rework Detail

Action Item RefDes Description of Existing

Part

Description of New

Part

Stuff Resistor R6D69,

R6D66,

R6E1,

R6E4,

R6B26,

R6B23,

R6B20

0 Ohm, 5%, 402

Un-Stuff Resistor R6D68,

R6D67,

R6E2,

R6E3,

R6B25,

R6B24

0 Ohm, 5%, 402

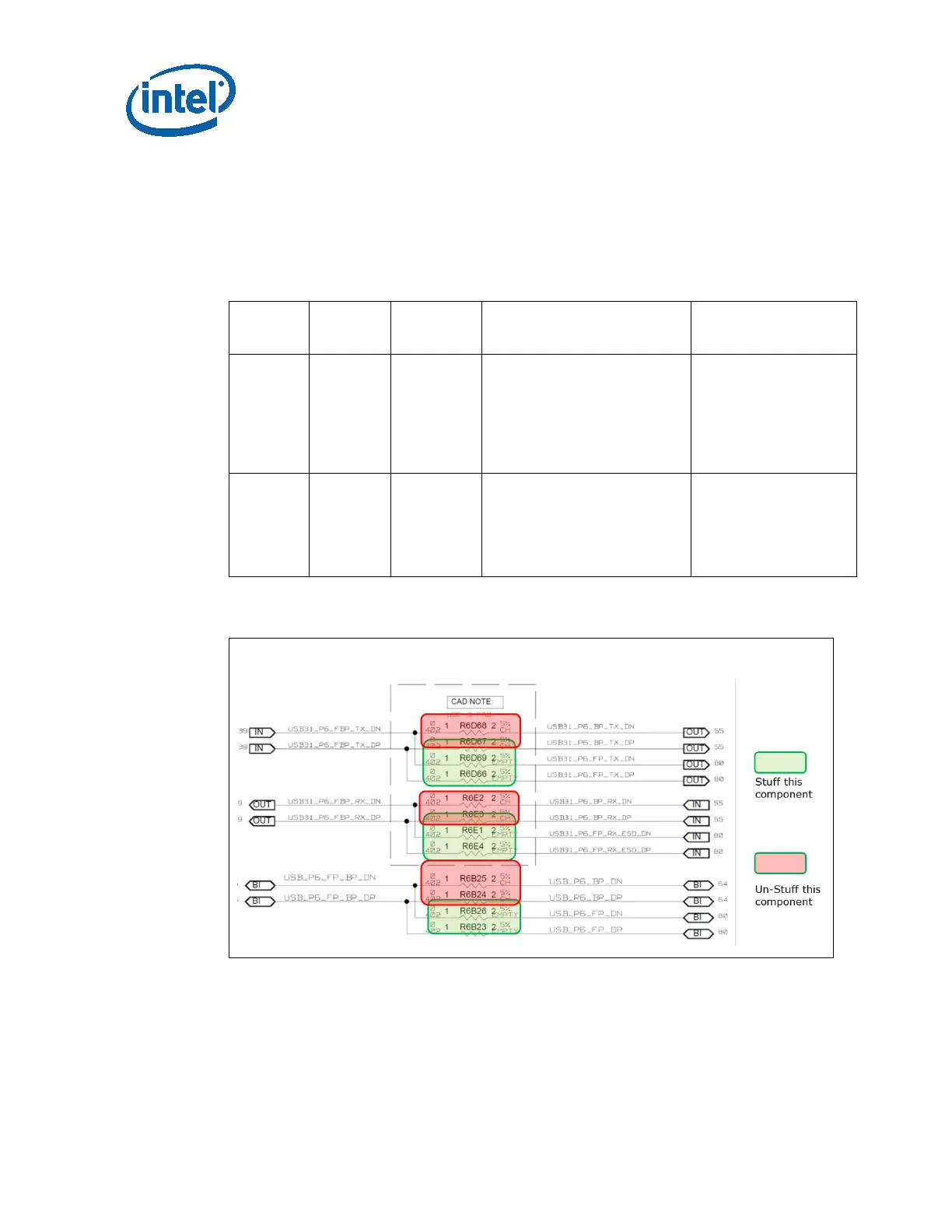

Figure 24. Schematic Snapshot
