8.3.2 Rework to Enable Titan Ridge and PD’s Flash

Description: This rework is to change the flash supply’s voltage from Titan ridge’s

LDO to PD’s LDO

Impact of implementing the rework: We expect PD controller to fetch the flash

first and later the Titan ridge fetches the same.

Details: SMT Resistor rework.

Applicable To: H3AZ01, H3AZ02, H3BZ02

Table 16. Rework Detail

Action Item RefDes Description of Existing

Part

Description of New

Part

Stuff Resistor R5A17 NA

0Ohm, 1%, 402,

1/16W

Un-Stuff Resistor R5L28 0Ohm, 5%, 402, 1/16W

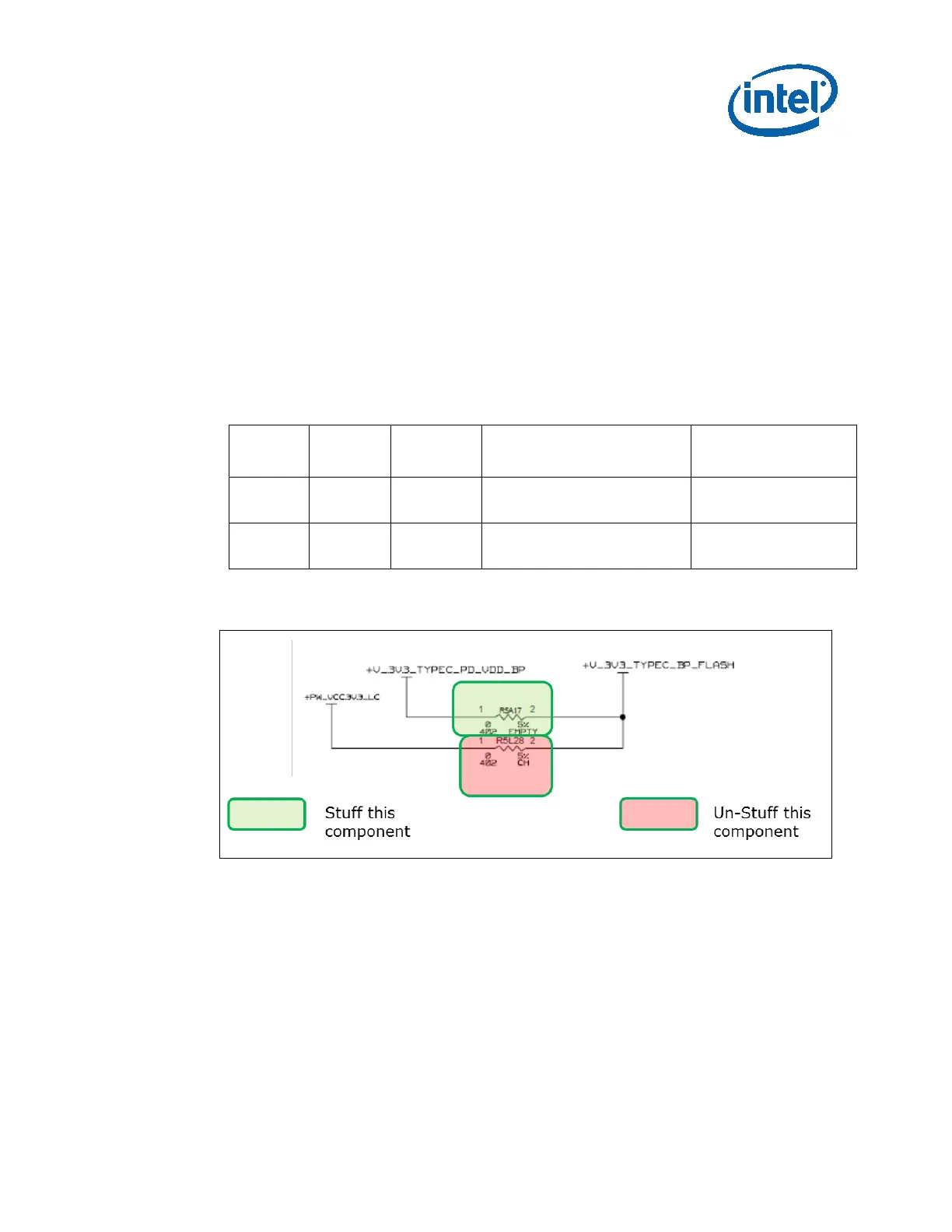

Figure 74. Schematic Snapshot
